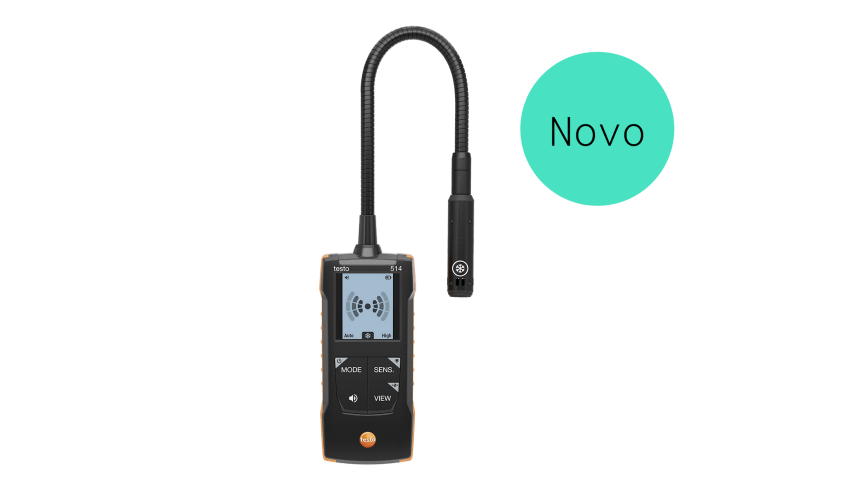

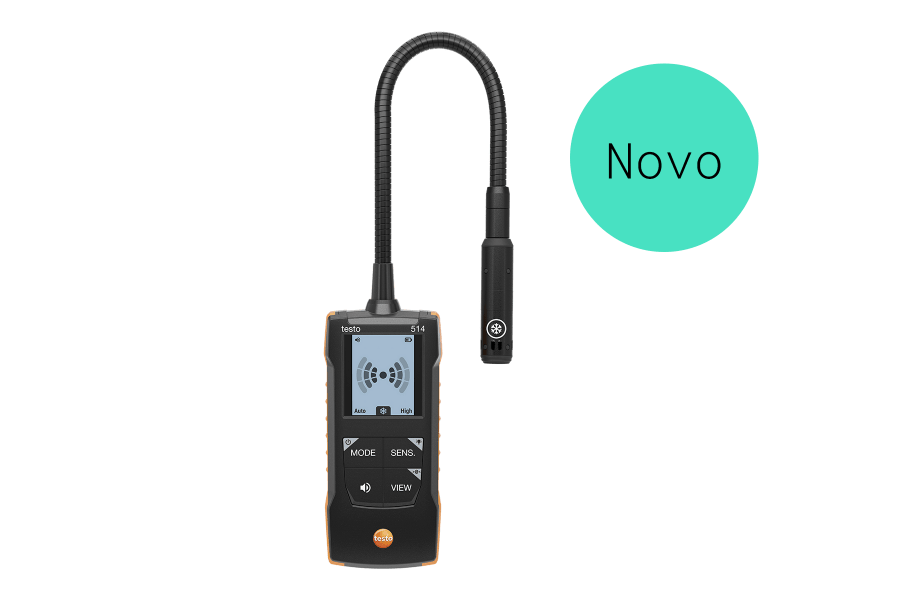

testo 514 - Refrigerant leak detector with flexible probe

Detetor de vazamentos testo 514
testo 514
testo 514
testo 514
testo 514
testo 514
testo 514
testo 514
testo 514
testo 514
testo 514

The testo 514 is a reliable, easy‑to‑use detector for pinpointing even the smallest refrigerant leaks in AC/R systems.

With 3 g/a sensitivity and testing according to DIN EN 14624, it meets EU F‑Gas requirements while delivering precise results.

Ready to use immediately without selecting a refrigerant type, and featuring a replaceable sensor, it ensures efficient work with minimal downtime.

  • High sensitivity - Sensitivity of 3 g/a enables detection of the smallest leaks
  • Fast - Leak detection with response time < 2 sec
  • One for all - Detects all common refrigerants
  • Convenient - Leak detection via flexible and robust gooseneck
  • Easy & reliable - Selectable display modes (numeric & bar graph) for clear leak detection

The testo 514 is an easy-to-use and reliable refrigerant leak detector designed for the detection of representative refrigerants and tested in accordance with DIN EN 14624 for AC/R systems. With a high sensitivity of 3 g/a, it detects even the smallest leaks and complies with the requirements of the EU F-Gas Regulation. The device is ready for use immediately after switching on, without having to select a refrigerant characteristic. Thanks to the replaceable refrigerant sensor, downtime is virtually eliminated.

Dados técnicos gerais

Umidade de operação
10 a 80 %rF
Dados técnicos invisíveis (instrumentos)
296 g
Pes
1 ppm
Dimensões
135 x 60 x 28 mm (LxWxH)
Temperatura de operação
-10 a +50 °C
Parâmetros de deteção
ppm
Tempo de resposta
< 2 seg
Detectável
HCFC, HFC, HFO, HCFO, HC (R290), e misturas
Tempo de vida do sensor
2 años en condiciones normales de uso
Sensibilidade
14 g/a – Baja; 3 g/a – Alta
Comprimento do eixo da sonda
330 mm
Durabilidade
10 h
Tipo de bateria
3 pilhas alcalinas AA
Temperatura de armazenagem
-20 a +60 °C
  • Refrigeration sensor
  • Bag
  • Batteries
  • Protection Cap
