Encomenda nº 0572 3190
Integration of many additional measurement parameters
Standardised interfaces for easy integration
High-speed data transmission over the existing network
High level of data security thanks to built-in rechargeable batte
Acoplador analógico Ethernet com 1 entrada corrente/voltagem, sem visor
The testo Saveris U1 E Ethernet probe / analog coupler allows the inclusion of other measurement parameters in the testo Saveris monitoring system, by integrating all transmitters with standardised current/voltage interfaces (e.g. 4 to 20 mA or 0 to 10 V).
This is the solution for highest accuracy, for special applications (high humidity, trace humidity, etc.) in compressed air, drying and air conditioning technology as well as in cleanroom applications.
The Ethernet probe / analog coupler has a data memory for 6,000 readings.
This instrument requires a power supply unit (not included).

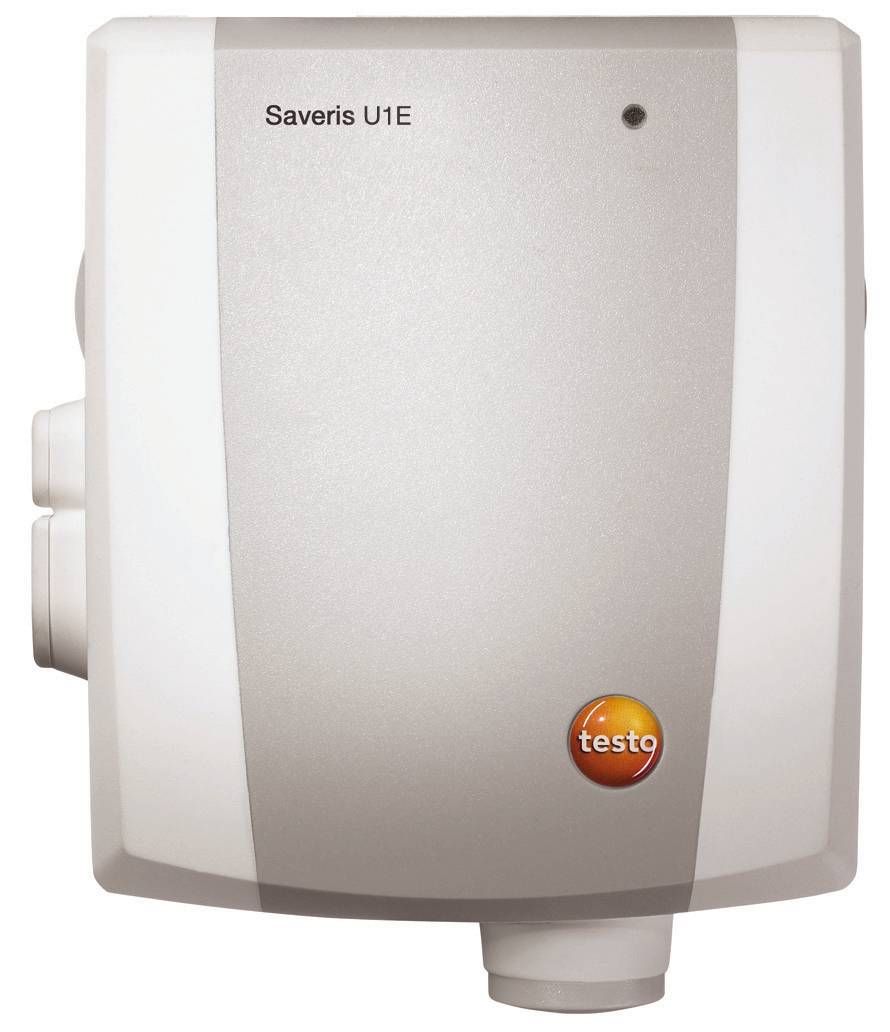

testo Saveris U1 E Ethernet probe with a current/voltage input.
| Dados técnicos gerais | |
|---|---|
Dimensões |
85 x 100 x 38 mm |
Temperatura de operação |
+5 a +45 °C |
Carcaça |
Plastico |
Classe de proteção |
IP54 |
Suporte de parede |
incluso |
Consumo de energia |
PoE Class 0 (typical ≤ 3 W) |
Taxa de medição |
2 s to 24 h |
Conexão |
1 x 2- or 4-wire current/voltage |
Fonte de energia |
6.3 V DC mains unit; alternatively via 24 V AC/DC plug-in/screw terminals, PoE |
Memória |
6.000 valores medidos / canal |
Tipo de bateria armazenada |
Li-ion (wearing part) |
Temperatura de armazenagem |
-25 a +60 °C |
Peso |
240 g |
