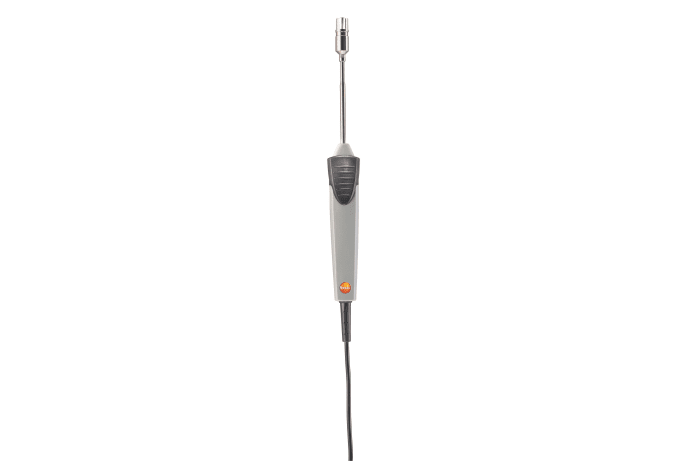

Fast-action surface probe (TC type K)

Order-Nr.  0602 0393

  • Fast response time (3 seconds) thanks to the thermocouple strip

  • Thermocouple type K

  • Also suitable for uneven surfaces

  • Measuring range short-term up to +500°C

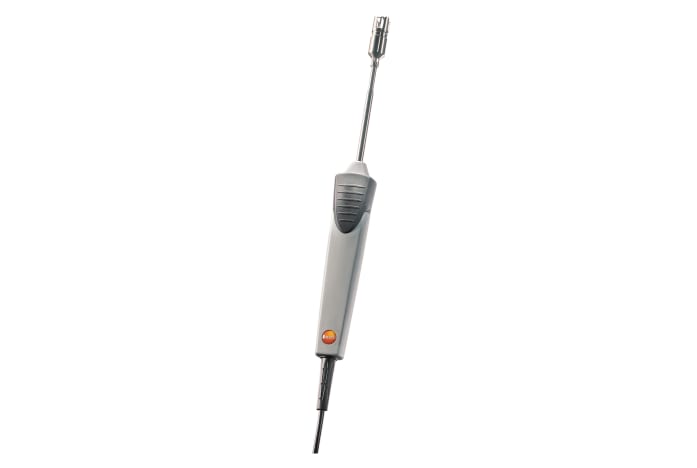

The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.

€ 111,00
€ 135,42 z DDV-om

Product Description

The surface temperature probe (thermocouple type K) features a thermocouple strip, which guarantees a fast response time and enables measurements to be carried out on uneven surfaces.

It has a very large measuring range and can be used for many different applications:
  • Detection of thermal bridges in walls
  • Maintenance and checking of machinery
  • Process monitoring of production steps
  • Adjustment of heating systems (radiators, pipes, boilers)
  • Quality checks



Delivery Scope

Fast-action surface probe (TC type K) with fixed cable 1.2 m.
Temperature - TC Type K (NiCr-Ni)

Measuring range

-60 to +300 °C

Accuracy

Class 2 ¹⁾

Reaction time

3 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

General technical data

Length probe shaft

115 mm

Fixed cable

yes

Cable length

1,2 m

Diameter probe shaft tip

12 mm

Diameter probe shaft

5 mm
