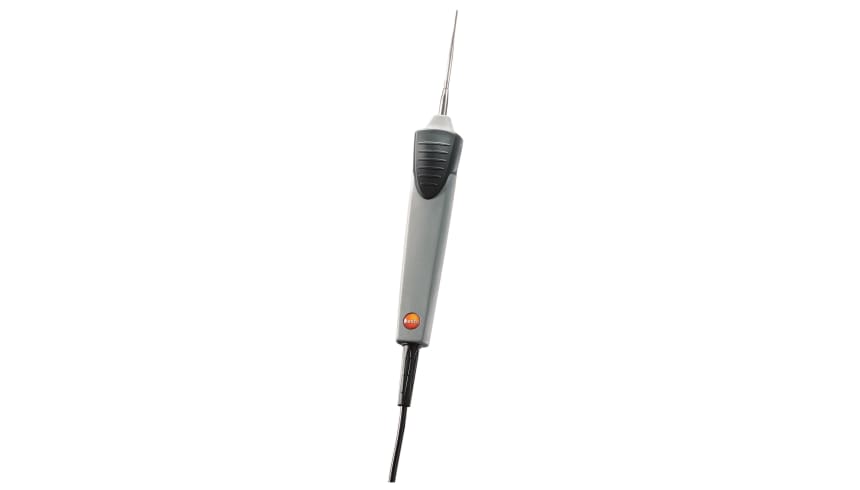

Fast-action immersion/penetration probe (TC type K)
0602 2693
Fast-action immersion/penetration probe (TC type K)
Fast-action temperature probe with penetration tip – ideal for temperature measurements in pastes and semi-solid media, in liquids and in the air.
1.5 mm thin probe tip for fast temperature recording, 60 mm long probe shaft
Very short response time of 3 seconds
Measuring range: -60 to +800 °C
Splash-proof in accordance with IP54
€ 139,00 € 169,58
The immersion and penetration probe (thermocouple type K) is used primarily for measurements in water, to ensure that heating systems are configured correctly.
The very slim probe tip guarantees fast temperature recording. The probe reacts really quickly, with a response time of three seconds. In addition, the probe is splash-proof in accordance with protection class IP54.
Temperature - TC Type K (NiCr-Ni)
Temperature - TC Type K (NiCr-Ni)
Measuring range
−60 to +800 °C
Accuracy
Class 1 ¹⁾
Reaction time
3 s
1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).
General technical data
General technical data
Weight
150 g
Product-/housing material
Plastic
Protection class
IP54
Product colour
grey; Black; silver
Length probe shaft tip
14 mm
Diameter probe shaft
5 mm
Diameter probe shaft tip
1,5 mm
Cable length
1,5 m
Length probe shaft
60 mm
Fast-action immersion/penetration probe (TC type K) with fixed cable 1.2 m.
