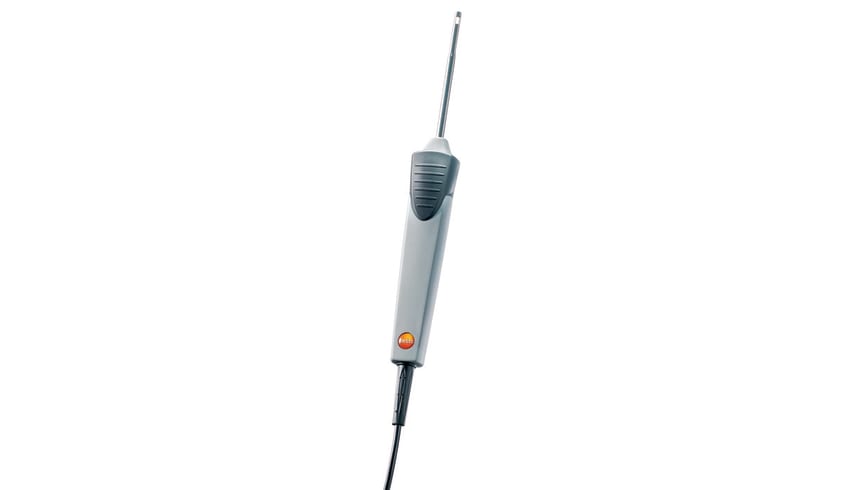

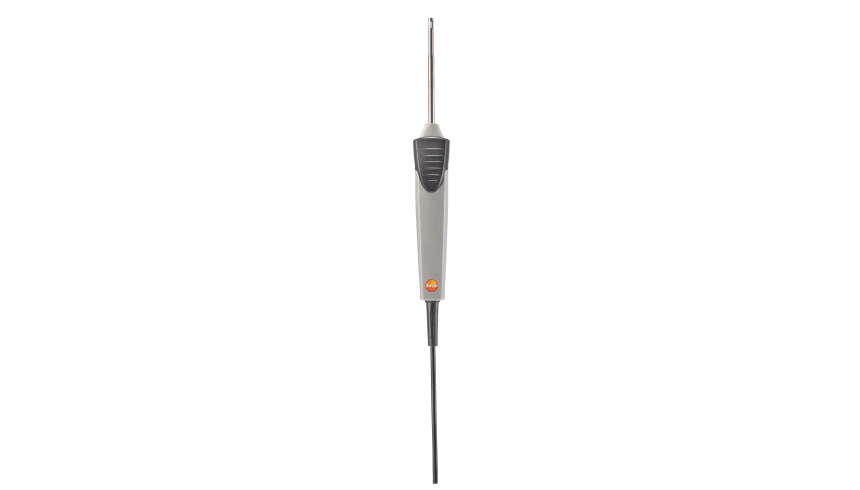

Robust air temperature probe (TC type K)
0602 1793Robust air temperature probe (TC type K)
0602 1793Thermocouple type K
Short response time thanks to the exposed sensor
Can be connected to a wide range of measuring instruments
Measuring range: -60 to +400 °C
Use the robust air temperature probe with exposed sensor (thermocouple type K) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.
1 x robust air temperature probe (TC type K) with fixed cable.
Temperature - TC Type K (NiCr-Ni)
| Measuring range | −60 to +400 °C |
|---|---|
| Accuracy | Class 2 ¹⁾ |
| Reaction time | 25 s |
| 1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C. | |
General technical data
| Weight | 112 g |
|---|---|
| Dimensions | length: 255 mm |
| Length probe shaft tip | 50 mm |
| Diameter probe shaft | 5 mm |
| Diameter probe shaft tip | 4 mm |
| Cable length | 1,16 m |
| Length probe shaft | 115 mm |
| Product colour | grey |
| Interface | plug thermocouple |
