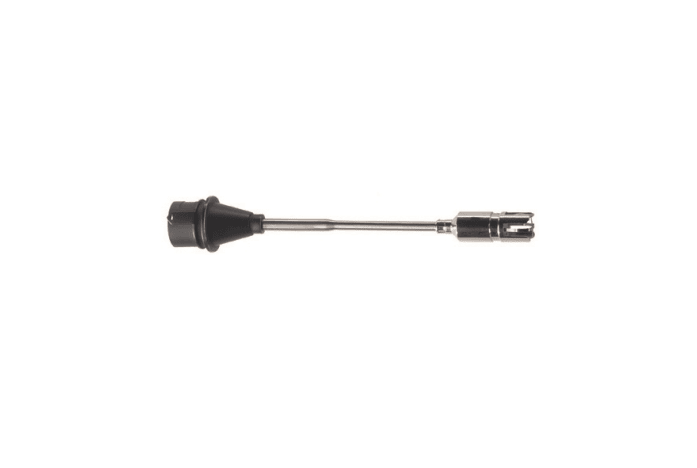

T/C probe head for surface measurement (T/C Type K)
Wireless handle (0554 0189) and wireless module (0554 0188) are required to use a radio probe, and these can be ordered optionally.
T/C probe head for surface measurement (T/C Type K)
Order-Nr. 0602 0394
Podobni izdelki
Technical Data
Temperature - TC Type K (NiCr-Ni) | |
---|---|
Measuring range |
−50 to +350 °C Short-term to: +500 °C |
Accuracy |
Radio handle: ±(0,5 °C + 0,3 % of mv) (−40 to +500 °C) ±(0,7 °C + 0,5 % of mv) (Remaining Range) T/C probe head: Class 2 |
Resolution |
0,1 °C (−50 to +199,9 °C) 1,0 °C Remaining Range |
Reaction time |
5 s |
General technical data | |
---|---|
Length probe shaft tip |
40 mm |
Diameter probe shaft |
5 mm |
Diameter probe shaft tip |
12 mm |
Length probe shaft |
120 mm |
Accessories
Accessories
Radio handle for plug-in probe heads, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO
Order Number: 0554 0189
€ 105,00
z DDV-om
€ 128,10
Certificates
ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C
Order Number: 0520 0071
ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C
Order Number: 0520 0072
ISO temperature calibration certificate for surface probes; with 1 measuring point: +120 °C
Order Number: 0520 0073
