testo 400 air flow kit with 16 mm vane probe

testo 400 air flow kit with 16 mm vane probe

testo 400 air flow kit with hot wire probe

0563 0400 74

testo 400 air flow kit with 16 mm vane probe

Ideal kit for IAQ professionals, with a focus on air flow measurement. You will receive the testo 400 universal IAQ measuring instrument with intuitive measurement menus, one vane probe head (Ø 16 mm), one vane probe head (Ø 100 mm) and one high-precision humidity/temperature probe head – all three can be attached to the Bluetooth^® handle supplied. For measurements at ceiling outlets, simply combine the 100 mm vane probe with the telescope (can be extended up to 1.0 m) and the 90° angle.

Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor
Smart, intuitive measurement programs, complete your measurement with full documentation on site at the customer’s premises or carry out further analysis using the testo DataControl measurement data management and analysis software

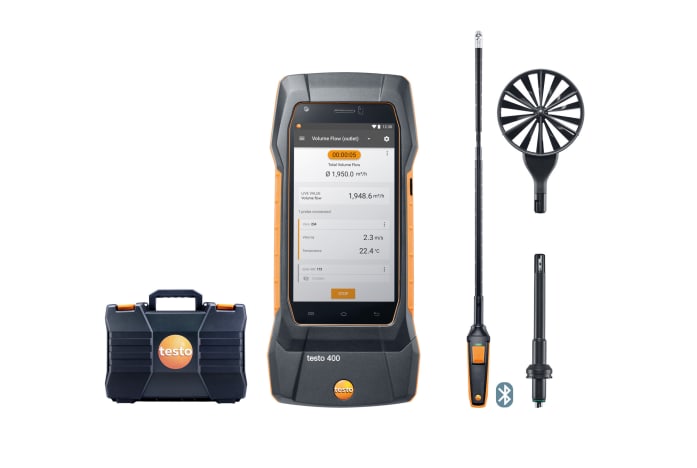

In the kit: testo 400 universal IAQ instrument, 16 mm vane probe (with Bluetooth^® handle and telescope), vane probe head (Ø 100 mm), high-precision humidity/temperature probe head, 90° angle, case

: 0635 9571

Vane probe (Ø 16 mm, digital) - with Bluetooth^®, including temperature sensor

Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature

: 0635 9430

100 mm vane probe head

Intuitive: parallel determination of air velocity, volume flow and air temperature

: 0636 9770

High-precision humidity/temperature probe head

Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement

90° angle for the attachment of vane probes (Ø 100 mm) with universal handle

: 0554 0991

90° angle for connecting vane probes (Ø 100 mm)

Position 100 mm vane probes with universal handle correctly at ceiling outlets

: 0516 1400

Transport case for air flow measurements

Sturdy plastic case

Vane probe (Ø 16 mm, digital) - with Bluetooth^®, including temperature sensor

0635 9571

Temperature - NTC

Temperature - NTC	Measuring range −10 to +70 °C
	Accuracy ±1,8 °C
	Resolution 0,1 °C

Velocity / Volume flow

Velocity / Volume flow	Measuring range 0,6 to 50 m/s
	Accuracy ±(0,2 m/s + 1 % of mv) (0,6 to +40 m/s) ±(0,2 m/s + 2 % of mv) (40,1 to 50 m/s)
	Resolution 0,1 m/s

General technical data

General technical data	Storage temperature -20 to +60 °C
	Weight 425 g
	Dimensions 790 x 50 x 40 mm
	Operating temperature -5 to +50 °C
	Length probe shaft 230 mm
	Diameter probe shaft 16 mm
	Length telescope 1.000 mm
	Probe head diameter 16 mm
	Product colour black/orange
	Battery type 4 x type AA batteries
	Battery life 70 h
	Data transfer Bluetooth®
	Radio range 20 m

100 mm vane probe head

0635 9430

Temperature - NTC

Temperature - NTC	Measuring range −20 to +70 °C
	Accuracy ±0,5 °C
	Resolution 0,1 °C

Velocity / Volume flow

Velocity / Volume flow	Measuring range 0,3 to 35 m/s
	Accuracy ±(0,2 m/s + 1,5 % of mv) (20,01 to 35 m/s) ±(0,1 m/s + 1,5 % of mv) (0,3 to 20 m/s)
	Resolution 0,01 m/s

General technical data

General technical data	Storage temperature −20 to +70 °C
	Weight 125 g
	Dimensions 180 x 105 x 46 mm
	Operating temperature −20 to +70 °C
	Probe head diameter 100 mm
	Product colour Black

High-precision humidity/temperature probe head

0636 9770

Temperature - NTC

Temperature - NTC	Measuring range −20 to +70 °C
	Accuracy ±0,3 °C (+15 to +30 °C) ±0,5 °C (Remaining Range)
	Resolution 0,01 °C

Humidity - Capacitive

Humidity - Capacitive	Measuring range 0 to 100 %RH
	Accuracy ±(0,6 %RH + 0,7 % of mv) (0 to 90 %RH) ±(1,0 %RH + 0,7 % of mv) (90 to 100 %RH) long-term stability: ±1 %RH / year ±0,03 %RH/K (k=1) Hysteresis: ±0,4 %RH
	Resolution 0,01 %RH

General technical data

General technical data	Storage temperature −20 to +70 °C
	Weight 20 g
	Dimensions 160 x 28 x 28 mm
	Operating temperature −20 to +70 °C
	Diameter probe shaft 12 mm
	Length probe shaft 140 mm
	Product colour Black

90° angle for connecting vane probes (Ø 100 mm)

0554 0991

General technical data

General technical data	Weight 25 g
	Dimensions 65 x 65 x 15 mm
	Product colour Black

Transport case for air flow measurements

0516 1400

General technical data

General technical data	Weight 2800 g
	Dimensions 520 x 410 x 160 mm LxWxH
	Product-/housing material Plastic
	Product colour Black

testo 400 universal IAQ instrument, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual (0560 0400)
Vane probe with Bluetooth^® including temperature sensor (consisting of 16 mm vane probe head, handle adapter and Bluetooth^® handle), 4 x AA batteries, telescope (can be extended up to 1.0 m) and calibration protocol (0635 9571)
Vane probe head (Ø 100 mm) including temperature sensor, bracket for testovent measurement funnel and calibration protocol (0635 9430)
High-precision humidity/temperature probe head including calibration protocol (0636 9770)
Please do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges
> 80% RH at ≤ 30 °C for > 12 h
> 60% RH at > 30 °C for > 12 h
Please get in touch with Testo Service or contact us via the Testo website
90° angle for connecting vane probes (Ø 100 mm) (0554 0991)
Transport case for air flow measurements (0516 1400)

Data sheet testo 400 air flow kit with 16 mm vane probe(702.2 KB)

Accessories

: 0554 0990

Telescope extension (length 0.4 to 0.9 m) for flow probes

Telescope extension from 0.4 to 0.9 m long

€ 243,00 € 296,46

: 0554 1111

Universal Bluetooth® handle for connecting probe heads

Transmit readings conveniently via Bluetooth

€ 119,00 € 145,18

: 0554 2222

Universal cable handle for connecting probe heads

Transmit readings via cable

€ 81,00 € 98,82

: 0554 2160

Handle adapter for connection to flow probes

For connecting probe heads for air velocity probes or extendable telescope for air velocity probes to the universal handle with Bluetooth or cable

€ 63,00 € 76,86

: 0554 0960

Extendable telescope (up to 1 m in length) for flow probes

The telescope is 1.0 m long when extended

€ 172,00 € 209,84

: 0554 0991

90° angle for connecting vane probes (Ø 100 mm)

Position 100 mm vane probes with universal handle correctly at ceiling outlets

€ 63,00 € 76,86

Certificates

: 0520 0004

ISO flow calibration certificate - with 4 measuring points

4 calibration points: 1 / 2 / 5 / 10 m/s

: 0520 0034

ISO flow calibration certificate - with 4 measuring points

4 calibration points: 5 / 10 / 15 / 20 m/s

: 0520 0204

DAkkS flow calibration certificate - with 5 measuring points

5 calibration points: 2 / 5 / 10 / 15 / 20 m/s

: 0520 0104

ISO calibration certificate/velocity - with selectable measuring points

Calibration points freely selectable in the range 0.5 to 27 m/s

: 0520 0254

DAkkS calibration certificate/velocity - with 3 measuring points

3 calibration points: 2.5 / 5 / 10 m/s

: 0520 0006

ISO humidity calibration certificate - with 2 measuring points

2 calibration points: 11.3 and 75.3 %RH at +25°C

Sensor heads

: 0635 9570

16 mm vane probe head including temperature sensor

Intuitive: parallel determination of flow velocity, volume flow and temperature

€ 628,00 € 766,16

: 0635 9370

High-precision 100 mm vane probe head including temperature sensor

Intuitive: parallel determination of air velocity, volume flow and air temperature

€ 780,00 € 951,60

: 0635 9430

100 mm vane probe head

Intuitive: parallel determination of air velocity, volume flow and air temperature

€ 353,00 € 430,66

: 0635 1570

Hot wire probe head including temperature and humidity sensor

Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement

€ 585,00 € 713,70

: 0636 9730

Humidity/temperature probe head

Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement

€ 106,00 € 129,32

: 0636 9770

High-precision humidity/temperature probe head

Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement

€ 434,00 € 529,48
