testo 400 IAQ and comfort kit with tripod
0563 0401 01
testo 400 IAQ and comfort kit with tripod
Ideal kit for IAQ professionals, with a focus on indoor air quality and comfort level. You will receive the testo 400 universal IAQ measuring instrument with intuitive measurement menus, one CO₂ probe (with Bluetooth® handle), one turbulence probe and one globe thermometer Ø 150 mm (both with fixed cable). Use the measuring tripod to ensure standard-compliant positioning of the probes. In combination with the IAQ data logger, which is available to order separately, long-term measurements up to 2 weeks can be recorded, even without the IAQ measuring instrument.
- Standard-compliant determination of the comfort level: PMV and PPD as well as draught and turbulence as per EN ISO 7730 and ASHRAE 55
- Monitor the indoor air quality: Determination of CO2 concentration, humidity, air temperature and turbulence in workplaces, including long-term measurements
- Smart, intuitive measurement programs, complete your measurement with full documentation on site at the customer’s premises or carry out further analysis using the testo DataControl measurement data management and analysis software

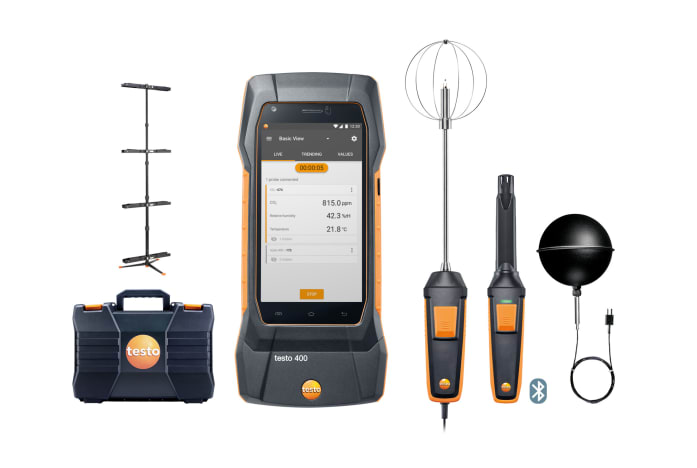

- In the kit: testo 400 universal IAQ instrument, CO2 probe (with Bluetooth® handle), turbulence probe with cable, globe thermometer (Ø 150 mm) with cable, measuring tripod with bag, case
Temperature - NTC
Temperature - NTC | Measuring range 0 to +50 °C |
|---|---|
Accuracy ±0,5 °C | |
Resolution 0,1 °C | |
Humidity - Capacitive
Humidity - Capacitive | Measuring range 5 to 95 %RH |
|---|---|
Accuracy ±0,06 %RH/K (0 to +50 °C) long-term stability: ±1 %RH / year ±3 %RH (10 to 35 %RH) Hysteresis: ±1,0 %RH ±3 %RH (65 to 90 %RH) ±5 %RH (Remaining Range) ±2 %RH (35 to 65 %RH) | |
Resolution 0,1 %RH | |
Absolute Pressure
Absolute Pressure | Measuring range +700 to +1100 hPa |
|---|---|
Accuracy ±3,0 hPa | |
Resolution 0,1 hPa | |
Ambient CO₂
Ambient CO₂ | Measuring range 0 to 10000 ppm |
|---|---|
Accuracy ±(100 ppm + 5 % of mv) (5001 to 10000 ) ±(50 ppm + 3 % of mv) (0 to 5000 ) | |
Resolution 1 ppm | |
General technical data
General technical data | Storage temperature −20 to +60 °C |
|---|---|
Weight 195 g | |
Dimensions 295 x 50 x 40 mm | |
Operating temperature −5 to +50 °C | |
Length probe shaft 130 mm | |
Probe head diameter 30 mm | |
Product colour black/orange | |
Battery life 21,5 h | |
Battery type 4 x type AA batteries | |
Data transfer Bluetooth® | |
Radio range 20 m | |
General technical data
General technical data | Storage temperature −20 to +60 °C |
|---|---|
Weight 250 g | |
Dimensions 400 x 90 x 90 mm | |
Operating temperature 0 to +50 °C | |
Cable length 1,4 m | |
Probe head diameter 820 mm | |
Product colour black/orange | |
Standards EN ISO 7730 / ASHRAE 55 | |
Temperature - NTC
Temperature - NTC | Measuring range 0 to +50 °C |
|---|---|
Accuracy ±0,5 °C | |
Resolution 0,1 °C | |
Absolute Pressure
Absolute Pressure | Measuring range +700 to +1100 hPa |
|---|---|
Accuracy ±3,0 hPa | |
Resolution 0,1 hPa | |
Velocity - Hot wire
Velocity - Hot wire | Measuring range 0 to 5 m/s |
|---|---|
Accuracy ±(0,03 m/s + 4 % of mv) | |
Resolution 0,01 m/s | |
Temperature - TC Type K (NiCr-Ni)
Temperature - TC Type K (NiCr-Ni) | Measuring range 0 to +120 °C |
|---|---|
Accuracy Class 1 ¹⁾ | |
| 1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K). | |
General technical data
General technical data | Weight 385 g |
|---|---|
Dimensions 250 x 150 x 150 mm | |
Cable length 1,4 m | |
Emissivity 0,95 | |
Probe head diameter 150 mm | |
Product colour Black | |
General technical data
General technical data | Weight 5100 g |
|---|---|
Dimensions 730 x 220 x 245 mm ((LxWxH)) | |
Product colour Black | |
General technical data
General technical data | Weight 3250 g |
|---|---|
Dimensions 520 x 410 x 210 mm LxWxH | |
Product-/housing material Plastic | |
Product colour Black | |
- testo 400 universal IAQ instrument, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual (0560 0400)
- CO2 probe with Bluetooth® including temperature and humidity sensor (consisting of CO2 probe head and Bluetooth® handle), 4 x AA batteries, table stand and calibration protocol (0632 1551) Please do not use the probe in condensing atmospheres. For continuous application in high-humidity ranges
> 80% RH at ≤ 30 °C for > 12 h
> 60% RH at > 30 °C for > 12 h
Please get in touch with Testo Service or contact us via the Testo website - Turbulence probe with fixed cable and calibration protocol (0628 0152)
- Globe thermometer (Ø 150 mm, TC type K) with fixed cable (0602 0743)
- Measuring tripod for comfort level measurements, consisting of a folding stand, mounting rod, handheld instrument holder, 4 x probe mounts, including bag (0554 1591)
- Transport case for IAQ and comfort level measurements (0516 2400)
