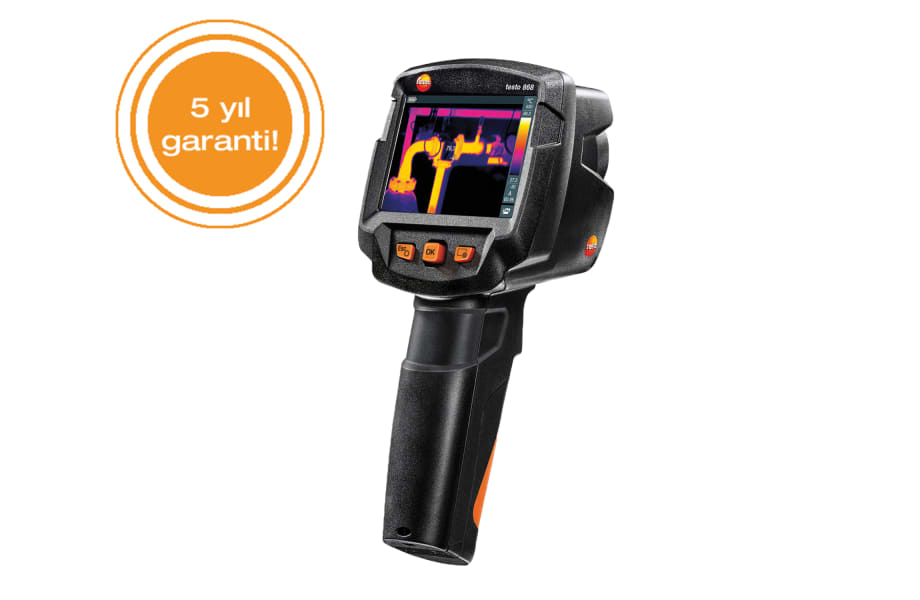

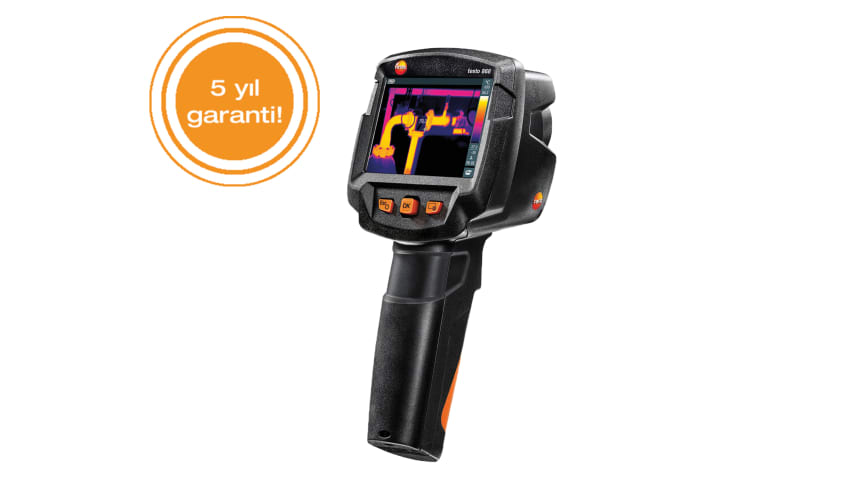

testo 868 - mobil uygulamalı termal kamera

Detecting structural defects and ensuring building quality (also for images of the building shell)

Analysis with the Testo thermal imager is a fast and efficient method of detecting possible structural defects. Furthermore, the thermal imager is also ideally suited for providing proof of the quality and correct implementation of construction measures. Any heat losses, humidity and lack of air tightness arising in a building are visible in the thermal image. The Testo thermal imager offers the possibility of detecting structural damage and implementation defects in the thermal insulation – all using a non-contact method! The testo ScaleAssist function, which automatically ensures optimum setting of the thermal image scale, means you get objectively comparable thermal images of buildings. This makes correct assessment of structural defects and thermal bridges easier than ever before. Detecting insulation defects and thermal bridges in the building shell is one of the typical applications.

Carrying out detailed energy consultancy

In building thermography, infrared technology is ideally suited for the fast and effective analysis of energy losses in the heating or air conditioning of buildings. Thanks to its high temperature resolution, the thermal imager provides detailed images of inadequate insulation and thermal bridges. It is impressive in terms of recording and documenting energy losses on outer windows and doors, roller blind casings, radiator niches, roof constructions or the entire building shell. The thermal imager is the best measuring instrument for comprehensive diagnostic and maintenance uses and always a good choice when it comes to energy consultancy.

Easy checking of heating systems and installations

Heating, ventilation and air conditioning systems can be quickly and reliably checked thanks to the easy and intuitive operation of the Testo thermal imager. Just a quick look with the thermal imager is enough to discover irregularities in temperature distribution. Thermography can therefore be used to easily locate clogged radiators and leaks.

Typical applications for the thermal imager:


• Pinpointing the course of heating loops in an underfloor heating system
• Checking radiators for silting
• Measuring the flow and return temperature

Investigating moisture damage

Not every damp wall is caused by a faulty water pipe. Water can rise or penetrate due to faulty installation of rain and water run-off systems, causing wet walls. Moisture damage can also occur due to blocked drains or insufficient seepage. The thermal imager finds the cause of rising damp or penetrating rainwater straight away, thus preventing greater damage.

On the trail of a ruptured pipe

If a pipe rupture is suspected, the only solution left is often to break open entire wall or flooring areas. The thermal imager enables you to minimize damage and reduce costs, because you locate precise leaks in underfloor heating and other inaccessible pipelines. This avoids opening up walls and floors unnecessarily and considerably reduces the repair costs.
