球形探头,直径150mm,K型热电偶,用于测量辐射热 - for radiant heat

订货号  0602 0743

  • For the measurement of radiant heat according to ISO 7243, ISO 7726, DIN EN 27726 and DIN 33403

  • Thermocouple type K

  • Measuring range: 0 to + 120 °C

球形探头,直径150mm,K型热电偶,用于测量辐射热

产品描述

Thermal comfort is a crucial factor in terms of a person's physical and mental capabilities – and should be ensured through regular measurements of the individual parameters directly at the workplace.

In combination with an appropriate measuring instrument, the globe thermometer (thermocouple type K) enables standard-compliant determination and checking of the radiant heat parameter. For example, if a significant temperature difference between the ambient and globe temperature is detected, the cause could be high solar radiation through the window.

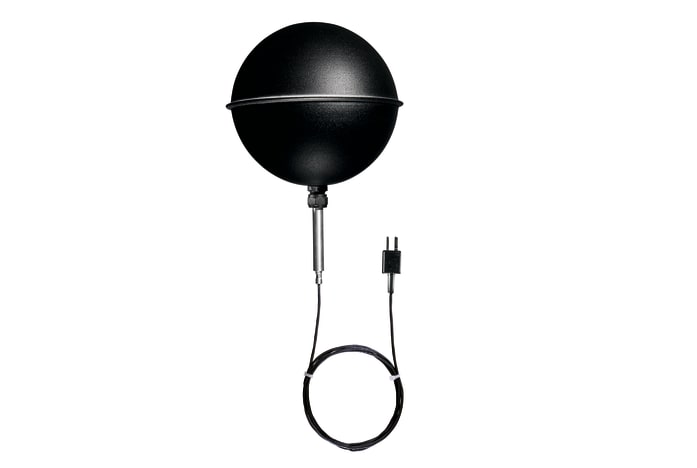

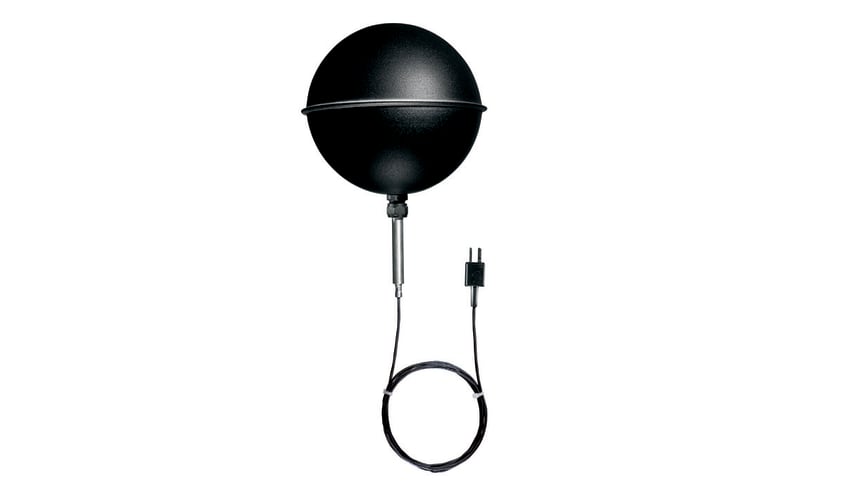

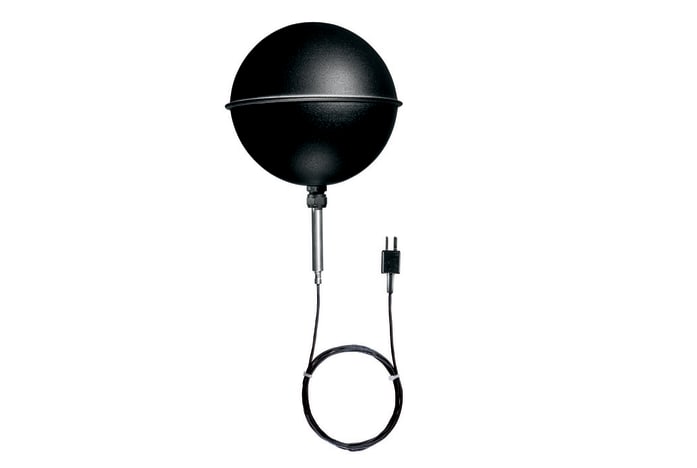

The hollow sphere has a diameter of 150 mm and there is a thermocouple type K at its centre for measuring the temperature.



产品包含

Globe thermometer (Ø 150 mm, TC type K) with 1.45 m fixed cable.
Type K (NiCr-Ni)

测量范围

0 ~ +120 °C

测量精度

1级精度 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

技术参数

重量

385 g

直径

250 x 150 x 150 mm

电缆长度

1.4 m

Emissivity

0,95

Probe head diameter

150 mm

Product colour

Black
