热线式风速探头,直径10mm,90度可弯曲,含带刻度及测量按钮的伸缩手柄,需配连接电缆0430 0100 - for flow, temperature, humidity and pressure

订货号  0635 1543

  • 4 functions in 1 probe: measurement of flow, temperature, humidity and absolute pressure

  • With robust, non-rotatable telescope (can be extended to 1100 mm)

  • Intelligent calibration concept

  • Flow measuring range: 0 to +20 m/s

热敏式风速探头,直径10mm,90度可弯曲(弯曲部分200mm),含带刻度及测量按钮的伸缩手柄线(最长1100mm)

产品描述

Use the hot wire probe (thermal anemometer) to determine flow velocity and volume flow in ventilation ducts or at wall/ceiling outlets. It is particularly suitable for low and medium flow velocities up to +20 m/s. The probe can also measure temperature, humidity and absolute pressure simultaneously.

The hot wire probe is equipped with a robust, non-rotatable telescope, which can be extended to a maximum length of 1100 mm. The immersion depth is easy to read off thanks to the scaling on the telescope.

For easier handling, the probe can be bent up to an angle of 90°. On the handle there is a practical measuring button, which activates storage of the readings. So you can fully focus on the positioning of the probe in the ventilation duct.

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be returned on its own (without the measuring instrument) for calibration. Calculating the determined calibration data in the probe generates a zero-error display.



产品包含

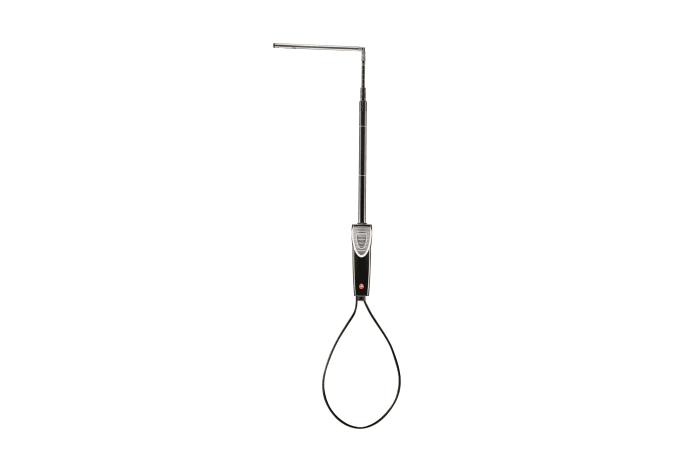

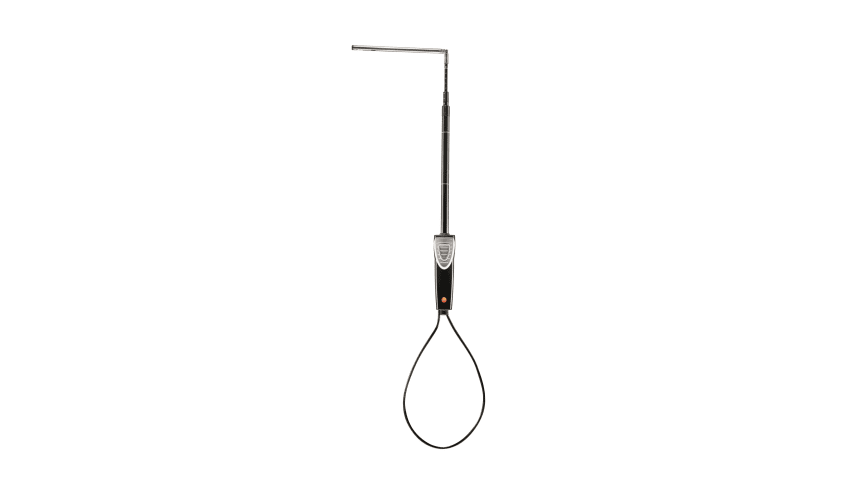

Hot wire probe (Ø 10 mm) with telescope (can be extended to 1100 mm).

Note: you need a plug-in head cable (0430 0100) for this probe.
NTC

测量范围

-20 ~ +70 °C

测量精度

±0.5 °C

电容式湿度传感器

湿度测量范围

0 ~ 100 %RH

测量精度

±(1.8 %RH + 0.7 %测量值)

绝压

测量范围

+700 ~ +1100 hPa

测量精度

±3 hPa

热线

测量范围

0 ~ +20 m/s

测量精度

±(0.03 m/s + 4 %测量值)

技术参数

Length telescope

1,100 mm

Probe head diameter

10 mm
