testo Smart App

0501 5001
  • 多合一:testo Smart App 与所有具有蓝牙功能的 Testo 测量仪均可兼容
  • 快速简便:适用于多种应用的测量菜单,为仪器设置和执行测量提供支持
  • 可持续记录特定时间段内的数据变化
  • 实时显示、记录、分析、发送数据及报告
  • testo Smart  APP 使您的移动设备成为远程控制和测量数据中心。可实现多点同时检测或同时获得多参数的测量值,可记录/图表曲线显示时间段的温湿度变化,相关测量数据均可记录保存或生成测量报告,无线范围15米(取决于使用的移动设备)。
    当您对制冷设备、空调和供热热泵设备进行测量时,testo Smart App 可为您提供支持,它与所有具有蓝牙功能的 Testo 测量仪均可兼容。

    作为控制单元 testo Smart App 适用于以下测量仪器:
    • Testo Smart Probes 智能探头系列
    • testo 550s、testo 557s 和 testo 550i 数字冷媒表组
    • testo 552i 真空计

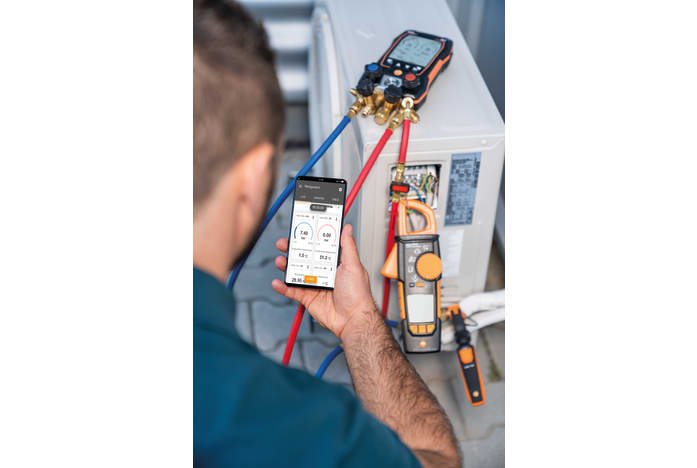

    • testo 770-3 钳型表

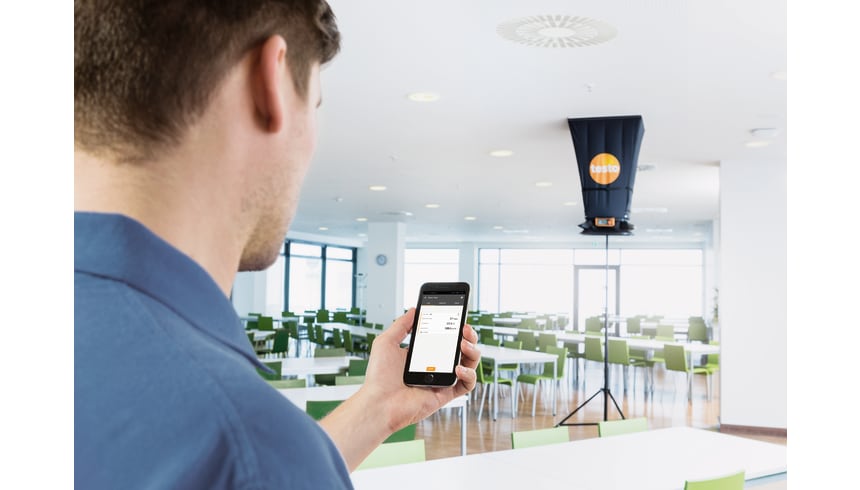

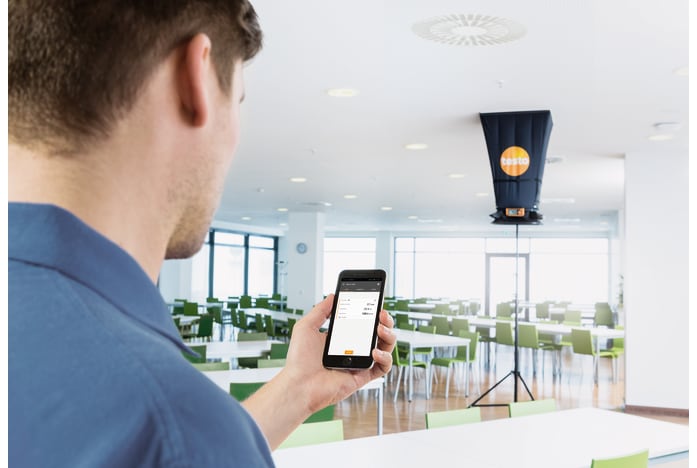

    • testo 420 风量罩
    • testo 552 真空仪
    • testo 915i 空气温度计

    温度、压力、湿度和风量流速的测量较之以往将更灵活、更简单。

    主要功能/优点(通过图像/屏幕提供可视化支持)

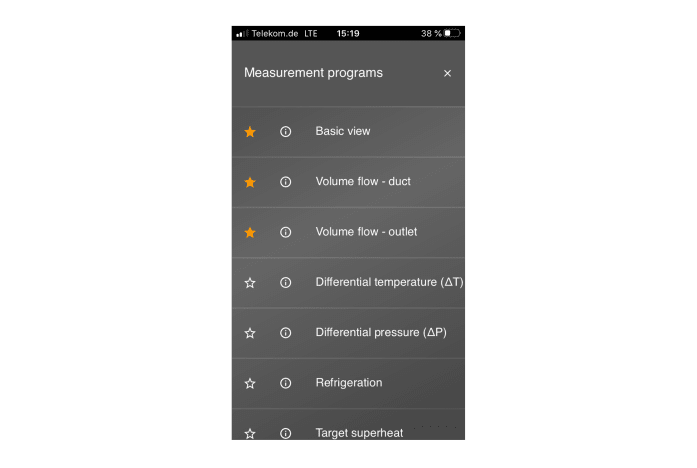

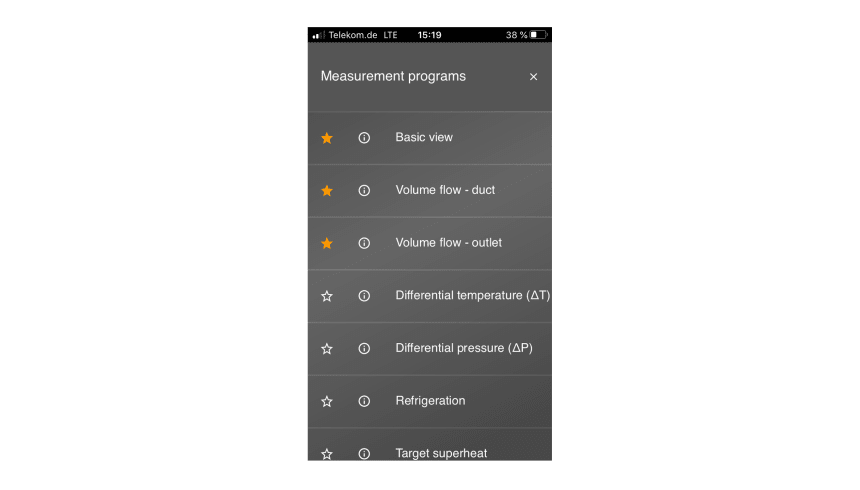

    - 适用于众多应用领域的测量菜单,有助于快速、简单地配置和执行测量
    - 以图表方式直观显示测量值,可快速阐释结果
    - 轻松创建包含图片的电子版测量报告和文档,并可通过电子邮件发送


    testo Smart App 的应用领域

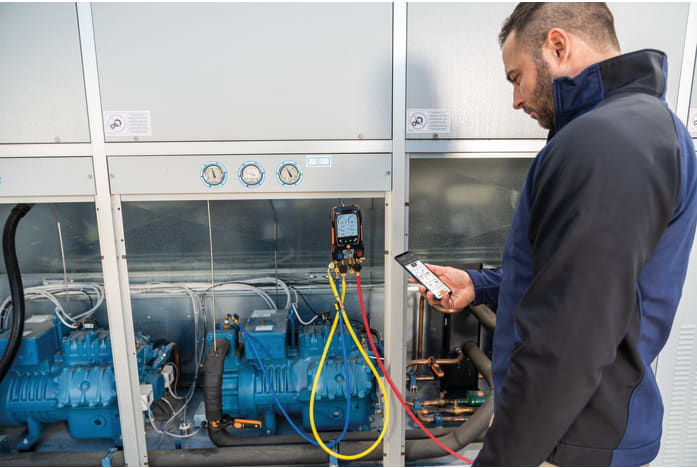

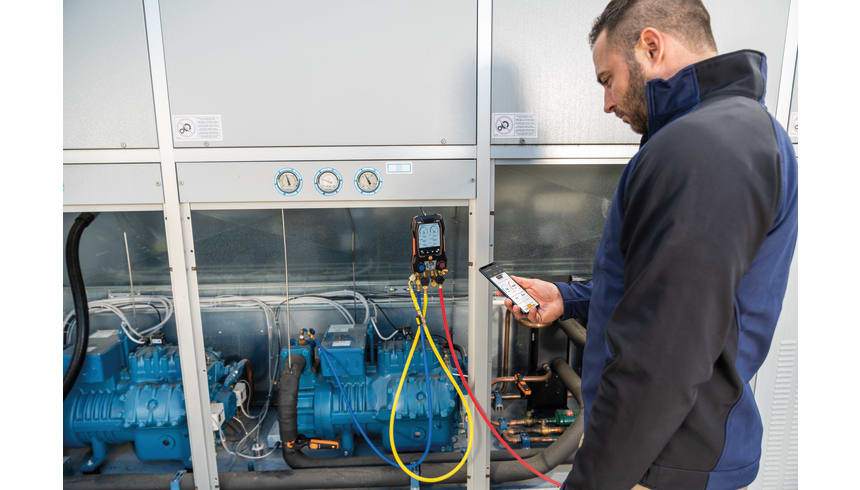

    制冷设备、空调设备和热泵:
    - 密封性测试:记录和分析压力曲线
    - 过热和过冷:自动测定冷凝和蒸发温度并计算过热和过冷值
    - 目标过热:自动计算目标过热值
    - 真空测量:以图表方式显示测量变化过程,包含初始值和差值

    室内空气质量和舒适度:
    - 温度和湿度:自动计算露点和湿球温度

    通风设备:
    - 通风管道测量:输入通风管道横截面的精确参数后,应用程序就可以全自动计算出体积流量。
    - 出风口测量:方便地对出口进行参数化设置(尺寸和几何形状);在调节通风设备时,可以对多个出口的体积流量进行交叉检查和比较,定时和多点均值计算功能

    常规加热设备
    - 温度测量:通过以图表方式显示的变化过程辨识温度变化;通过已存储的材料清单轻松选择发射率

    免费下载 testo Smart App 应用程序,适用于鸿蒙系统、安卓系统和 iOS 苹果系统。

    技术参数

    系统要求
    requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0

    Refrigeration systems, air conditioning systems, heat pumps

    • Tightness test: Recording and analysis of the pressure curve
    • Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
    • Automatic calculation of the target superheat
    • Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
    testo Smart App

    Indoor air quality and comfort level

    • Automatic calculation of the dewpoint and wet bulb temperature
     testo Smart App

    Ventilation systems

    • Duct measurements: Fully automatic calculation of the volume flow via the app after input of the duct cross-section
    • Outlet measurements: Easy parameterization of the outlet (dimensions and geometry), contrast and comparison of volume flows of several outlets when adjusting a ventilation system, continuous and multi-point mean calculation
    testo Smart App

    Conventional heating systems

    • Differential pressure measurement: Measurement menu for the pressure-drop test including alerts
    • Temperature measurement: Rapid detection of temperature changes via graphic progression display, easy selection of emissivity thanks to stored materials list
    testo Smart App
