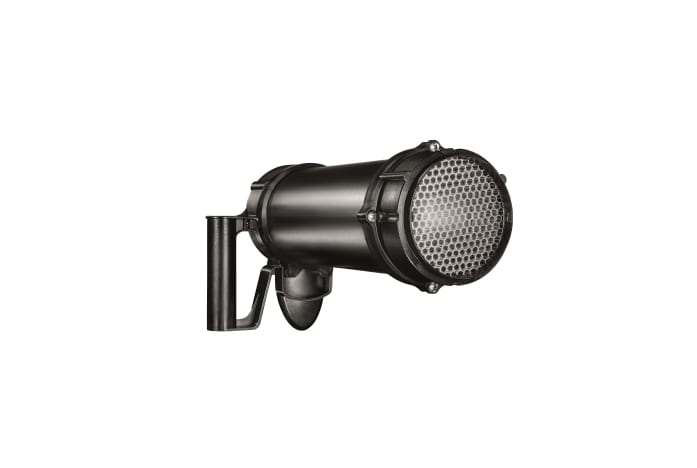

testovent 417 - 辅助风管

订货号 0554 4172

更准确的体积流量测量
解决出风口涡流现象
辅助风管可以与德图现有的风量罩配合使用

testovent 417 辅助风管

1 034.62元

含税价

400 677 0243 产品订购

产品描述

Testo is the only manufacturer providing a solution the problem of measuring equally easily and accurately at swirl outlets. The innovative volume flow straightener testovent 417 supports you perfectly in flow velocity measurement at swirl outlets. The volume flow straightener allows redirection of the swirling flow to an almost uniform flow which can then be reliably recorded with a vane anemometer or vane probes. Measurements at swirl outlets without the volume flow straightener lead to lower or higher measurement results, depending on the flow direction in which the swirl impacts onto the vane.

The volume flow straightener is used in combination with the optional measurement funnel testovent 417 and the optional vane anemometer testo 417 or the vane probes (Ø 100mm) of testo 435 and testo 480.

技术参数
重量	554 g
尺寸	370 x 190 x 210 mm
操作温度	0 ~ +50 °C
外壳	PA66塑料，玻璃纤维30%

风量
测量范围	0.1 ~ +200 m³/h preferred 0.1 ~ +100 m³/h
