紊流度探头,需配连接电缆0430 0100

订货号  0628 0143

  • Turbulence measurement in accordance with EN 13779

  • Determination of air velocity and draught risk

  • Integrated temperature and ambient pressure measurement

  • Intelligent calibration concept

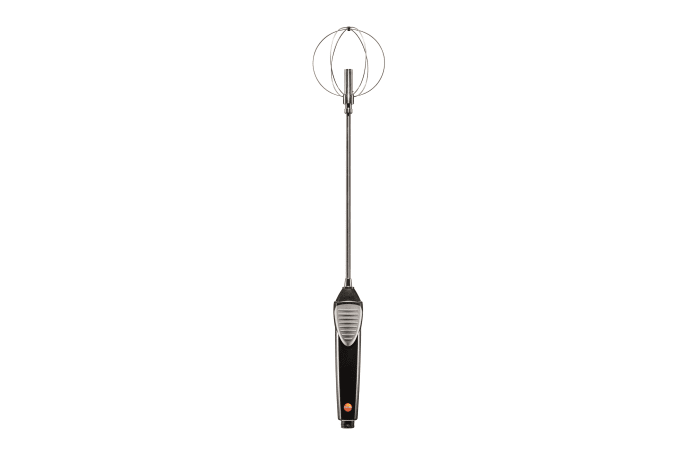

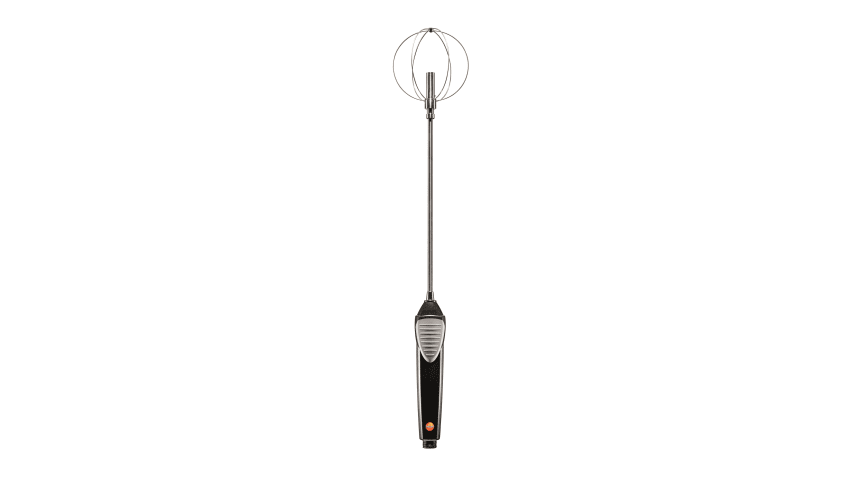

舒适度探头,测量紊流度,符合EN 13779的要求。

产品描述

Draught is the most common cause of complaints about indoor climate. Use the comfort probe to determine turbulence. Turbulence corresponds to the extent of fluctuations in air velocity over time. It is needed to calculate the draught risk. The probe enables you to determine air velocity and draught risk in accordance with EN 13779. The probe can also measure temperature and ambient pressure at the same time.

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be sent in for calibration on its own (without the measuring instrument). Calculating the determined calibration data in the probe generates a zero-error display.



产品包含

Comfort probe for turbulence measurement.
Note: You need a plug-in head cable (0430 0100) for this probe.
NTC

测量范围

0 ~ +50 °C

测量精度

±0.5 °C

分辨率

0.1 °C

绝压

测量范围

+700 ~ +1100 hPa

测量精度

±3 hPa

分辨率

0.1 hPa

热线

测量范围

0 ~ +5 m/s

测量精度

±(0.03 m/s + 4 %测量值)

分辨率

0.01 m/s

技术参数

Length probe

330 mm

Probe head diameter

90 mm

标准

EN 13779
