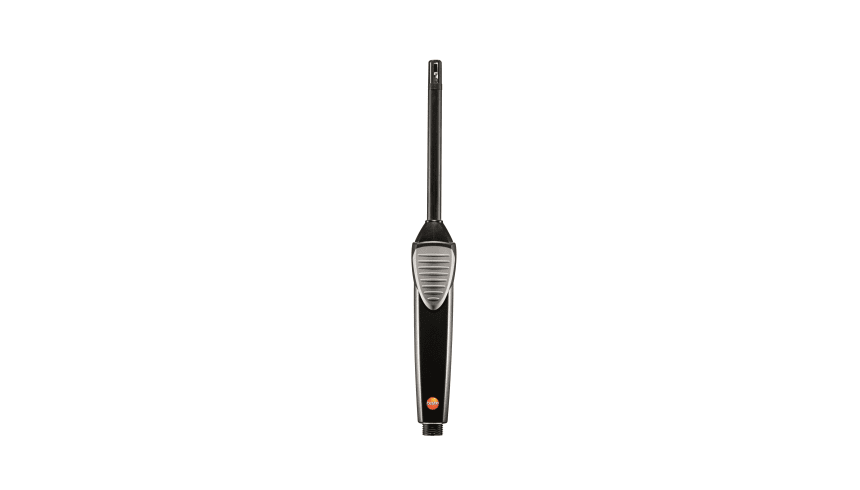

温湿度探头,直径12mm,需配连接电缆0430 0100

订货号  0636 9743

  • High-precision humidity measurement: accuracy of up to ±1% RH

  • Intelligent calibration concept

  • Temperature measuring range: -20 to +70 °C

温湿度探头,直径12mm,湿度精度高达1%

产品描述

Use the high-precision humidity and temperature probe (with an appropriate measuring instrument) for the following applications:
  • Measuring the relative humidity and temperature in storage, refrigerated and work areas or in air conditioning/ventilation ducts
  • Assessing thermal comfort
  • Ensuring the process climate in clean rooms
  • Checking the correct ambient conditions in production facilities to comply with quality standards

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be sent in for calibration on its own (without the measuring instrument). Calculating the determined calibration data in the probe generates a zero-error display.



产品包含

High-precision humidity/temperature probe (Ø 12 mm).
Note: You need a plug-in head cable (0430 0100) for this probe.


NTC

测量范围

-20 ~ +70 °C

测量精度

±0.2 °C (+15 ~ +30 °C)

±0.5 °C (其余量程)

分辨率

0.1 °C

电容式湿度传感器

湿度测量范围

0 ~ 100 %RH

测量精度

±(1.0 %RH + 0.7 %测量值) (0 ~ 90 %RH)

±(1.4 %RH + 0.7 %测量值) (90 ~ 100 %RH)

分辨率

0.1 %RH

技术参数

探头杆直径

12 mm
