紊流度探头，需配连接电缆0430 0100

訂貨號 0628 0143

Turbulence measurement in accordance with EN 13779
Determination of air velocity and draught risk
Integrated temperature and ambient pressure measurement
Intelligent calibration concept

产品不再可用。您是否已经知道了新版本？
您将获益于以下优势：
>> 转至产品
请注意，新版本只能与 testo 400 或 testo 440 兼容。

詳情

産品描述

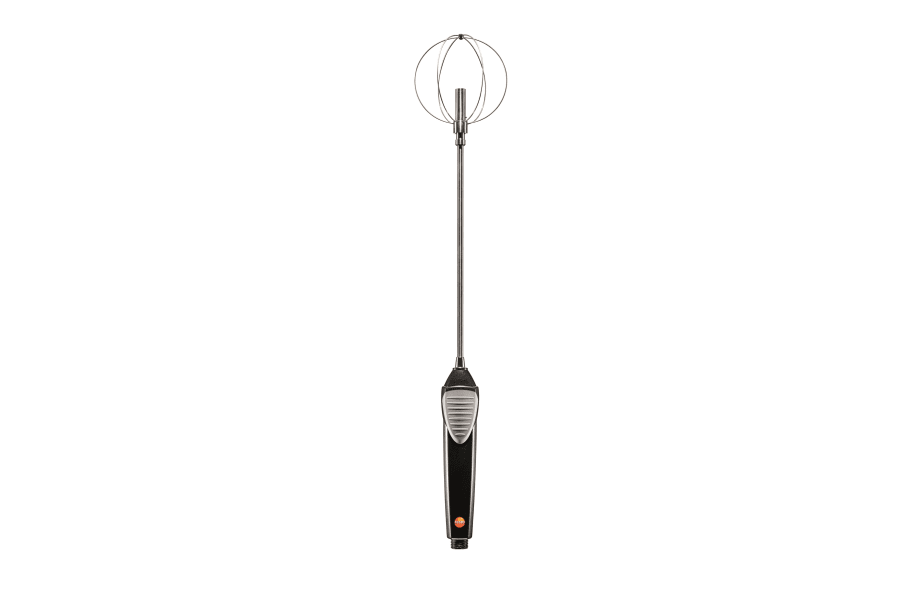

Draught is the most common cause of complaints about indoor climate. Use the comfort probe to determine turbulence. Turbulence corresponds to the extent of fluctuations in air velocity over time. It is needed to calculate the draught risk. The probe enables you to determine air velocity and draught risk in accordance with EN 13779. The probe can also measure temperature and ambient pressure at the same time.

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be sent in for calibration on its own (without the measuring instrument). Calculating the determined calibration data in the probe generates a zero-error display.

産品包含

Comfort probe for turbulence measurement.
Note: You need a plug-in head cable (0430 0100) for this probe.

技術數據

技術參數
Length probe	330 mm
Probe head diameter	90 mm
標準	EN 13779

NTC
測量範圍	0 ~ +50 °C
測量精度	±0.5 °C
解析度	0.1 °C

絕壓
測量範圍	+700 ~ +1100 hPa
測量精度	±3 hPa
解析度	0.1 hPa

熱線
測量範圍	0 ~ +5 m/s
測量精度	±(0.03 m/s + 4 %測量值)
解析度	0.01 m/s

附件

標定證書

ISO标定证书/风速

訂貨號: 0520 0024

ISO标定证书/压力

訂貨號: 0520 0025

DKD标定证书/风速

訂貨號: 0520 0224
