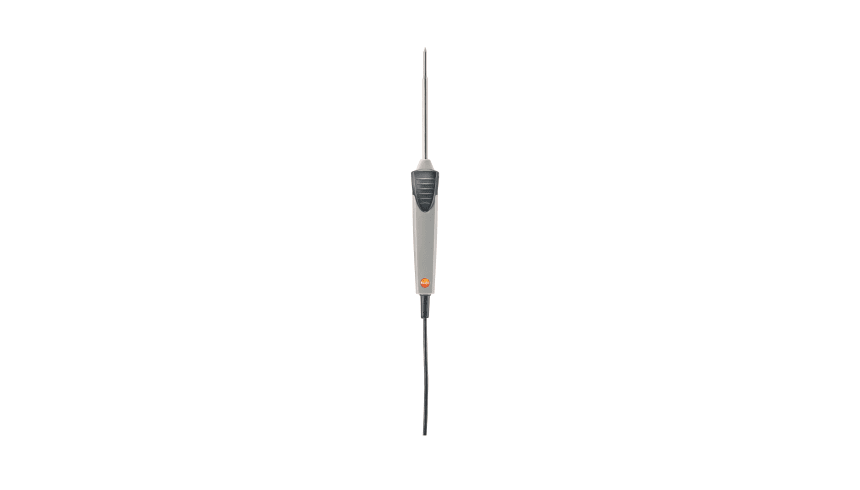

Robust waterproof immersion/penetration probe (Pt100)

0609 1273
AED 415
  • Pt100 sensor for particularly accurate measurement results
  • Ideal for laboratory application
  • Waterproof
  • Measuring range: -50 to +400 °C
  • The robust waterproof immersion and penetration probe (with the appropriate measuring instrument) enables particularly accurate temperature measurement in liquid and semi-solid media.
    The robust waterproof immersion and penetration probe (Pt100) provides precise measurement results and is particularly well-suited for laboratory applications. The fact that the probe is waterproof makes it extremely practical.

    Robust waterproof immersion/penetration probe (Pt100) with 1.3 m fixed cable.



    General technical data

    Length probe shaft tip
    50 mm
    Diameter probe shaft
    5 mm
    Diameter probe shaft tip
    3.7 mm
    Cable length
    1.2 m
    Fixed cable
    yes
    Length probe shaft
    114 mm

    Temperature - Pt100

    Measuring range
    -50 to +400 °C
    Accuracy
    Class A (-50 to +300 °C)
    Class B (Remaining Range) ¹⁾
    Reaction time
    12 s
    1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)
