  2. testo 176 H2 - Climate data logger for humidity and temperature
0572 1766

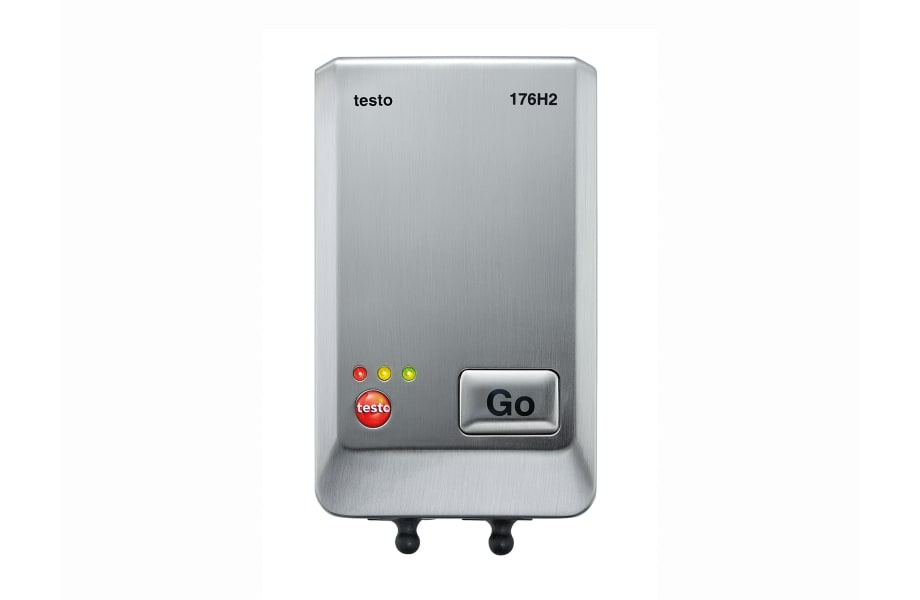

testo 176 H2 - Climate data logger for humidity and temperature

testo 176
testo 176 H2 datalogger
testo 176 H2 datalogger
testo 176 T1
testo 176
The robust metal housing of the non-sensitive testo 176 H2 climate data logger protects it against mechanical impacts. It can therefore measure temperature and humidity even in harsh environmental conditions.
  • Large memory for 2 million measurement values - robust metal housing (without display)

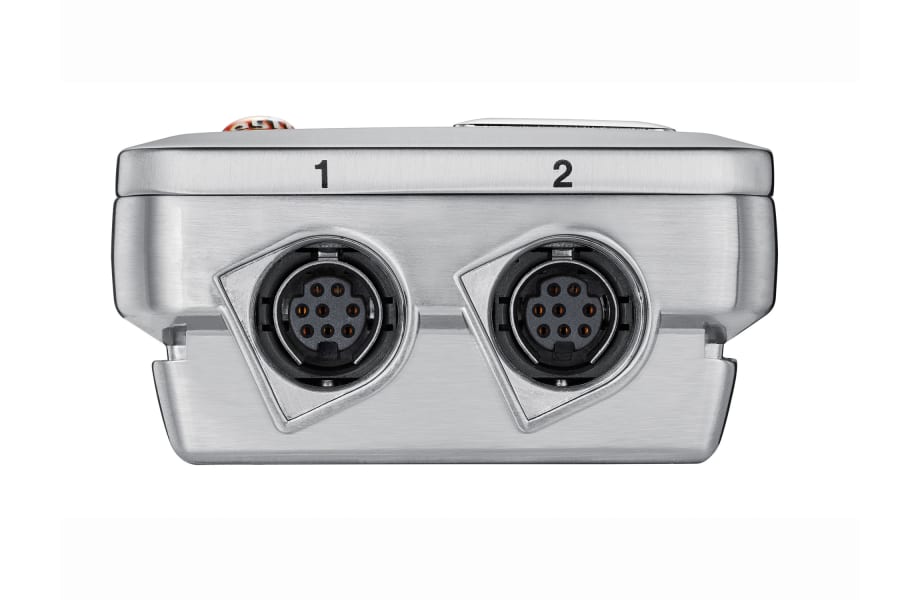

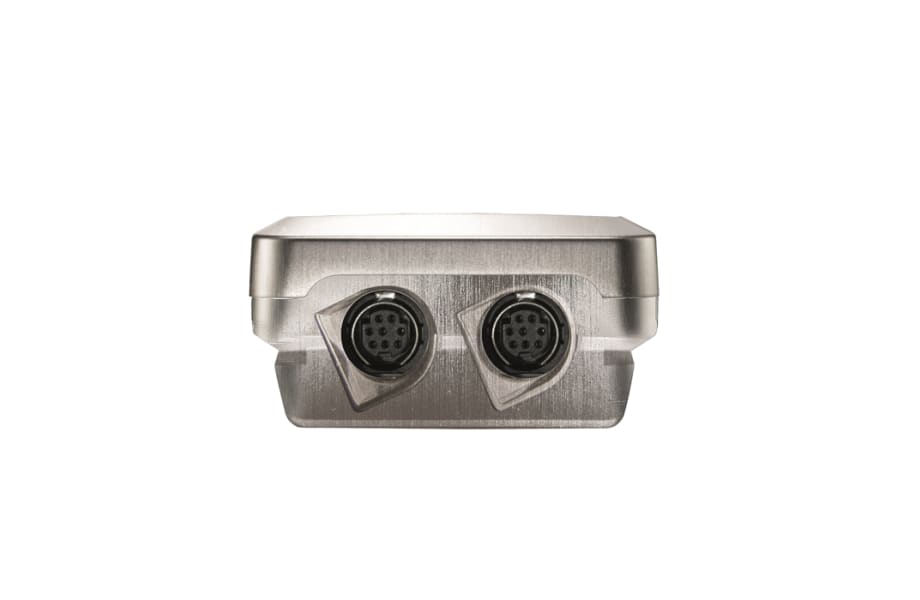

  • Measure humidity and temperature on two channels thanks to its two connections for external sensors
  • Robust metal housing and protection against dust and water jets in compliance with protection class IP 65
  • Three software versions are available for measurement data analysis on the PC, basic software can be downloaded free of charge

When normal humidity loggers are too sensitive, the testo 176 H2 comes into its own. The robust metal housing resists mechanical influences and adverse ambient conditions. It has two connections for external humidity probes which can be positioned in the room according to the individual requirements.



Temperature - NTC

Measuring range
-20 to +70 °C
Accuracy
±0.4 °C (Remaining Range) ±1 Digit
±0.2 °C (-20 to +70 °C) ±1 Digit
Resolution
0.1 °C

Humidity - Capacitive

Measuring range
0 to +100 %RH*
Accuracy
dependent on selected probe
Resolution
0.1 %RH
* Not for condensing atmospheres

General technical data

Weight
430 g
Dimensions
103 x 63 x 33 mm
Operating temperature
-20 to +70 °C
Product-/housing material
Metal housing
Protection class
IP65
Channels
4 external
Connectable probes
2 x humidity probe
Product colour
silver
Standards
EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate
1 s to 24 h; 2 s to 24 h (online measurement)
Battery type
1 x Lithium (TL-5903)
Battery life
8 years at 15 min. meas. rate, +25 °C
Interface

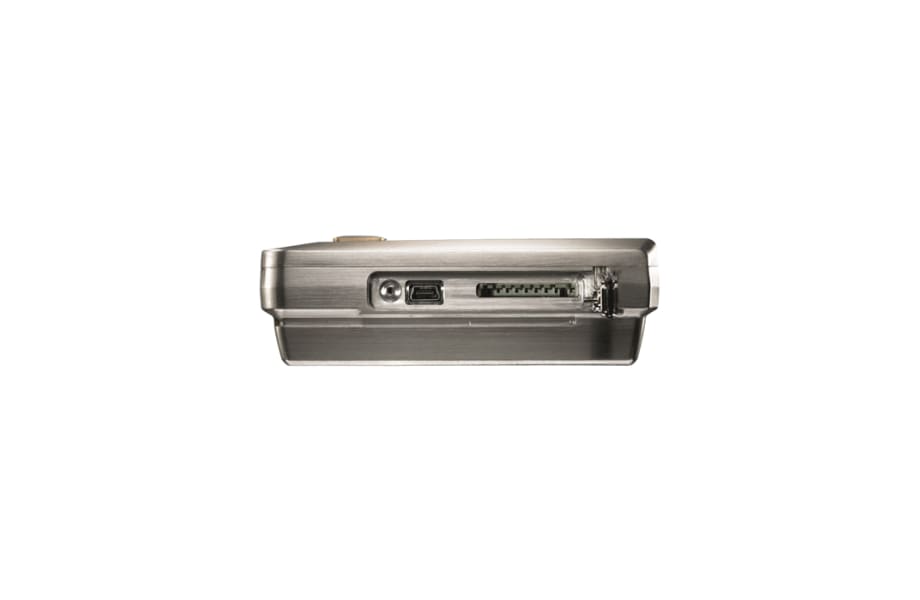

mini usb, SD card slot
Memory
2,000,000 measuring values
Storage temperature
-40 to +85 °C

testo 176 H2 climate data logger for humidity/temperature with connections for 2 external sensors (NTC/capacitive humidity sensor) including wall bracket, lock, batteries and calibration protocol.

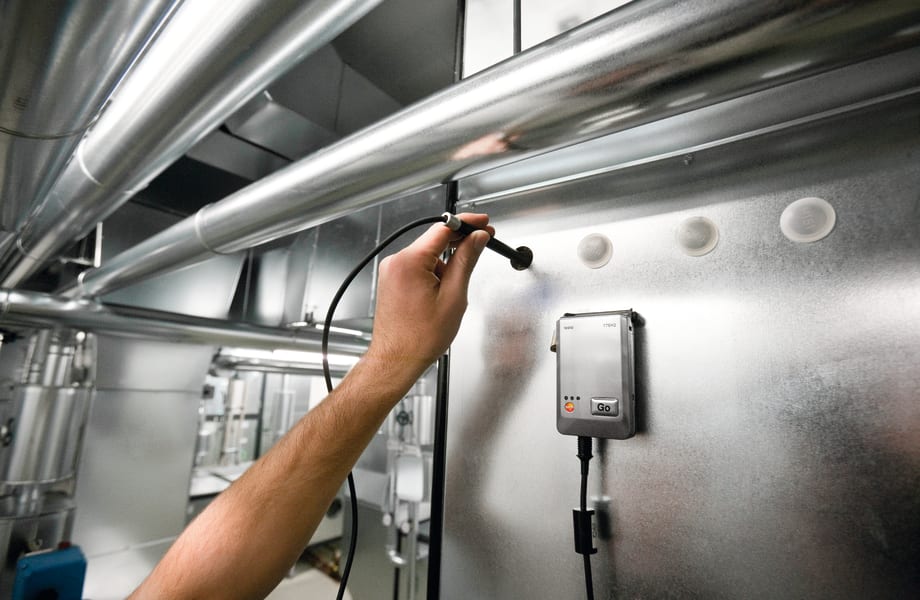

Monitoring and documentation of building climate

Temperature and relative humidity are crucial factors when it comes to assessing air quality and comfort levels in indoor areas, e.g. in workplaces. Both values can be monitored and documented over the long term using data loggers.
They are also very well suited for checking ventilation systems or for assessing any building moisture which occurs.

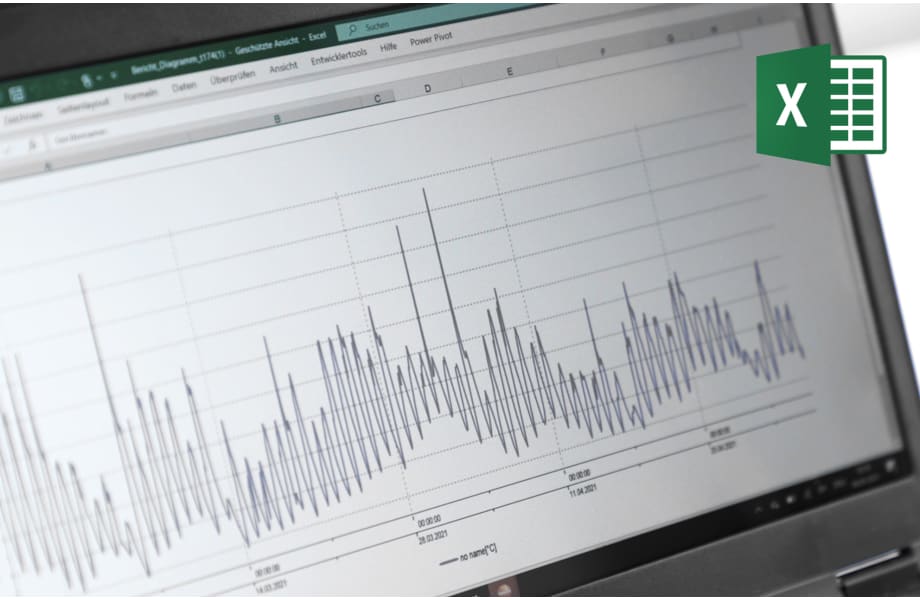

The use of special software means measurement configurations can be carried out individually and recorded measurement data can be both analysed and archived.

Monitoring and documentation of storage temperature and humidity

Correct compliance with storage temperature and humidity is an important prerequisite for the quality assurance of many products, e.g. in the area of food and pharmaceutical products.
As a general rule, data loggers are used to do this. They automatically check and document the profile of the ambient conditions and thus make a crucial contribution to verifiable preservation of product quality.

Viewing breaches of limit values directly on the display means you can respond quickly to temperature and humidity deviations. In addition, with the help of the configuration and read-out software, customer-specific measurement configurations can be carried out and recorded measurement data can be both analysed and archived.

Monitoring and documentation of transport temperature and humidity

For all goods which react sensitively to temperature and humidity fluctuations or have to be stored within a predefined range, uninterrupted measurement data recording and documentation play a major role.
Incorrect conditions during transport can lead to major losses of quality, including the total loss of value of the products that require monitoring.

Using a data logger, shipments can be checked for compliance with the specified temperature and humidity ranges and the data can then be read, analysed and archived by means of special software.
