Order-Nr. 0636 9743
High-precision humidity measurement: accuracy of up to ±1% RH
Intelligent calibration concept
Temperature measuring range: -20 to +70 °C
temperature probe Ø 12 mm

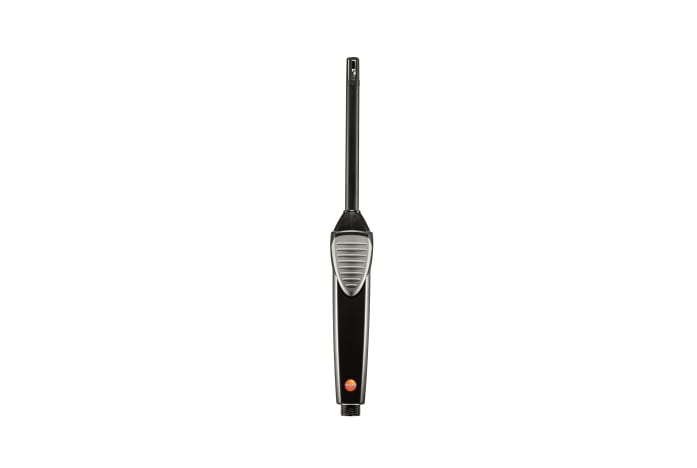

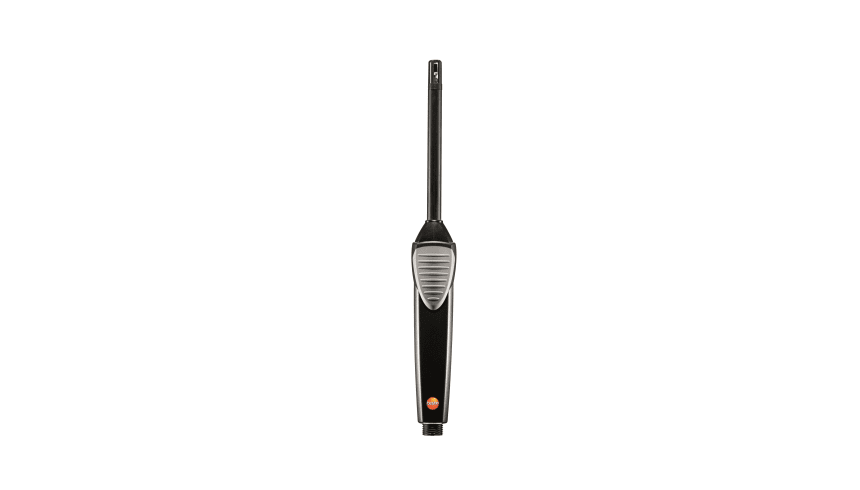

Probe Ø 12 mm for highly accurate humidity measurement with 1% accuracy and temperature measurement
| Temperature - NTC | |
|---|---|
Measuring range |
-20 to +70 °C |
Accuracy |
±0.2 °C (+15 to +30 °C) ±0.5 °C (Remaining Range) |
Resolution |
0.1 °C |
| Humidity - Capacitive | |
|---|---|
Measuring range |
0 to 100 %RH |
Accuracy |
±(1.0 %RH + 0.7 % of mv) (0 to 90 %RH) ±(1.4 %RH + 0.7 % of mv) (90 to 100 %RH) |
Resolution |
0.1 %RH |
| General technical data | |
|---|---|
Diameter probe shaft |
12 mm |
Order Number: 0554 0660
Order Number: 0520 0166
Order Number: 0520 0266
