testo 745 - Non-contact voltage tester

testo 745  non-contact voltage tester
testo 745
testo 745
testo 745
testo 745
testo 745
testo 745

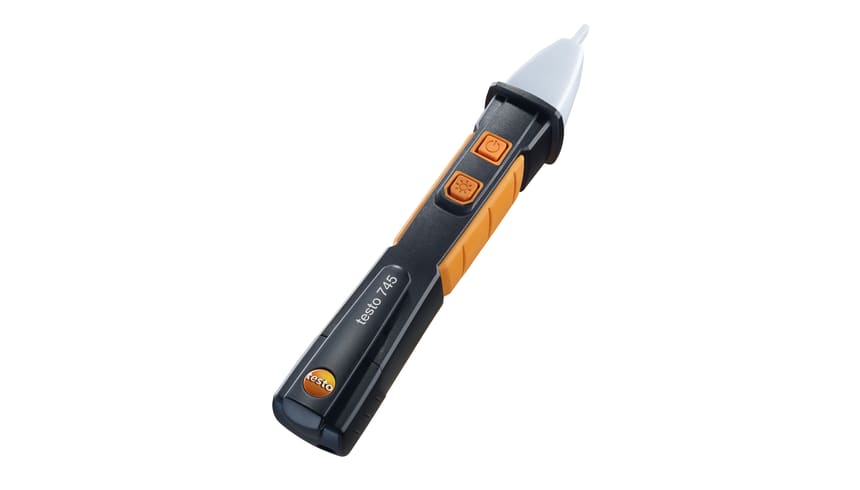

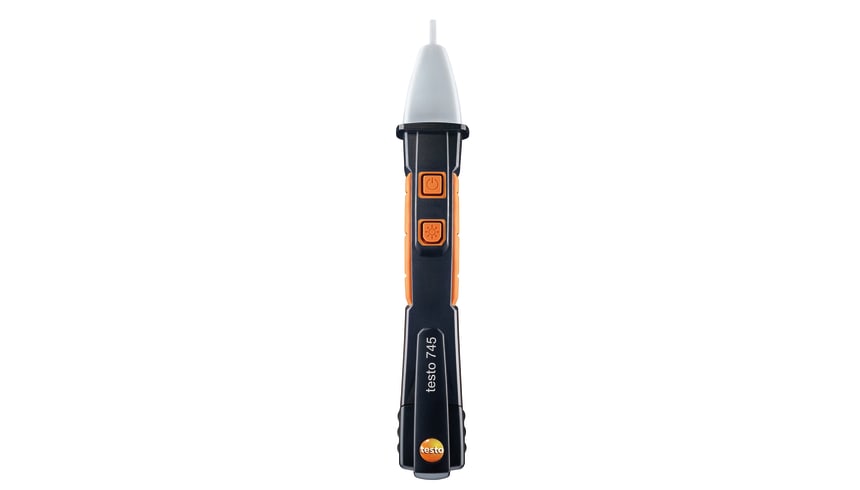

The testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources. It filters high-frequency interference signals and has a two-stage sensitivity setting.


  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Adjustable for phase detection or voltage indication
  • Visual and acoustic signal
The testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization. In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication. If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal.

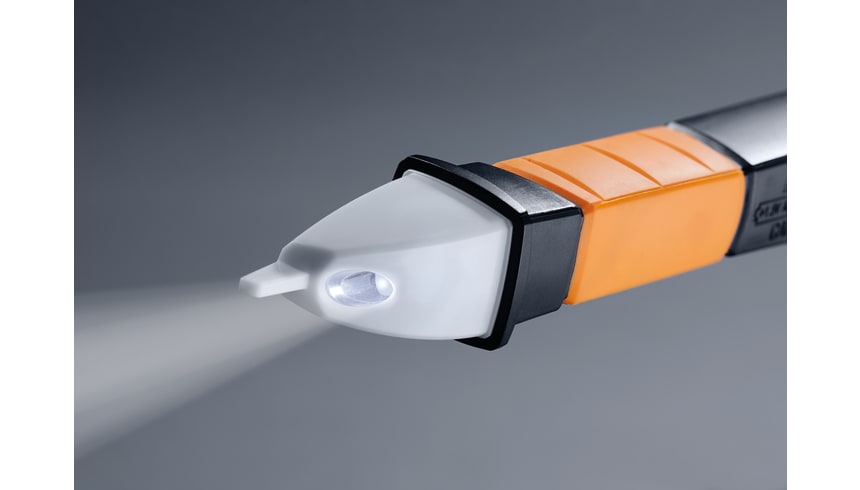

The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated torch also enables you to work safely in dark surroundings. In addition, the testo 745 voltage tester is both waterproof and dustproof according to IP 67.


AC voltage

Measuring range
12 to 1000 V

General technical data

Operating humidity
0 to 80 %RH
Weight
55 g
Dimensions
155 x 25 x 23 mm
Operating temperature
-10 to +50 °C
Product colour
Black
Protection class
IP67
Standards
EN 61326-1; EN 61010-1
Alarm function
via LED; audible
Battery type
2 AAA micro batteries
Storage temperature
-15 to +60 °C
Overvoltage Category
CAT IV 1000 V
Authorizations
CSA; CE
testo 745 non-contact voltage tester, including batteries, calibration protocol and instruction manual.

Ideal for voltage testing

  • Voltage range up to 1000 V, filter for high-frequency interference signals, waterproof and dustproof according to IP 67, adjustable sensitivity (2 levels), visual and acoustic signal, integrated torch for measuring point illumination

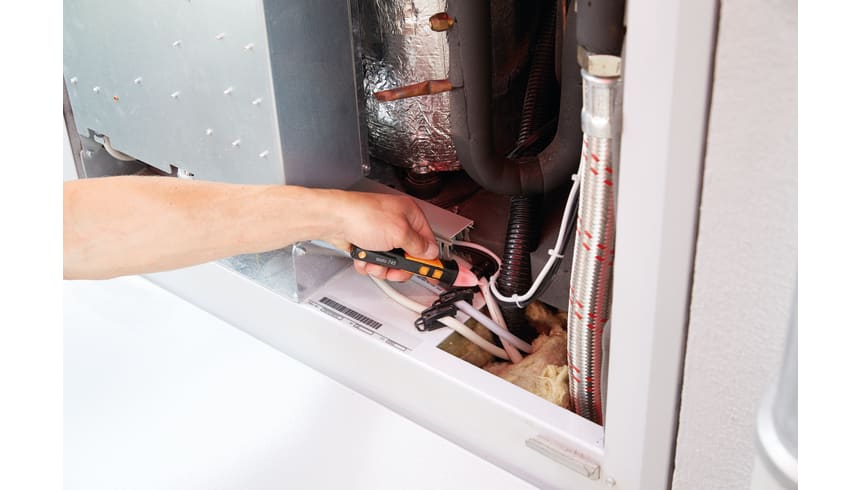

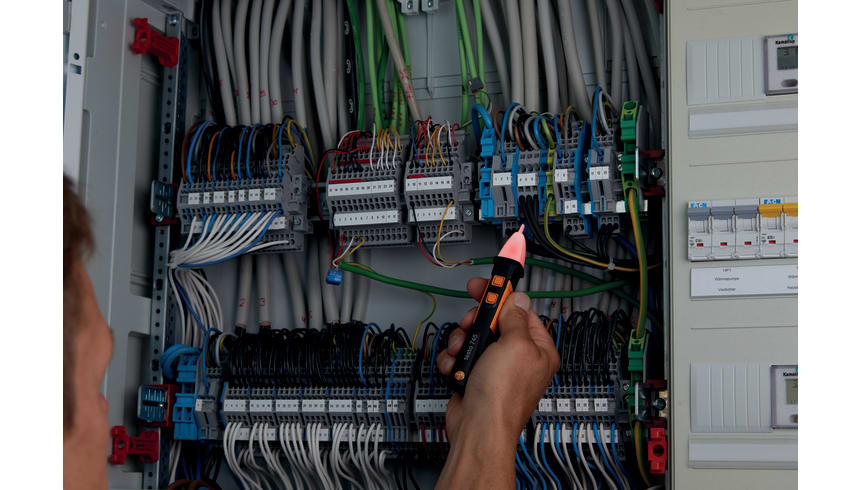

Overview of applications

  • Non-contact voltage testing
  • Searching for cable breakages
  • Locating live and neutral wires
