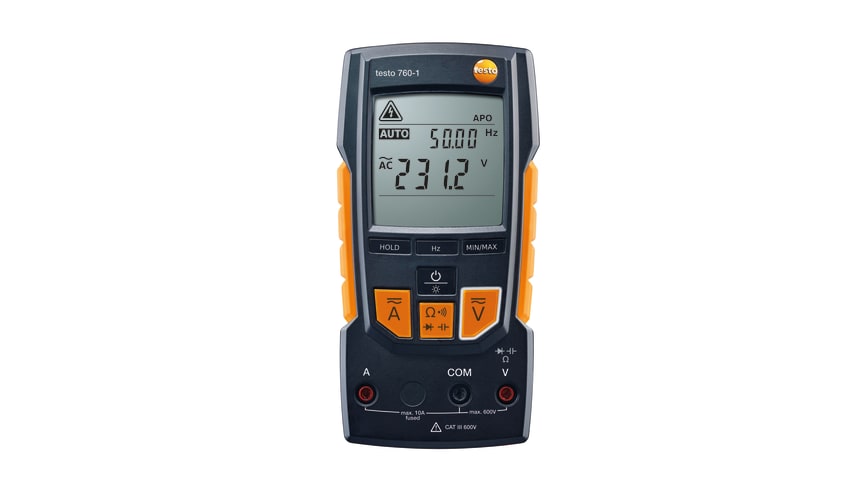

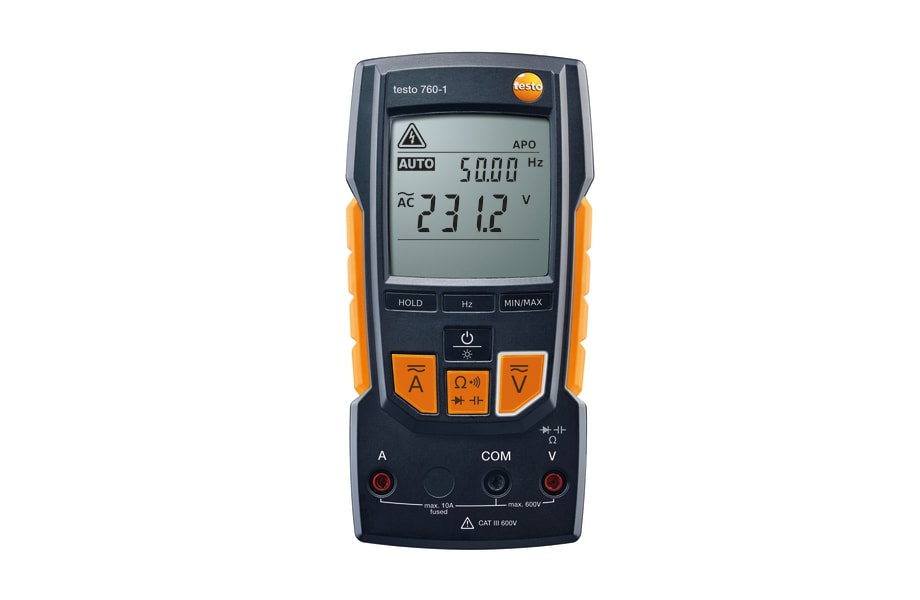

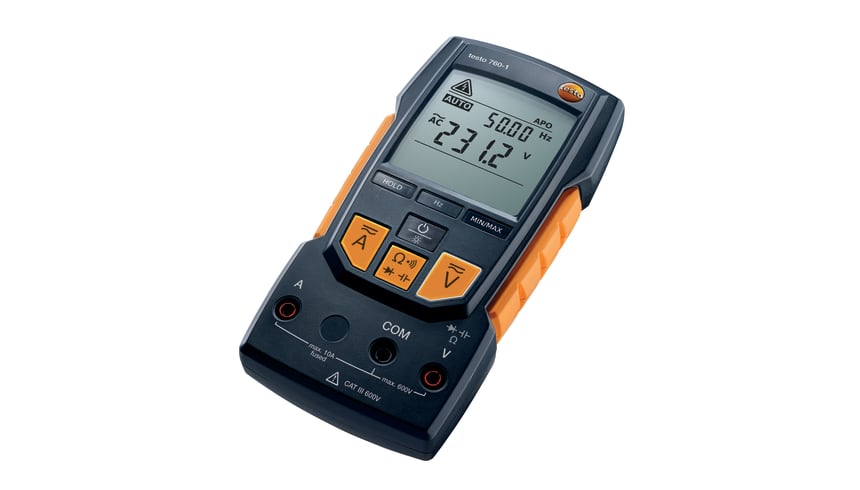

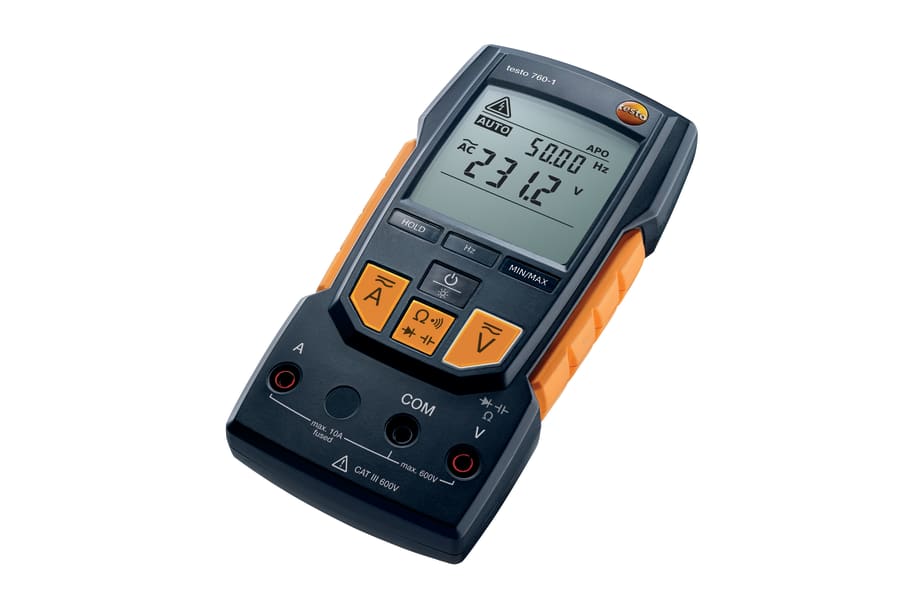

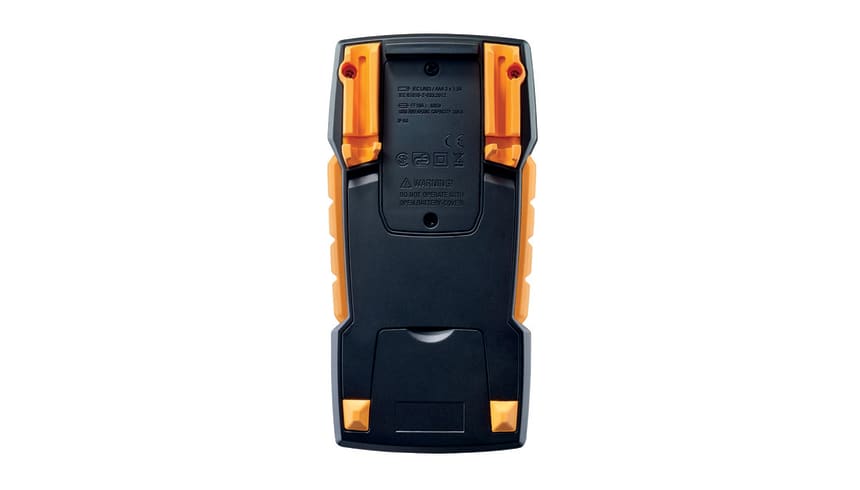

testo 760-1 - Digital multimeter

Order-Nr.  0590 7601

  • Easy, reliable operation through automatic measurement parameter detection

  • Prevents incorrect settings

  • Suitable for almost all electrical measuring tasks

  • Clear, illuminated display

No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.

Product Description

When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability.

In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.





Delivery Scope

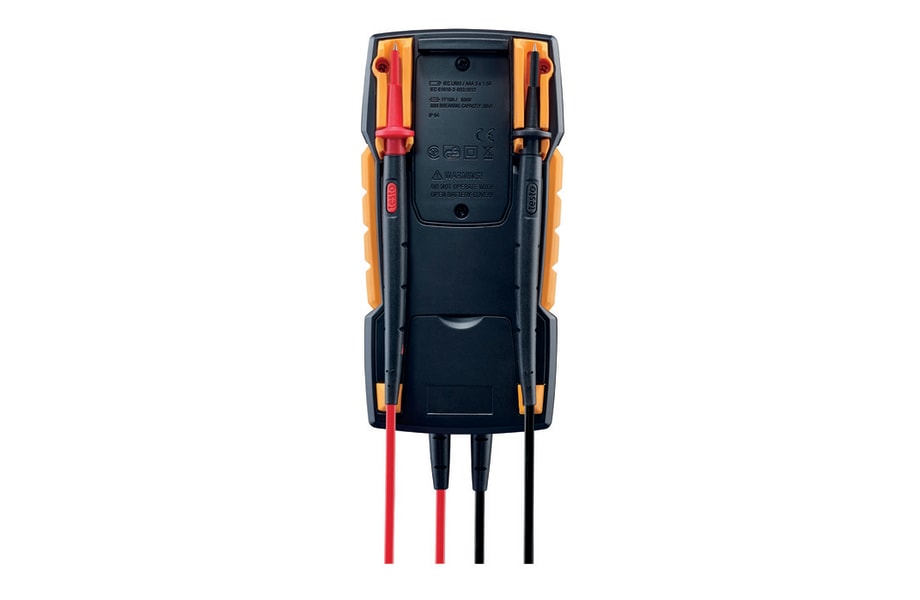

testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
DC voltage

Measuring range

0.1 to 600 V

Resolution

max. 0.1 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range

0.1 mV to 600 V

Resolution

max. 0.1 mV

Accuracy

± (1.0 % of mv + 3 Digit)

DC current

Measuring range

0.1 mA to 10 A

Resolution

max. 0.1

Accuracy

± (1.5 % of mv + 5 Digit)

AC current

Measuring range

0.1 mA to 10 A

Resolution

max. 0.1 mA

Accuracy

± (1.0 % of mv + 3 Digit)

Resistance

Resolution

max. 0.1 Ohm

Measuring range

0.1 to 40.00 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Resolution

max. 0.01 nF

Measuring range

10 nF to 100 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Frequency

Resolution

max. 0.001 Hz

Measuring range

2 Hz to 512.0 kHz

Accuracy

± (0.1 % of mv + 1 Digit)

General technical data

Operating humidity

0 to 80 %RH

Weight

340 g

Dimensions

167 x 85 x 45 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61326-1; EN 61010-2-033; EN 61140

Battery type

2 AAA micro batteries

Display type

LCD (Liquid Crystal Display)

Display size

2 lines

Interface

4 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT III 600V; CAT IV 300V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes

Transport and Protection

25,00 €
excl. VAT

Ideal for measuring all important electrical parameters

  • Automatic detection and selection of measurement parameters, operation via function keys, large illuminated display

Overview of applications

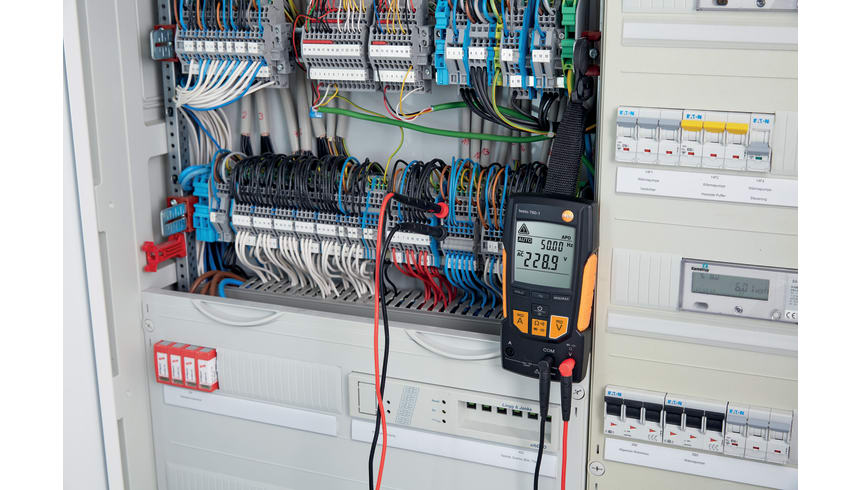

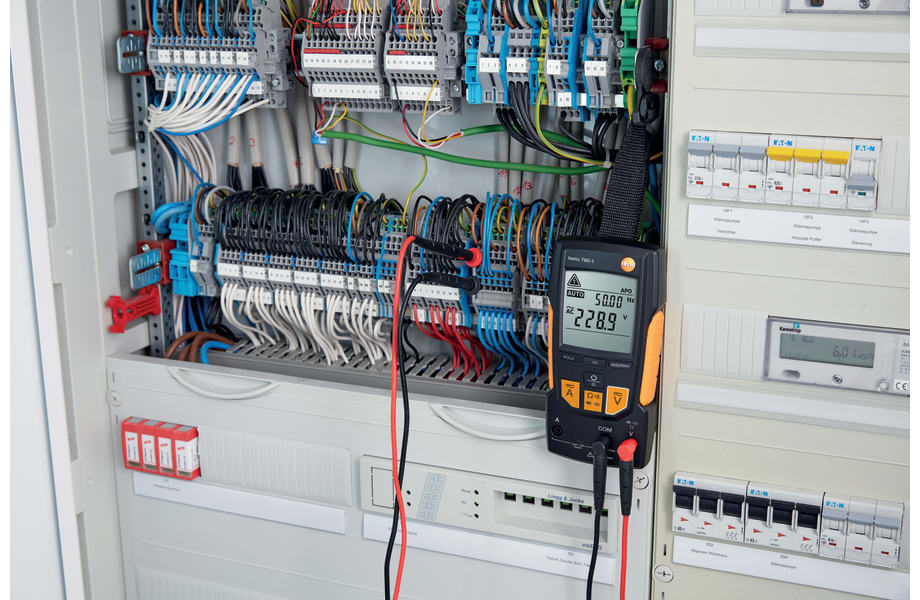

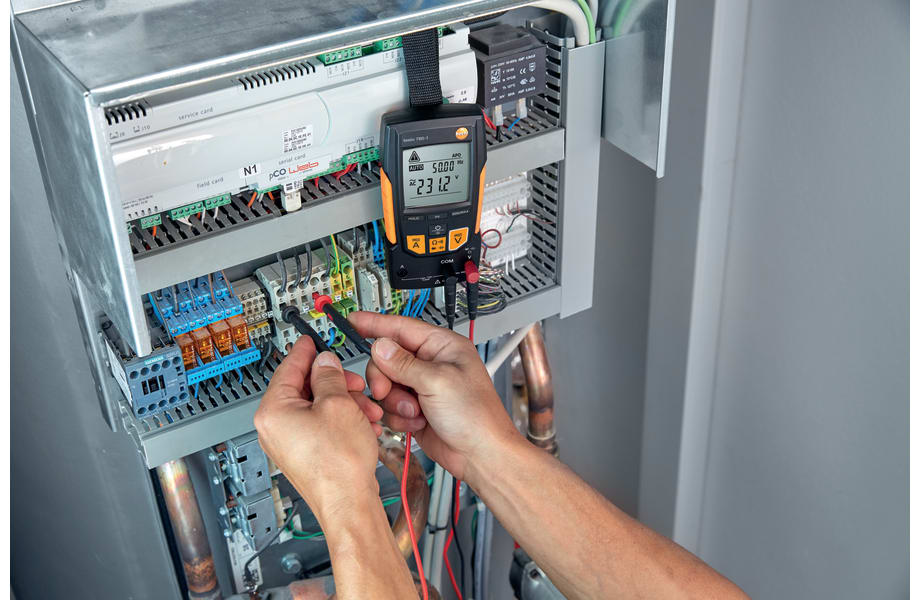

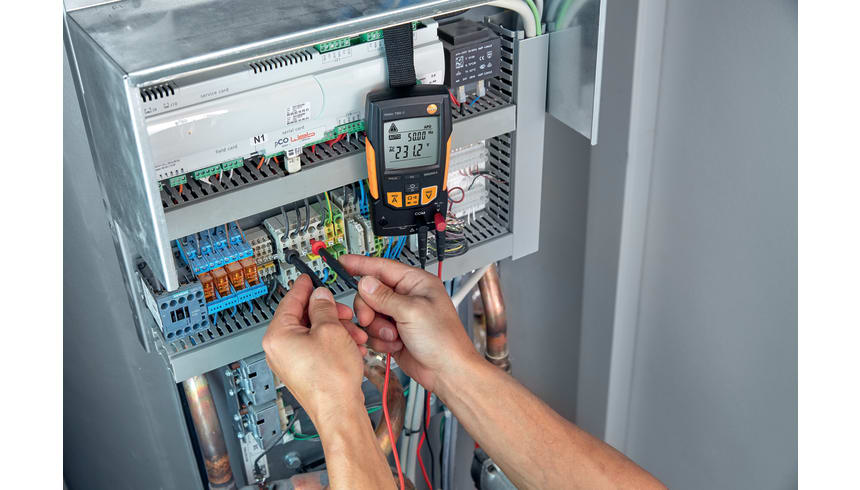

  • Testing voltage supply in live wires, current measurement in the lower measuring range, continuity tests on switching components, resistance measurement of sensors or motor windings
