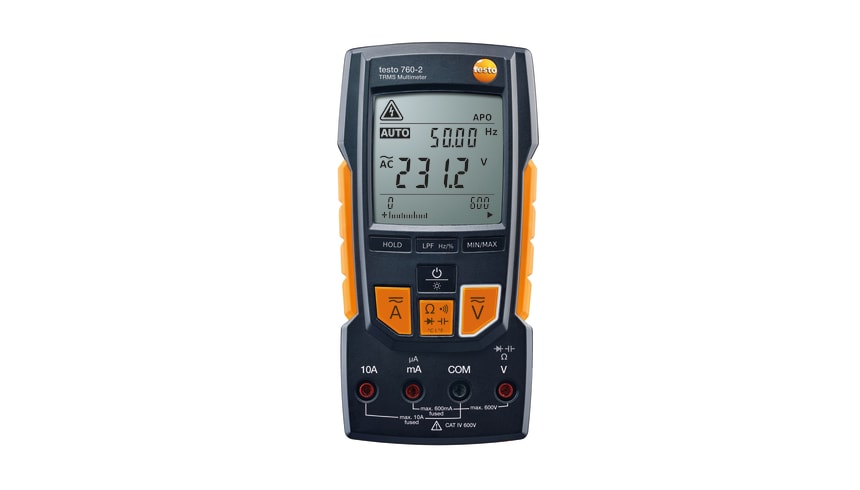

testo 760-2 - Digital multimeter

0590 7602
  • Easy, reliable work thanks to automatic measurement parameter detection
  • Current measurement in the µA range
  • True root mean square measurement - TRMS
  • Low-pass filter for accurate measurement results on frequency converter controlled motors
  • The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.
    The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

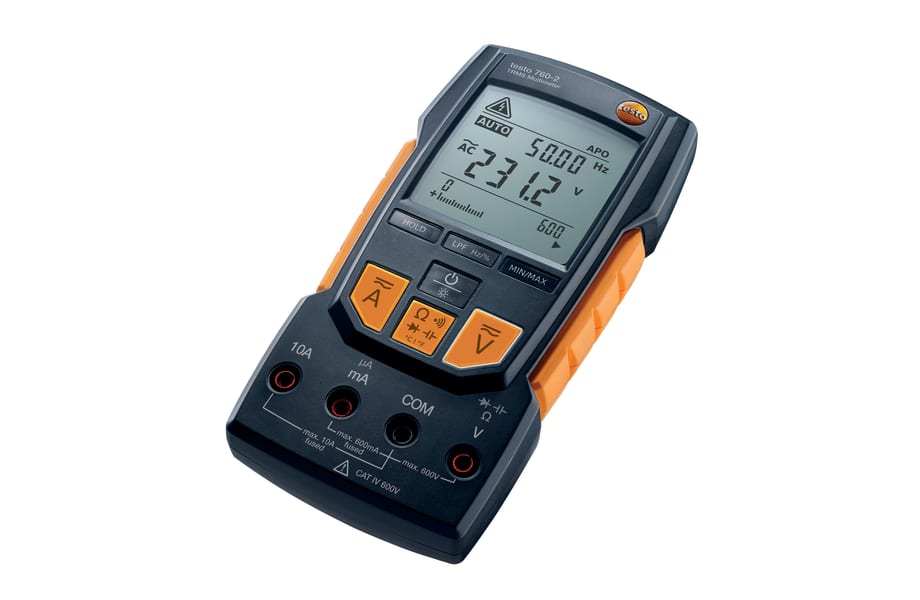

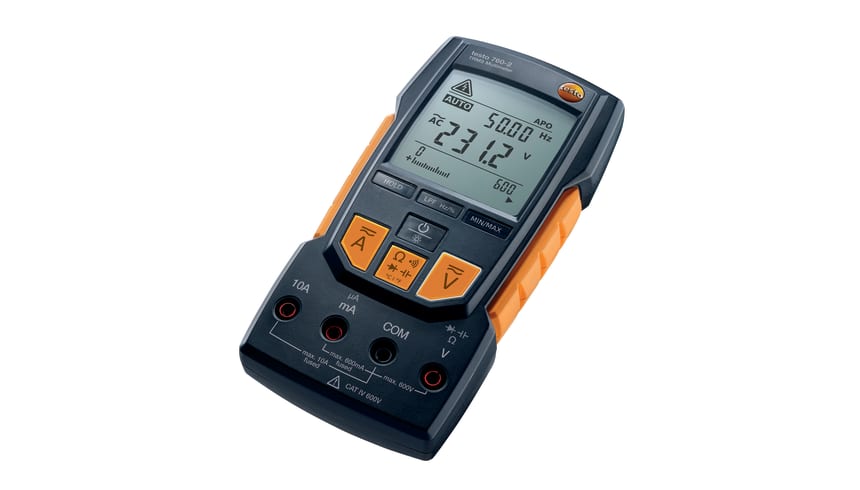

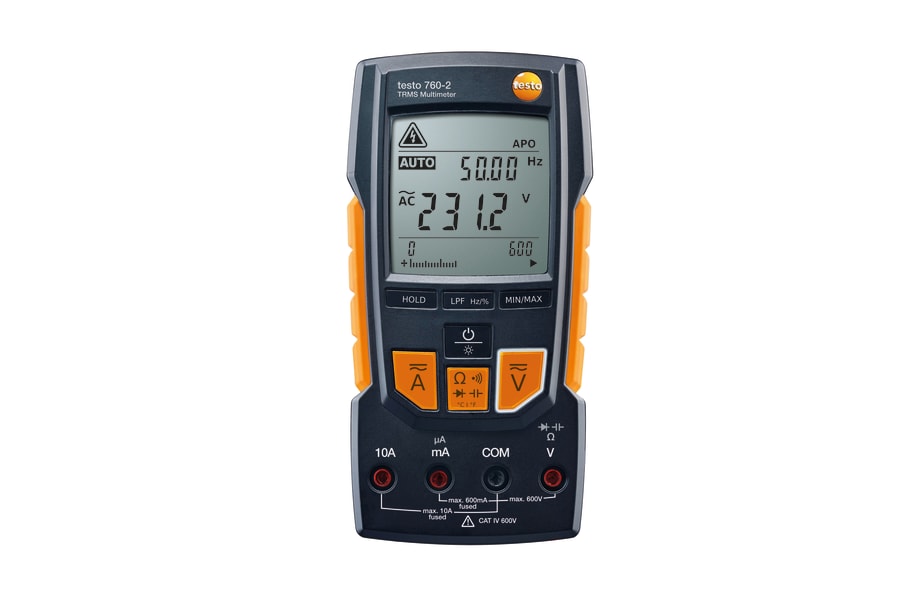

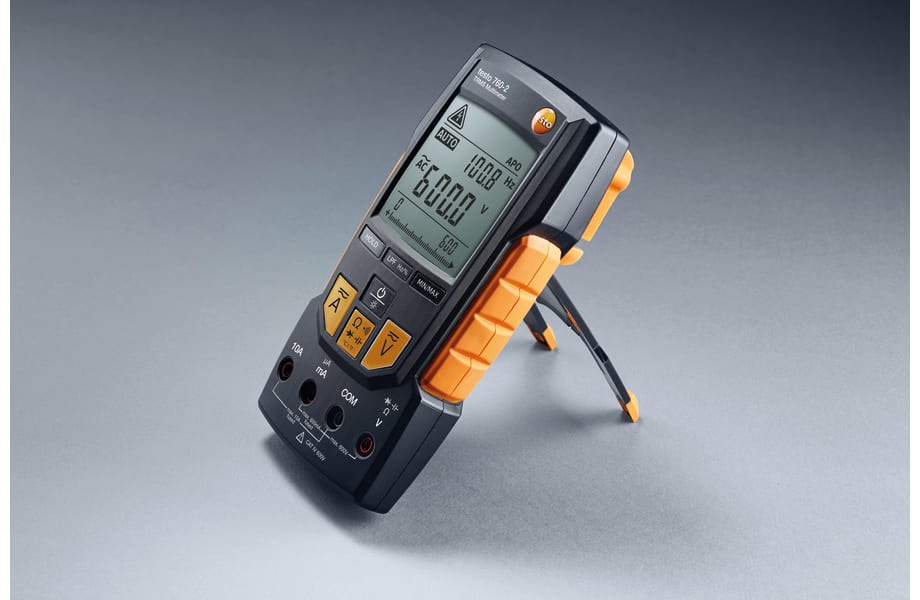

    It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

    The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
    Temperatures can also be measured with this multimeter in addition to electrical parameters.

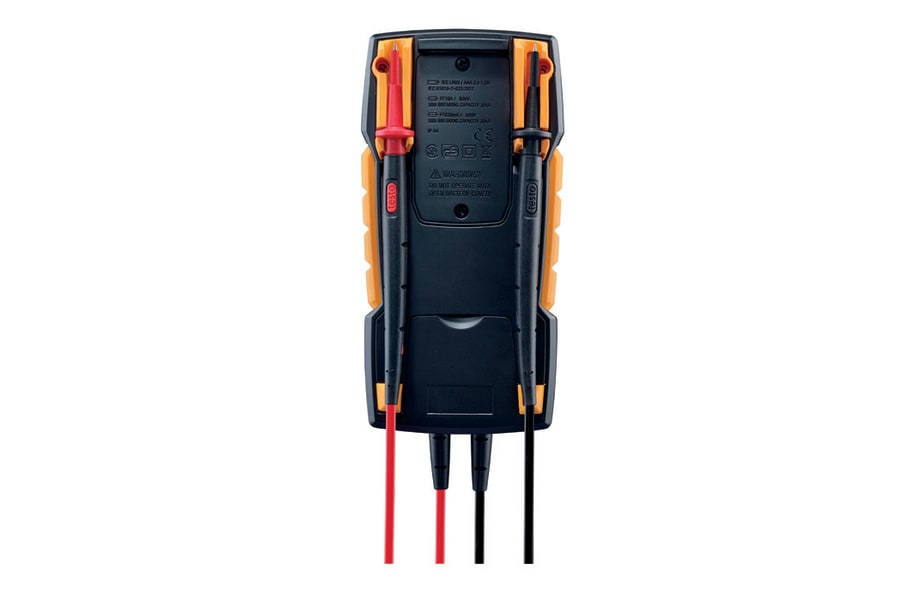

    testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K and instruction manual.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -20 to +500 °C
    Accuracy
    ±1 °C (0 to +100 °C)
    Resolution
    0.2 °C

    DC voltage

    Measuring range
    0.1 to 600 V
    Resolution
    max. 0.1 mV
    Accuracy
    ± (0.8 % of mv + 3 Digit)

    AC voltage

    Measuring range
    0.1 mV to 600 V
    Resolution
    max. 0.1 mV
    Accuracy
    ± (1.0 % of mv + 3 Digit)

    Air probes

    Surface probes

    Thermocouples


    Ideal for measuring all important electrical parameters

    • Automatic detection and selection of measurement parameters, current measurement in the µA range, true root mean square (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter

    Overview of applications

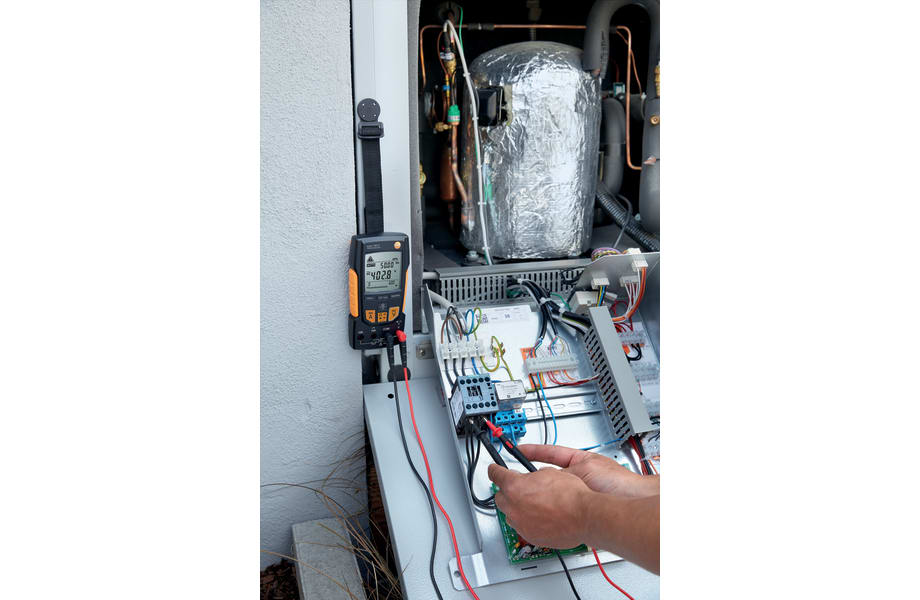

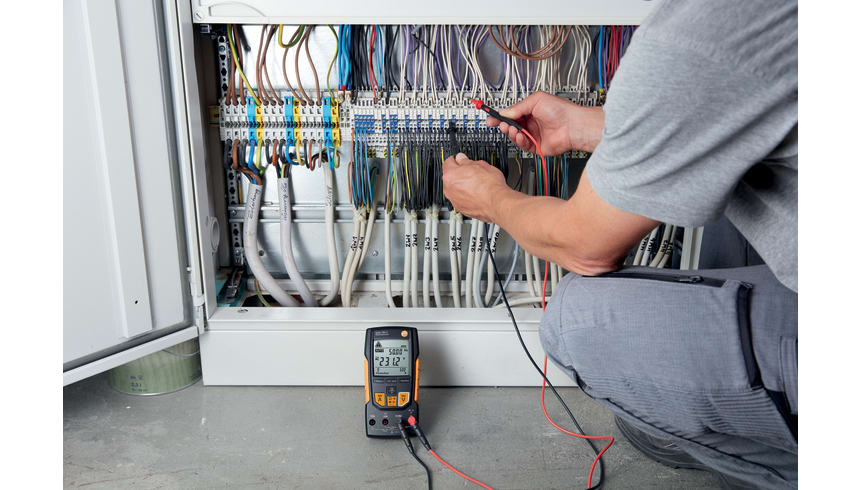

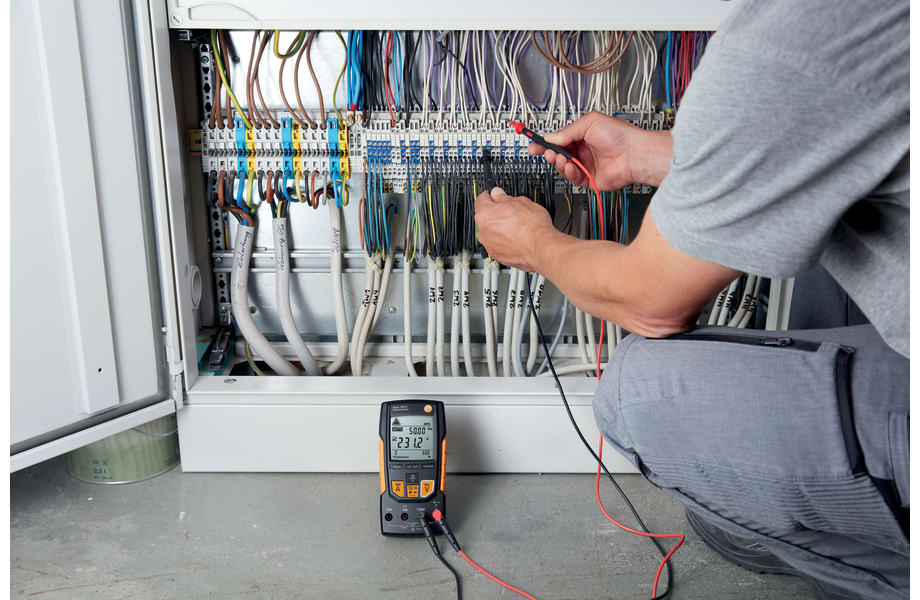

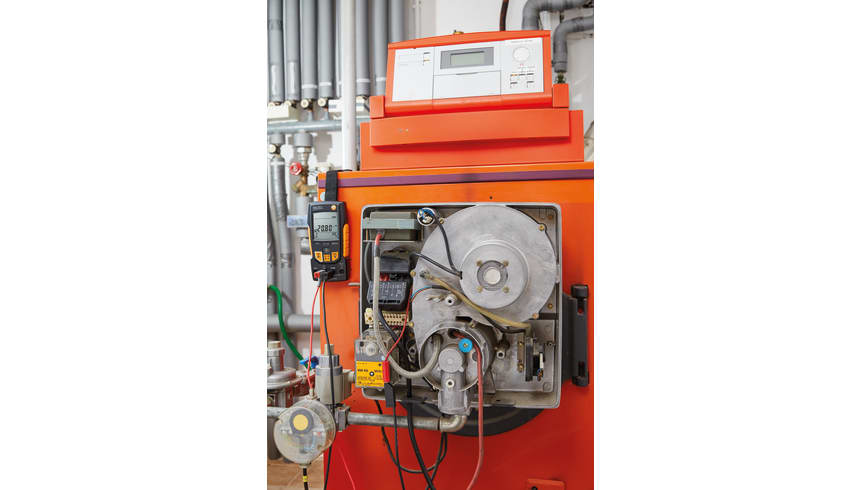

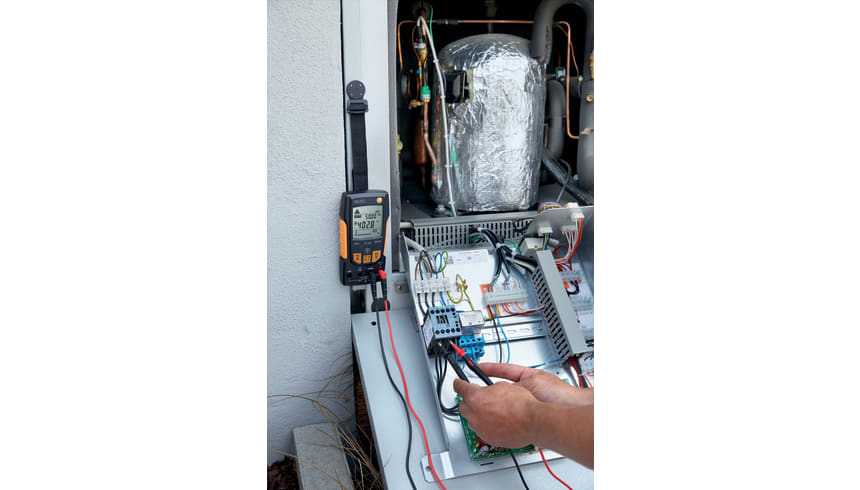

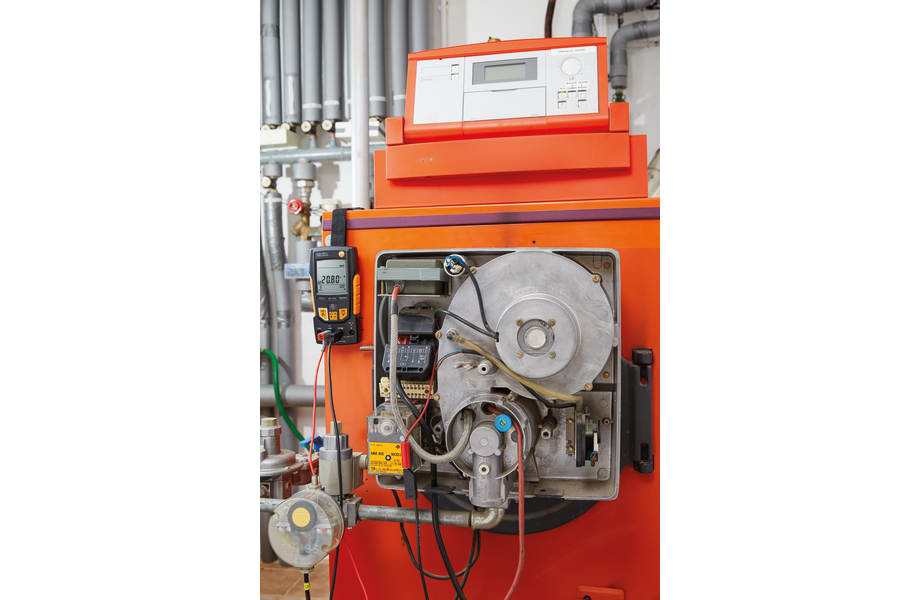

    • Testing voltage supply in live wires, current measurement in the lower measuring range, testing voltage supply for frequency-controlled motors, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking
