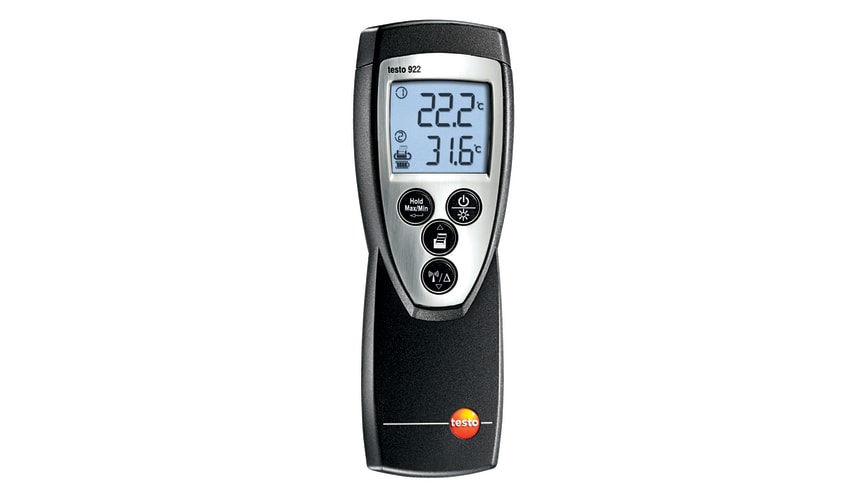

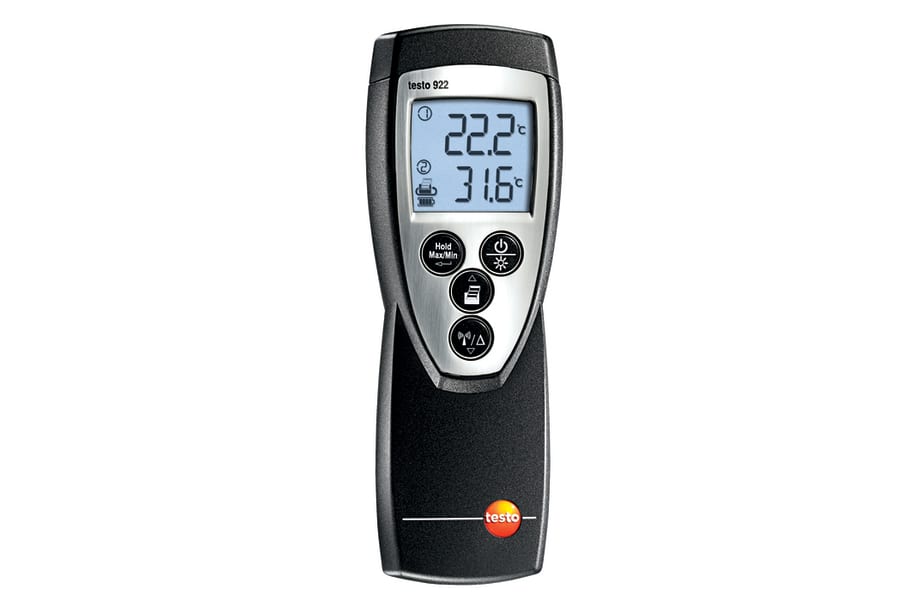

testo 922 - Digital temperature meter

Order-Nr.  0560 9221

  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
This meter uses a sensor to start up. Click here for probe selection.
Buy now
Inquiry
+358 (0)9 4282 7940

  • Temperature measurements and temperature difference display

  • Wide measuring range from -50 °C to 1 000 °C

  • Connecting points for two type K temperature sensors; wireless connectivity for a third temperature sensor

  • Wide range of optional sensors

Product no longer available. Have you checked out its successor?
Why not enjoy the benefits that it has to offer: >> To the product

Details

Product Description

The testo 922 digital temperature meter measures temperatures and determines the temperature difference in a matter of seconds. The meter comes with connecting points for up to two temperature sensors and wireless connectivity for a third sensor.


At-a-glance look at all the features

  • Connecting points for 2 optional type K temperature sensors
  • Wireless connectivity for a third temperature sensor
  • Temperature values and temperature difference directly visible in display
  • Permanent display of min and max values
  • Hold function that freezes the last reading


The testo 922 digital temperature meter – accessories and sensors

  • There is a wide selection of optional temperature and wireless sensors to help you carry out your temperature measurements
  • The testo protocol printer allows you to print out on site; the cyclic printing can be used in  adjustable (i.e. one-minute) intervals

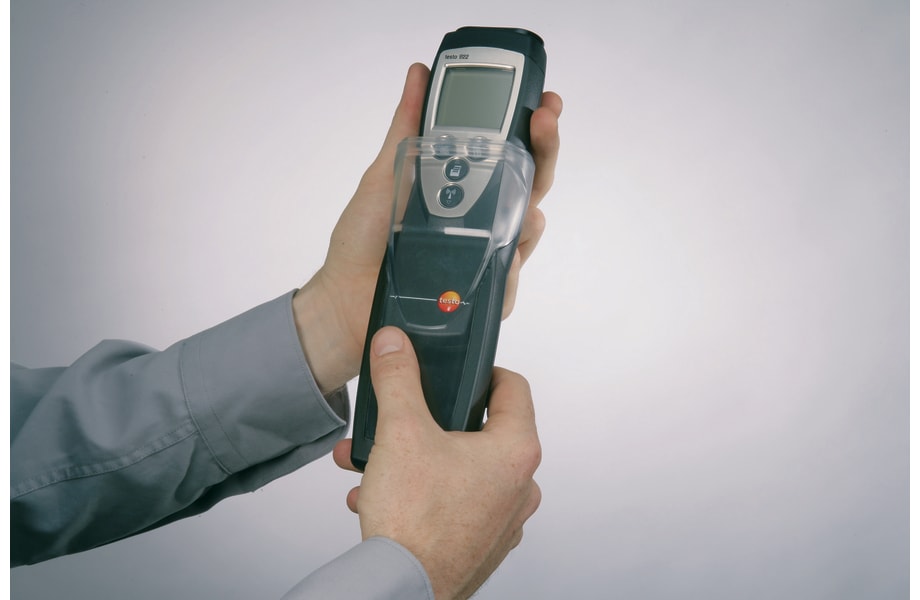

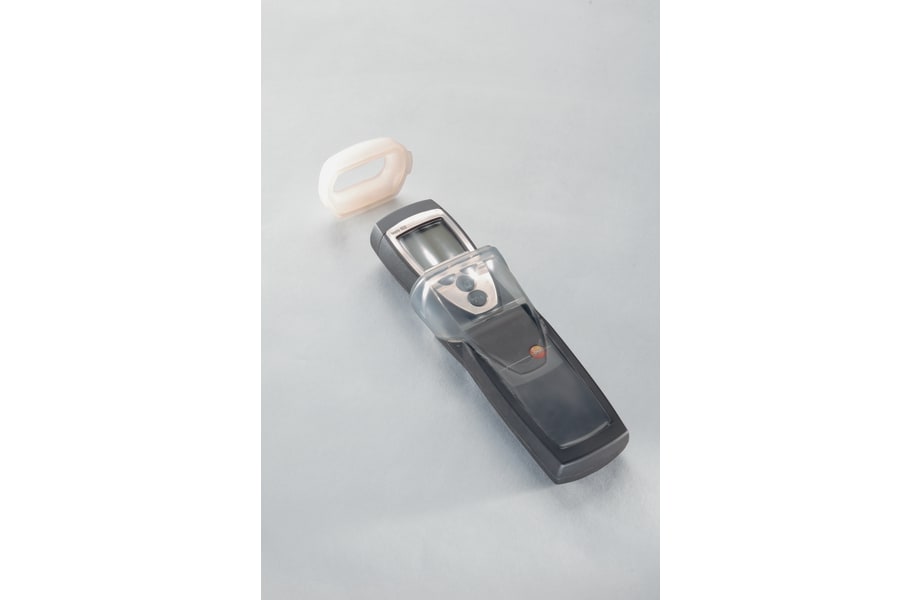

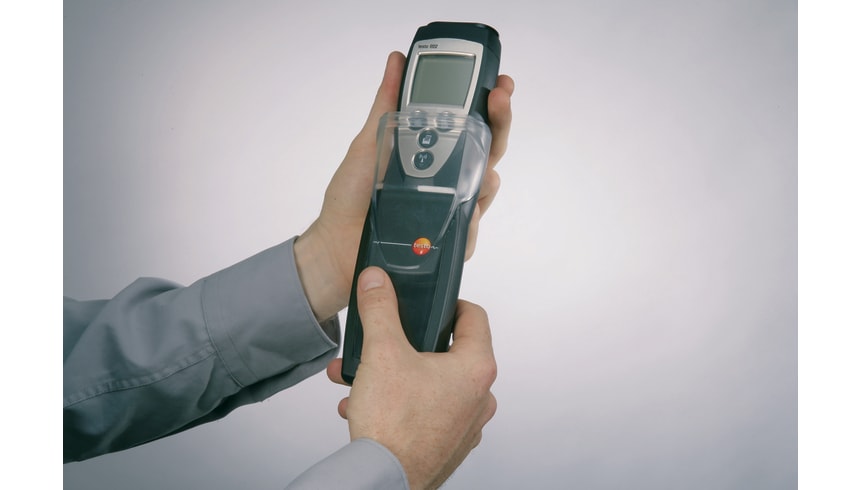

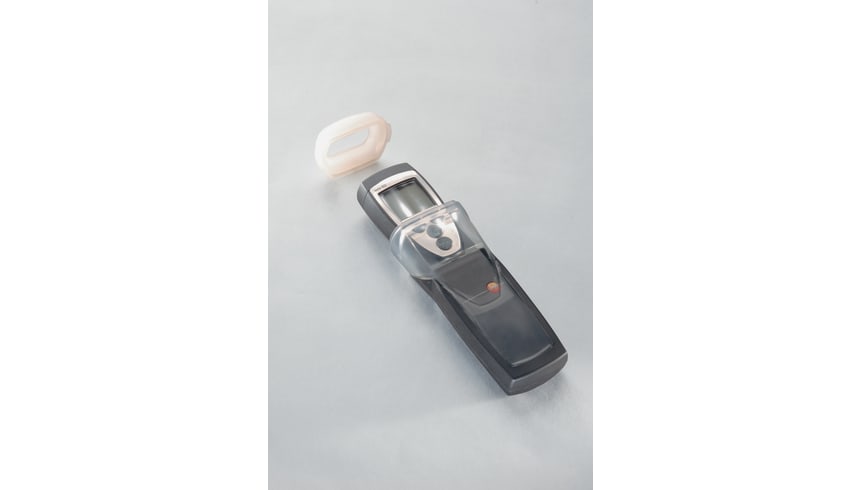

  • The durable, IP65 rated TopSafe protective case protects you digital temperature meter against impact and dirt and water ingress


The testo 922 digital temperature meter – areas of application

Professionals in the fields of heating, plumbing and air conditioning are quick to appreciate the benefits which the compact, easy-to-use testo 922 digital temperature meter has to offer. The testo 922 measures temperatures quickly and accurately and determines the temperature difference directly. This allows you to carry out your inspections and checks quickly and efficiently. There’s also an optional testo turbo printer which allows you to print out on site.

Delivery Scope

testo 922 digital temperature meter, calibration protocol, batteries.

Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +1000 °C

Accuracy

±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)

±(0.7 °C + 0.5 % of mv) (Remaining Range)

Resolution

0.1 °C (-50 to +199.9 °C)

1 °C (Remaining Range)
General technical data

Weight

171 g

Dimensions

182 x 64 x 40 mm

Operating temperature

-20 to +50 °C

Product-/housing material

ABS

Number of channels

2-channel

Battery type

9V block battery, 6F22

Battery life

200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)

Storage temperature

-40 to +70 °C

Probes

Air probes

Cross-Seller Robuster Luftfühler, TE Typ K
Robust air temperature probe (TC type K) – measuring range: -60 to +400 °C

Order Number: 0602 1793

Immersion/penetration probe for food measurements

Cross-Seller Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)
Waterproof stainless steel food probe (TC type K) - measuring range: -60 to +400°C

Order Number: 0602 2292

Cross-Seller Wasserdichter Tauch-/Einstechfühler mit Metallschutzschlauch
Waterproof, robust immersion/penetration probe (TC type K) - measuring range: -50 to +230°C

Order Number: 0628 1292

Surface probes

Cross-Seller Fast-reaction paddle surface probe
Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C

Order Number: 0602 0193

Cross-Seller Fast-action surface probe with sprung thermocouple strip
Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C

Order Number: 0602 0393

Cross-Seller Waterproof surface probe with widened measurement tip
Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C

Order Number: 0602 1993

Cross-Seller Fast-action surface probe with sprung thermocouple strip
Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C

Order Number: 0602 0993

Cross-Seller Efficient, waterproof surface probe with small measurement head
Ordertext Online de Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Order Number: 0602 0693

Cross-Seller Flat head surface probe with telescopic handle max. 680 mm
Surface temperature probe (TC Type K) with telescope

Order Number: 0602 2394

Cross-Seller Magnetic probe (TC type K) - for surface temperatures
Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C

Order Number: 0602 4792

Cross-Seller Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C

Order Number: 0602 4892

Cross-Seller Pipe wrap probe with velcro strip
Temperature probe with Velcro (TC Type K)

Order Number: 0628 0020

Cross-Seller Pipe wrap probe for pipe diameter 5 to 65 mm
Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C

Order Number: 0602 4592

Cross-Seller Clamp probe for measurements on pipes
Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C

Order Number: 0602 4692

Cross-Seller T/C probe head for surface measurement
T/C probe head for surface measurement (T/C Type K)

Order Number: 0602 0394

Thermocouples

Cross-Seller Thermocouple with TC adapter, flexible, 800 mm long
Flexible thermoelectric couple (TC type K, glass fibre) – Measuring range: -50 to +400°C

Order Number: 0602 0644

Cross-Seller Thermocouple with TC adapter, flexible, length 1500 mm
Flexible thermoelectric couple (TC type K, glass fibre) – measuring range -50 to +400°C

Order Number: 0602 0645

Cross-Seller Thermocouple with TC adapter, flexible, 1500 mm long, PTFE
Flexible thermoelectric couple (TC type K, PTFE) – measuring range -50 to +250°C

Order Number: 0602 0646

immersion/ penetration probes

Cross-Seller Efficient and fast-action immersion probe, waterproof
Flexible, fast-action immersion probe (TC type K) – measuring range: -60 to +1000 °C

Order Number: 0602 0593

Cross-Seller Fast-action, waterproof immersion/penetration probe
Fast-action immersion/penetration probe (TC type K) – measuring range: -60 to +800 °C

Order Number: 0602 2693

Cross-Seller Tauch-Messspitze, biegsam, TE Typ K
Immersion measuring tip with TC plug type K - for fast temperature measurements

Order Number: 0602 5792

Cross-Seller Immersion measurement tip, flexible, for measurements in air
Flexible immersion measuring tip (TC type K) - Measuring range: -40 to +1000°C

Order Number: 0602 5693

Cross-Seller Immersion tip, flexible, TC Type K
Flexible immersion measuring tip (TC type K, class 3) - measuring range -200 to +40°C

Order Number: 0602 5793

Cross-Seller Waterproof immersion/penetration probe, TC Type K
Waterproof immersion/penetration probe (TC type K) – measuring range -60 to +400 °C

Order Number: 0602 1293

Cross-Seller T/C probe head for air/immersion/penetration measurement
T/C probe head for air/immersion/penetration measurement (T/C Type K)

Order Number: 0602 0293

Applications

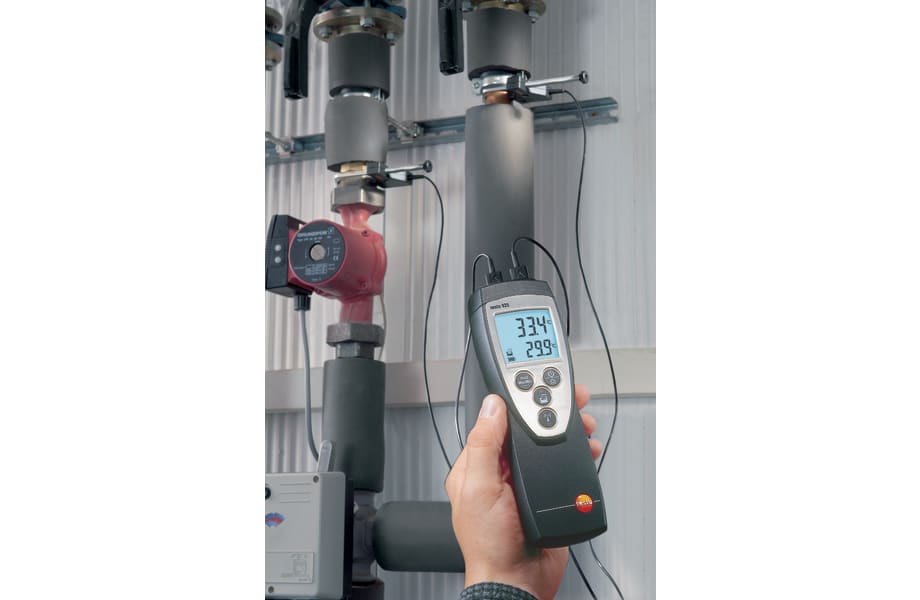

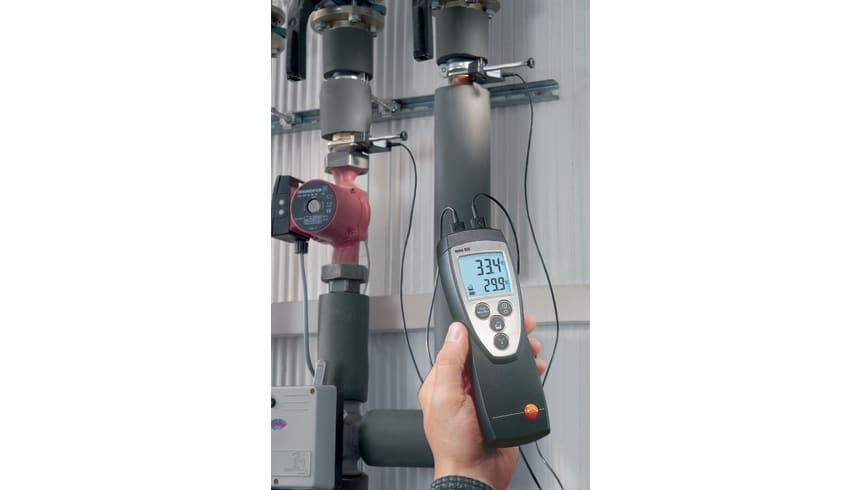

Flow and return temperature measurement on heating systems

To ensure the heating system is set correctly and efficiently, the flow and return temperatures must be measured. If it is not set correctly, either the requisite heat will not be provided or too much energy will be injected into an overly high flow temperature, i.e. the output from the energy is poor.

testo 922 advantages:

  • Quick and easy measurement of the differential temperature with pipe wrap probes
  • Also optionally available with radio probes for wireless measurement
  • Display of minimum and maximum measuring values
  • Immediate printing of measuring values via optional wireless printer
