testo 300 Intermediate Kit

530564 3071

testo 300 Intermediate Kit - Flue gas analyzer (O₂, CO up to 4,000 ppm)

530564 3071

testo 300 Intermediate Kit - Flue gas analyzer (O₂, CO up to 4,000 ppm)

With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 flue gas analyzer is supplied with O₂ and CO sensor up to 4,000 ppm, basic flue gas probe, instrument case and practical accessories.

Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously
Practical second screen function and easy data integration into user-specific software
In the kit: testo 300 NEXT LEVEL flue gas analyzer, including O₂ and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, spare dirt filters, EasyHeat software, instrument case

: 0633 3002 70

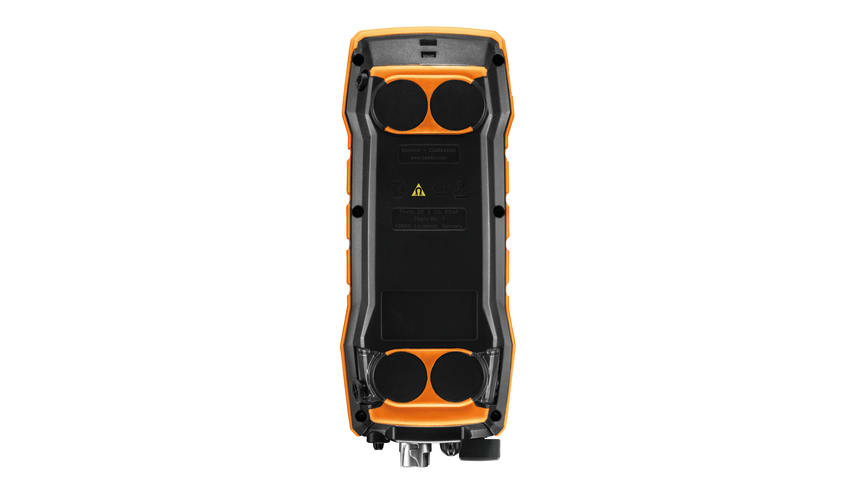

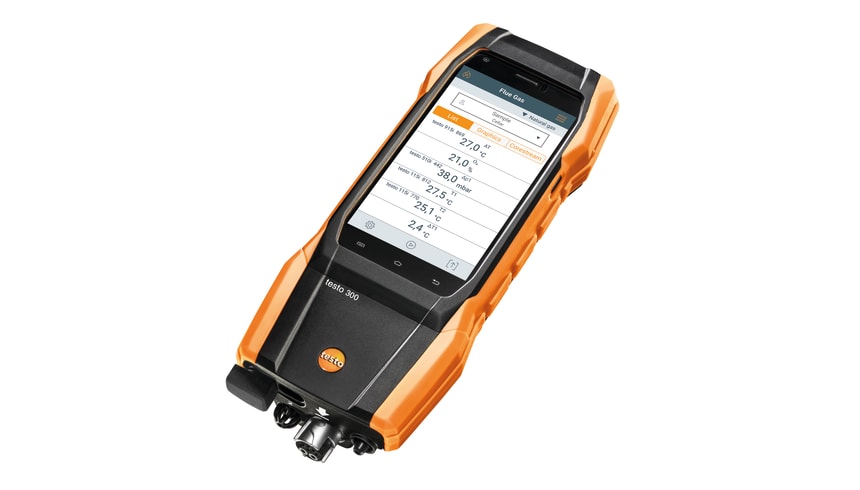

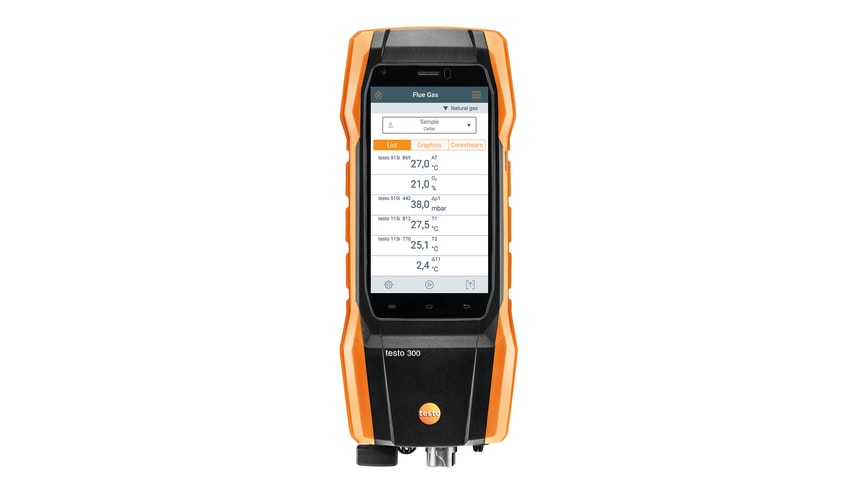

testo 300 - Flue gas analyzer (O₂, CO up to 4,000 ppm)

Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone

: 0554 3385

Spare particle filter, 10 off

Reliable protection against dirt

: 0600 8764

Modular flue gas probe, 335 mm, Ø 8 mm, Tmax 1000 °C

Easy probe shaft replacement via quick-change click system

: 0516 3300

Instrument case (height: 130 mm) - for instrument, probes and accessories

: 0554 1106

USB mains unit with cable

For the external power supply

testo 300 - Flue gas analyzer (O₂, CO up to 4,000 ppm)

0633 3002 70

Temperature - TC Type K (NiCr-Ni)

Temperature - TC Type K (NiCr-Ni)	Measuring range -40 to +1200 °C
	Accuracy ±0.5 % of mv (Remaining Range) ±0.5 °C (0.0 to +100.0 °C)
	Resolution 1 °C (Remaining Range) 0.1 °C (-40 to +999.9 °C)

Differential Pressure - Piezoresistive

Differential Pressure - Piezoresistive	Measuring range -100 to +200 hPa
	Accuracy ±1 % of mv (+50.1 to +100.0 hPa) ±0.5 hPa (0 to +50.0 hPa) ±1.5 % of mv (+100.1 to +200 hPa)
	Resolution 0.01 hPa

Flue gas O₂

Flue gas O₂	Measuring range 0 to 21 Vol.%
	Accuracy ±0.2 Vol.%
	Resolution 0.1 Vol.%

Differential Pressure flue gas Draught - Piezoresistive

Differential Pressure flue gas Draught - Piezoresistive	Measuring range -9.99 to +40 hPa
	Accuracy ±0.02 hPa (+0.1 to +3.00 hPa) ±1.5 % of mv (3.01 to +40 hPa) ±0.005 hPa (+0 to +0.1 hPa)
	Resolution 0.001 hPa (0 to 0.1 hPa) 0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)

Flue gas degree of effectivity, Eta (calculated)	Measuring range 0 to 120 %
Flue gas degree of effectivity, Eta (calculated)	Resolution 0.1 %

Flue gas loss (calculated)

Flue gas loss (calculated)	Measuring range 0 to 99.9 %
Flue gas loss (calculated)	Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Flue gas CO₂ calculation (calculated from O₂)	Measuring range Display range 0 to CO₂ max
	Accuracy ±0.2 Vol.%
	Resolution 0.1 Vol.%

Flue gas CO (without H₂-compensation)

Flue gas CO (without H₂-compensation)	Measuring range 0 to 4000 ppm
	Accuracy ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm)
	Resolution 1 ppm

Ambient CO

Ambient CO	Measuring range 0 to 2000 ppm
	Accuracy ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm)
	Resolution 1 ppm

General technical data

General technical data	Operating humidity 15 to 90 %RH non-condensing
	Weight approximately 800 g
	Dimensions 244 (including probe connection) x 98 x 59 mm (LxWxH)
	Operating temperature -5 to +45 °C
	Protection class IP40
	Product colour black/orange
	Display type 5.0" touch display, HD 1280*720 pixels, IPS (160 k)
	Power supply Rechargeable battery, USB mains unit
	Warranty conditions https://www.testo.com/guarantee
	Authorizations TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
	Guarantee Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months
	Memory 1,000,000 measuring values
	Battery life 10 h
	Storage battery type Lithium ion battery
	Storage temperature -20 to +50 °C
	Charging temperature 0 to +45 °C

Differential Pressure 4 Pa measurement - Piezoresistive

Differential Pressure 4 Pa measurement - Piezoresistive	Measuring Range -50 to +50 Pa
	Accuracy ±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range)
	Resolution 0.1 Pa

Spare particle filter, 10 off

0554 3385

General technical data

General technical data	Weight 12 g
	Dimensions height: 2.9 mm, ø: 29.7 mm
	Product colour white

Modular flue gas probe, 335 mm, Ø 8 mm, Tmax 1000 °C

0600 8764

General technical data

General technical data	Weight 606 g
	Length probe shaft 335 mm
	Product-/housing material Metal housing
	Cable length 2.2 m
	Diameter probe shaft 8 mm
	Product colour Black; silver
	Temperature maximum 1,000 °C
	Connection Bayonet

Instrument case (height: 130 mm) - for instrument, probes and accessories

0516 3300

General technical data

General technical data	Weight 3880 g
	Dimensions 520 x 400 x 130 mm (LxWxH)
	Product-/housing material Plastic
	Product colour Black

USB mains unit with cable

0554 1106

General technical data

General technical data	Weight 144 g
	Dimensions 85 x 55 x 90 mm LxWxH
	Product colour Black
	Cable length 2 m
	Power supply 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo 300 flue gas analyzer with O₂ and CO sensor up to 4,000 ppm (0633 3002 70)
Flue gas probe modular, 300 mm (0600 9763)
Probe filters (0554 3385)
System case (0516 3300)
BT / IrDa printer (0554 0621) (incl. mains unit 0554 1106)

CO probes

: 0632 1272

CO probe (digital) - wired

Intuitive: clearly structured measurement menu for long-term measurement and determination of CO concentration in indoor areas, e.g. in boiler rooms

Flue gas probes

: 0600 9760

Modular flue gas probe, 180 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

Easy probe shaft replacement via quick-change click system

: 0600 9761

Modular flue gas probe - 300 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

Easy probe shaft replacement via quick-change click system

: 0600 9762

Modular flue gas probe, 180 mm, Ø 6 mm, Tmax 500°C

Easy probe shaft change via quick-change click system

: 0600 9763

Modular flue gas probe - 300 mm, Ø 6 mm, Tmax 500°

Easy probe shaft change via quick-change click system

: 0600 9740

Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500 °C

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

: 0600 9741

Compact basic flue gas probe - 300 mm, Ø 6 mm, Tmax 500 °C

Flue gas path, draught path and temperature probe can be connected via a single probe coupling

Further probes

: 0632 1260

Dual wall clearance probe for O2 supply air measurement

Detection of leaks and blockages in the dual wall clearance

: 0600 9765

Solid fuel set (probe shaft, adapter)

Ideal for precise solid fuel measurements

Temperature probes

: 0600 9799

Combustion air temperature probe

Flexible positioning (immersion depth 190 mm, cable length 2.2 m)

Sets

: 0564 3002 71

testo 300 NEXT LEVEL kit 2 with printer - Flue gas analyzer (O₂, CO up to 4,000 ppm)

Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display

: 0564 3002 70

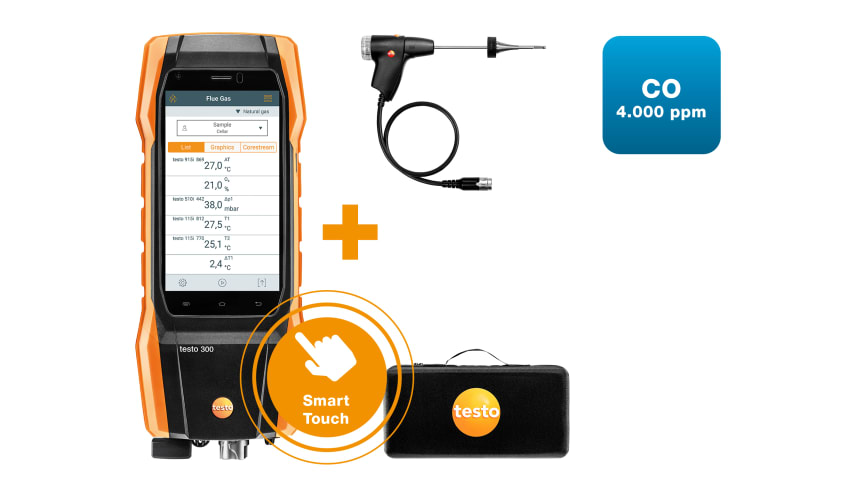

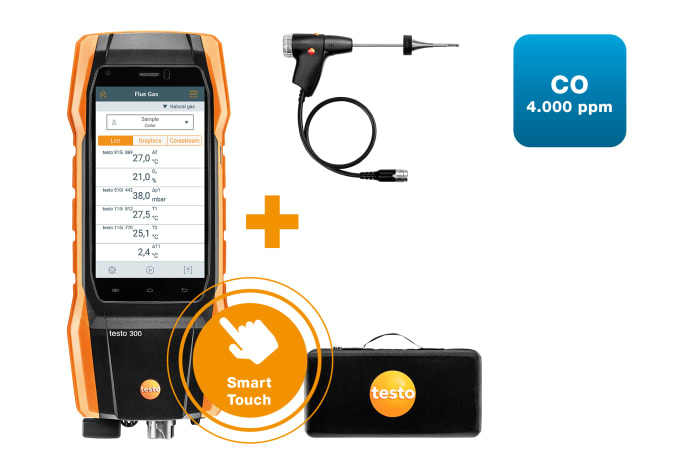

testo 300 NEXT LEVEL kit 1 - Flue gas analyzer (O₂, CO up to 4,000 ppm)

Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

Data sheet testo 300(3.28 MB)

Firmware / App testo 300(FW 1.10.8784, BTG 0.3.8, APP 12.7.31.20326, 43.94 MB)
testo usb driver - for various measuring instruments(v2.9.1, 2.02 MB)
USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845

Accessories

Smoke tester with oil, soot sheet, for measuring soot in flu...

: 0554 0307

Smoke tester with oil and soot sheet, for measuring soot in ...

Smoke tester with oil and soot sheet, for measuring soot in flue gas

: 0554 3332

testo EasyHeat v2.12 SP7 - PC software

PC software for reading out the data from corresponding Testo measuring instruments

: 0516 3300

Instrument case (height: 130 mm) - for instrument, probes and accessories

: 0554 1203

Hose connection set for separate gas pressure measurement te...

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

: 0554 1213

Pressure set for testing gas line

Versatile: Suitable for leak and serviceability tests.

Measurement cells

: 0393 0051

CO sensor (without H2 compensation) - with 4-year warranty

CO sensor (without H₂ compensation) with 4-year warranty

: 0393 0101

CO sensor (H2-compensated) - with 4-year warranty

CO sensor, (H₂-compensated) with 4-year warranty

: 0393 0151

NO sensor
