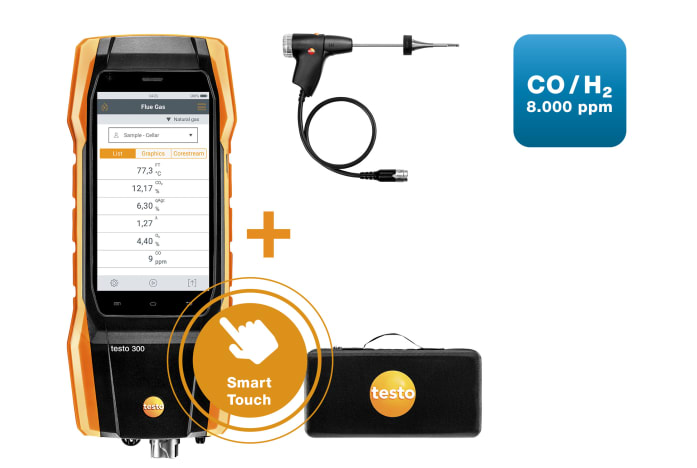

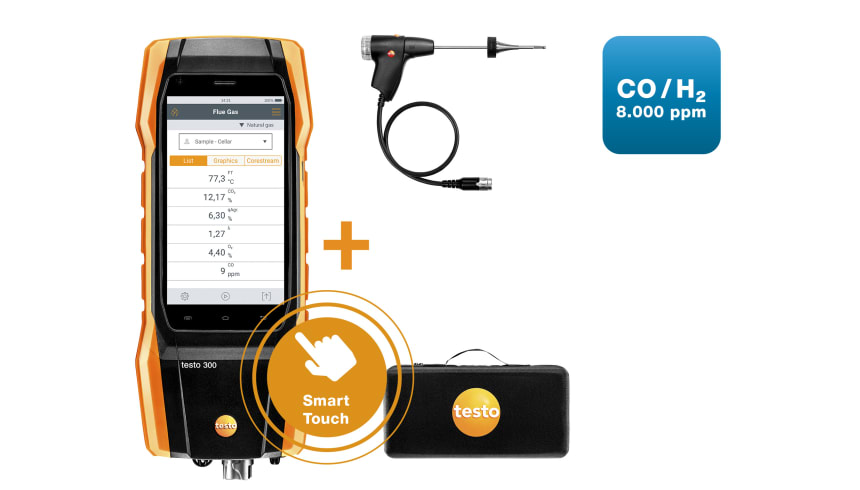

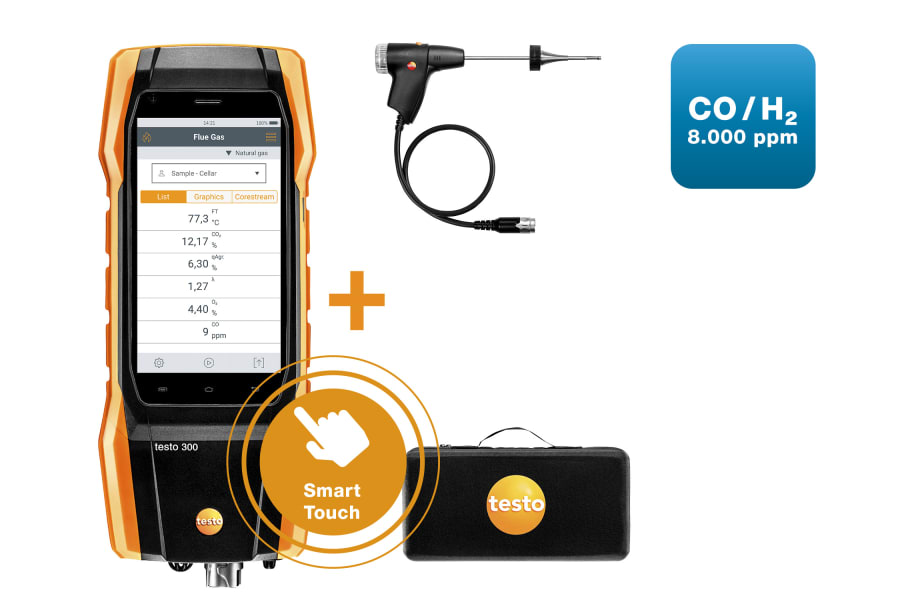

testo 300 NEXT LEVEL kit 2

0564 3002 72

testo 300 NEXT LEVEL kit 2 - flue gas analyzer (O₂, CO H₂-compensated up to 8,000 ppm)

0564 3002 72

testo 300 NEXT LEVEL kit 2 - flue gas analyzer (O₂, CO H₂-compensated up to 8,000 ppm)

With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 NEXT LEVEL flue gas analyzer is supplied with O₂ and CO H₂-compensated sensor up to 8,000 ppm, basic flue gas probe, testo Bluetooth^® Connector, instrument bag and practical accessories.

Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously
Practical second screen function and easy data integration into user-specific software
In the kit: testo 300 NEXT LEVEL flue gas analyzer, including O₂ and CO H₂-compensated sensor up to 8,000 ppm, mains unit, basic flue gas probe, testo Bluetooth^® Connector, spare dirt filters, EasyHeat software, instrument bag

: 0633 3002 71

testo 300 - Flue gas analyzer (O₂, CO H₂-compensated up to 8,000 ppm)

Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone

: 0600 9740

Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500 °C

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

: 0554 0040

Spare particle filter, compact probe; 10 off

: 0554 3332

testo EasyHeat v2.12 SP7 - PC software

PC software for reading out the data from corresponding Testo measuring instruments

: 0554 1106

USB mains unit with cable

For the external power supply

: 0554 3004

testo Bluetooth^® Connector

Bluetooth connection from the testo 300 flue gas analyzer to testo Smart Probes

testo 300 - Flue gas analyzer (O₂, CO H₂-compensated up to 8,000 ppm)

0633 3002 71

Temperature - TC Type K (NiCr-Ni)

Temperature - TC Type K (NiCr-Ni)	Measuring range -40 to +1200 °C
	Accuracy ±0.5 % of mv (Remaining Range) ±0.5 °C (0.0 to +100.0 °C)
	Resolution 1 °C (Remaining Range) 0.1 °C (-40 to +999.9 °C)

Differential Pressure - Piezoresistive

Differential Pressure - Piezoresistive	Measuring range -100 to +200 hPa
	Accuracy ±1 % of mv (+50.1 to +100.0 hPa) ±0.5 hPa (0 to +50.0 hPa) ±1.5 % of mv (+100.1 to +200 hPa)
	Resolution 0.01 hPa

Flue gas O₂

Flue gas O₂	Measuring range 0 to 21 Vol.%
	Accuracy ±0.2 Vol.%
	Resolution 0.1 Vol.%

Flue gas CO (with H₂-compensation)

Flue gas CO (with H₂-compensation)	Measuring range 0 to 8000 ppm
	Accuracy ±10 ppm or ±10 % of mv (0 to 200 ppm) ±10 % of mv (2001 to 8000 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm)
	Resolution 1 ppm

Differential Pressure flue gas Draught - Piezoresistive

Differential Pressure flue gas Draught - Piezoresistive	Measuring range -9.99 to +40 hPa
	Accuracy ±0.02 hPa (0.1 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40 hPa) ±0.005 hPa (0 to 0.1 hPa)
	Resolution 0.001 hPa (0 to 0.1 hPa) 0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)

Flue gas degree of effectivity, Eta (calculated)	Measuring range 0 to 120 %
Flue gas degree of effectivity, Eta (calculated)	Resolution 0.1 %

Flue gas loss (calculated)

Flue gas loss (calculated)	Measuring range 0 to 99.9 %
Flue gas loss (calculated)	Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Flue gas CO₂ calculation (calculated from O₂)	Measuring range Display range 0 to CO₂ max
	Accuracy ±0.2 Vol.%
	Resolution 0.1 Vol.%

Ambient CO

Ambient CO	Measuring range 0 to 2000 ppm
	Accuracy ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm)
	Resolution 1 ppm

General technical data

General technical data	Operating humidity 15 to 90 %RH non-condensing
	Weight approximately 800 g
	Dimensions 244 (including probe connection) x 98 x 59 mm (LxWxH)
	Operating temperature -5 to +45 °C
	Protection class IP40
	Product colour black/orange
	Display type 5.0" touch display, HD 1280*720 pixels, IPS (160 k)
	Power supply Rechargeable battery, USB mains unit
	Warranty conditions https://www.testo.com/guarantee
	Authorizations TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
	Guarantee Gas sensors (O₂, CO) 24 months; Thermocouple 12 months; rechargeable battery: 12 months
	Memory 1,000,000 measuring values
	Battery life 10 h
	Storage battery type Lithium ion battery
	Storage temperature -20 to +50 °C
	Charging temperature 0 to +45 °C

Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500 °C

0600 9740

General technical data

General technical data	Diameter probe shaft 6 mm
	Cable length 1.5 m
	Length probe shaft 180 mm
	Product colour Black
	Temperature maximum 500 °C
	Diameter 6 mm
	Weight 346 g

testo EasyHeat v2.12 SP7 - PC software

0554 3332

General technical data

General technical data	System requirements Windows® 7; Windows® 8; Windows® 10

USB mains unit with cable

0554 1106

General technical data

General technical data	Weight 144 g
	Dimensions 85 x 55 x 90 mm LxWxH
	Product colour Black
	Cable length 2 m
	Power supply 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo Bluetooth^® Connector

0554 3004

General technical data

General technical data	Battery life None, operated via testo 300
	Connection TUC 1 or TUC 2
	Radio range 100 m
	compatible with testo 510i, testo 115i, testo 915i

testo 300 NEXT LEVEL flue gas analyzer with O₂ and CO H₂-compensated sensor up to 8,000 ppm (0633 3002 71)
USB mains unit, including cable (0554 1106)
Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
Spare dirt filters, compact probe; 10 off (0554 0040)
testo Bluetooth^® Connector (0554 3004)
Free download EasyHeat PC software (0554 3332)
Instrument bag (0516 3001)

CO probes

: 0632 1272

CO probe (digital) - wired

Intuitive: clearly structured measurement menu for long-term measurement and determination of CO concentration in indoor areas, e.g. in boiler rooms

Flue gas probes

: 0600 9760

Modular flue gas probe, 180 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

Easy probe shaft replacement via quick-change click system

: 0600 9761

Modular flue gas probe - 300 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

Easy probe shaft replacement via quick-change click system

: 0600 9762

Modular flue gas probe, 180 mm, Ø 6 mm, Tmax 500°C

Easy probe shaft change via quick-change click system

: 0600 9763

Modular flue gas probe - 300 mm, Ø 6 mm, Tmax 500°

Easy probe shaft change via quick-change click system

: 0600 9740

Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500 °C

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

: 0600 9741

Compact basic flue gas probe - 300 mm, Ø 6 mm, Tmax 500 °C

Flue gas path, draught path and temperature probe can be connected via a single probe coupling

Further probes

: 0632 1260

Dual wall clearance probe for O2 supply air measurement

Detection of leaks and blockages in the dual wall clearance

: 0600 9765

Solid fuel set (probe shaft, adapter)

Ideal for precise solid fuel measurements

Temperature probes

: 0600 9799

Combustion air temperature probe

Flexible positioning (immersion depth 190 mm, cable length 2.2 m)

Sets

: 0564 3002 72

testo 300 NEXT LEVEL kit 2 - flue gas analyzer (O₂, CO H₂-compensated up to 8,000 ppm)

Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

Testo ZIV driver for testo 300, testo 320 and testo 330(v2.3, 64.11 MB)
The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
Firmware / App testo 300(FW 1.10.8784, BTG 0.3.8, APP 12.7.31.20326, 43.94 MB)
Instruction manual EasyHeat software(3.55 MB)

Accessories

Smoke tester with oil, soot sheet, for measuring soot in flu...

: 0554 0307

Smoke tester with oil and soot sheet, for measuring soot in ...

Smoke tester with oil and soot sheet, for measuring soot in flue gas

: 0554 3332

testo EasyHeat v2.12 SP7 - PC software

PC software for reading out the data from corresponding Testo measuring instruments

: 0516 3300

Instrument case (height: 130 mm) - for instrument, probes and accessories

: 0554 1203

Hose connection set for separate gas pressure measurement te...

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

: 0554 1213

Pressure set for testing gas line

Versatile: Suitable for leak and serviceability tests.

: 0554 1106

USB mains unit with cable

For the external power supply

Measurement cells

: 0393 0051

CO sensor (without H2 compensation) - with 4-year warranty

CO sensor (without H₂ compensation) with 4-year warranty

: 0393 0101

CO sensor (H2-compensated) - with 4-year warranty

CO sensor, (H₂-compensated) with 4-year warranty

: 0393 0151

NO sensor

testo 300 NEXT LEVEL kit 2 - flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm)
