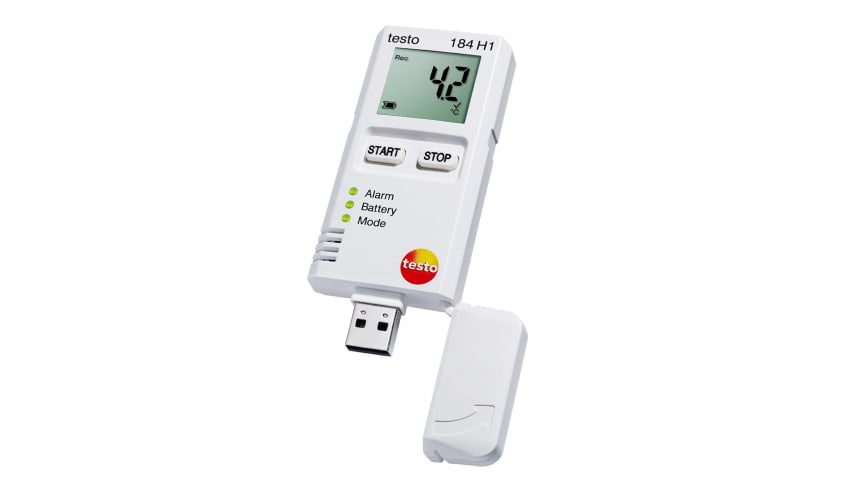

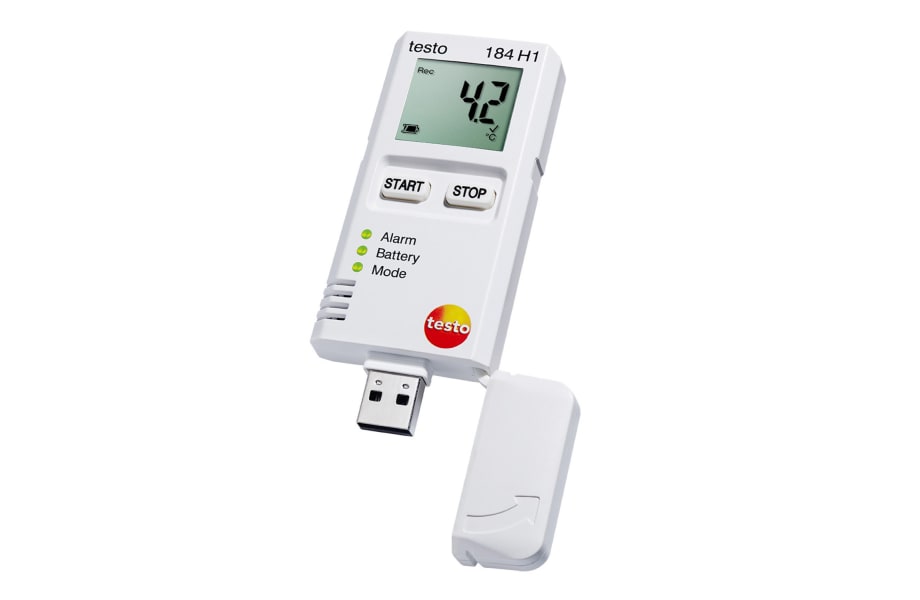

testo 184 H1 - Air humidity and temperature data logger for transport monitoring

Order-Nr.  0572 1845

  • Unlimited operating time

  • All in one logger: PDF measurement data, configuration file and instruction manual

  • Immediate creation of a PDF report directly after connection to a computer

  • Compliant with GxP, 21 CFR Part 11 and HACCP

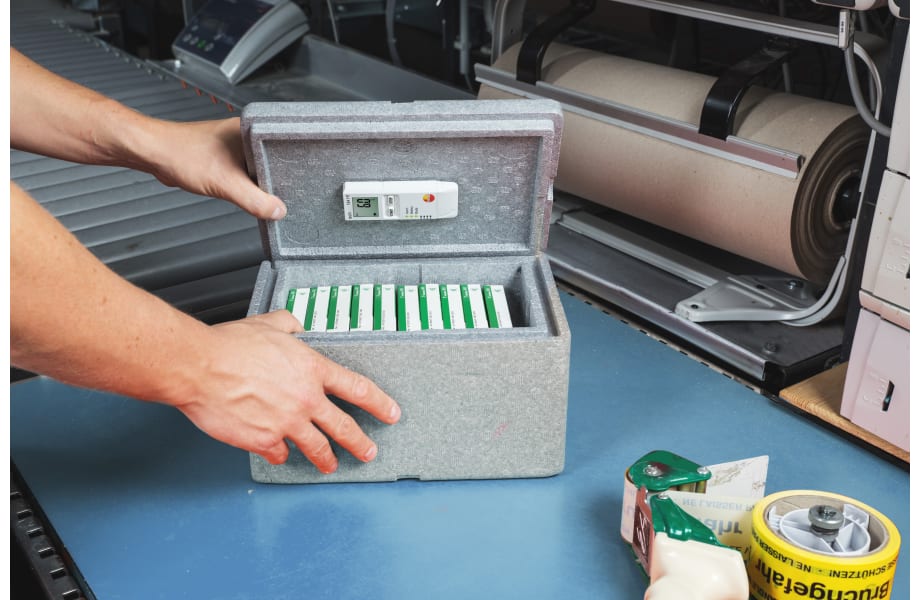

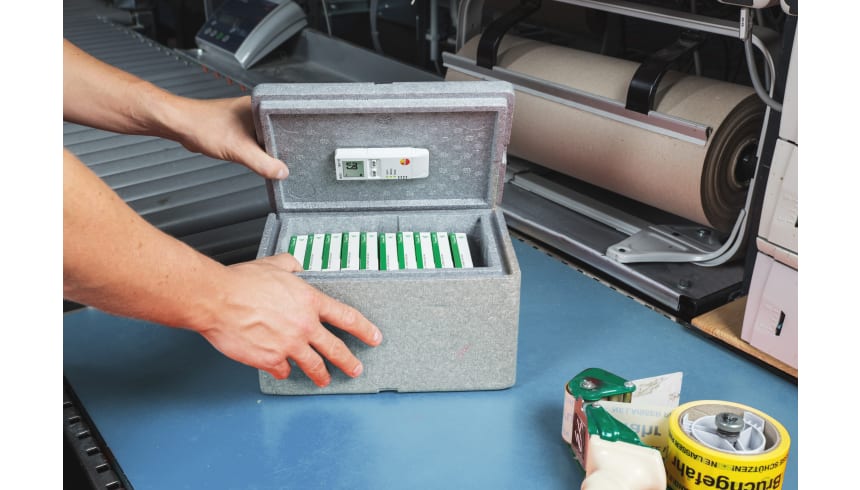

With the testo 184 H1 data logger for humidity and temperature, you can now monitor the transport of sensitive products, such as food, pharmaceuticals, electronic items or artwork, both safely and conveniently. A start and stop button means the humidity data logger guarantees really easy operation for data recording. At the destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to during transport.

Product Description

With the temperature and humidity data loggers testo 184 H1, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics or art, over an unlimited period.

At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 H1: Configuration file, instruction manual and PDF report of your recorded data.

The measurement value store of the temperature data logger testo 184 H1 has a capacity of 64000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 500 days. The temperature data logger testo 184 H1 is supplied by a standard battery which can be exchanged by the user.

testo 184 H1 is compliant with GxP, 21 CFR Part 11 and HACCP. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.



All advantages at a glance:

1. Clear alarm indication
A glance at the display or the LEDs is enough to know whether limit values have been violated during transport.
2. Easiest operation
testo 184 H1 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.
3. Easiest configuration
In each testo 184 H1, a configuration file is stored, with which the configuration of the testo 184 H1 is childsplay – no download, no installation, no user interface and no additional costs.
4. Convenient readout
A PDF report with the transport data is created immediately on connection of the testo 184 H1 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.
5. Mobile readout/printout on site
Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.
6. IT-safe
The testo 184 H1 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.



Delivery Scope

Temperature and humidity data logger testo 184 H1 and battery.
Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C (0 to +70 °C)

±0.8 °C (-20 to 0 °C)

Resolution

0.1 °C

Reaction time

t₉₀ = 30 min

Measuring rate

1 min to 24 h

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH)

±0.03 %RH/K (at 0 to 60 °C)

±1 %rF Hysterese

±1 %rF/year Drift

Resolution

0.1 %RH

Measuring rate

1 min to 24 h

General technical data

Weight

44 g

Dimensions

97 x 40 x 12 mm (LxWxH)

Operating temperature

-20 to +70 °C

Product-/housing material

ABS

Protection class

IP30

System requirements

Adobe® Acrobat Reader

Product colour

white

Standards

CE 2014/30/EU; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)

Certificate type

Certified by HACCP International

Channels

2 internal

Operating time

Unlimited

Authorizations

CE

Alarm function

via LED and Display

Battery type

Lithium battery CR2450, 3V, exchangeable

Battery life

500 days (at +25 °C and 15 mins measurement rate).

Display type

segment LCD

Display size

one-line

Display ligthing

no

Interface

USB; NFC

Memory

64,000 measuring values

Storage temperature

-55 to +70 °C

Monitoring and documentation of temperature and humidity during the transport of flowers

Researchers discovered long ago that the temperature during the transport of cut flowers and green plants has a crucial influence on their quality. Since flowers are traded globally, and as it is not uncommon for flowers from Kenya, Tanzania or Ecuador to be sold in the USA, Germany or Russia, the monitoring of transport conditions during their often days-long journeys is essential.

Flowers must be transported neither too warm not too cold. The former results in the loss of blossoms and leaves, the latter involves cold damage, which negatively influences not only the appearance but also the longevity of the plants. Sufficient air humidity is furthermore also of significance for the quality of the flowers.

With the data loggers testo 184, measuring instruments are now available to you with which you can monitor and document temperature and humidity in the logistics of cut flowers and green plants quickly, easily and reliably.
