    2. testo 300 NEXT LEVEL kit 2 with printer

    testo 300 NEXT LEVEL kit 2 with printer - Flue gas analyzer (O2, CO up to 4,000 ppm)

    0564 3002 71
  1. Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
  2. Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously
  3. Large 5-inch HD display – see all the system's measuring values at a glance

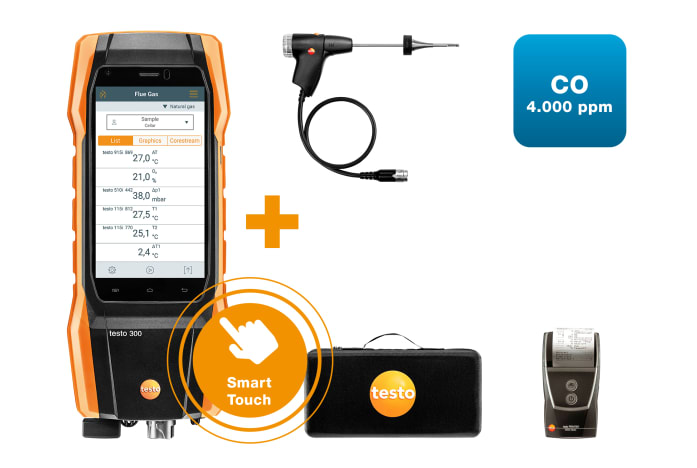

  4. In the kit: testo 300 NEXT LEVEL flue gas analyzer, including O2 and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, testo Bluetooth® Connector, spare dirt filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, instrument case
  5. With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 NEXT LEVEL flue gas analyzer is supplied with O2 and CO sensor up to 4,000 ppm, basic flue gas probe, testo Bluetooth® Connector, testo Bluetooth® printer, instrument case and practical accessories.

    • testo 300 NEXT LEVEL flue gas analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)
    • USB mains unit, including cable (0554 1106)

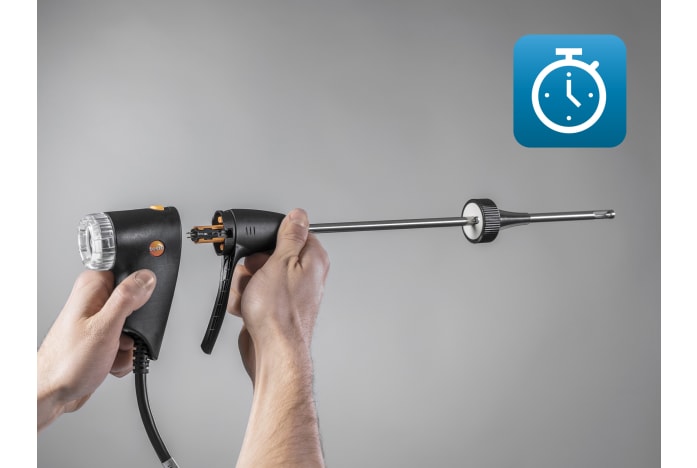

    • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
    • testo Bluetooth® Connector (0554 3004)
    • Spare dirt filters, compact probe; 10 off (0554 0040)

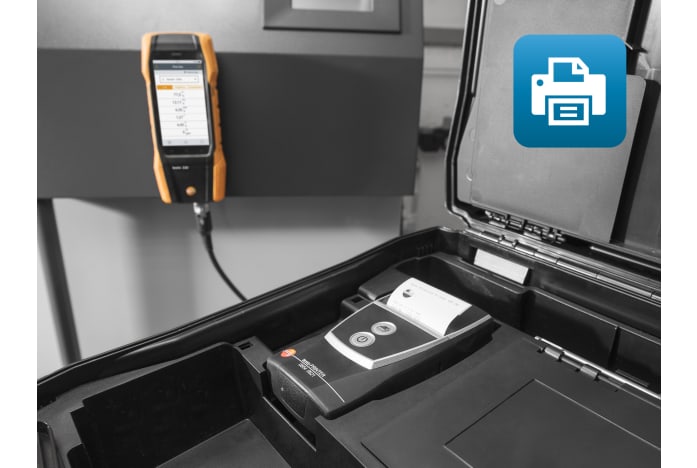

    • BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
    • Spare thermal paper for printer, indelible ink (0554 0568)
    • Free download EasyHeat PC software (0554 3332)
    • Instrument bag (0516 3001)

    CO probes

    Flue gas probes

    Further probes

    Temperature probes

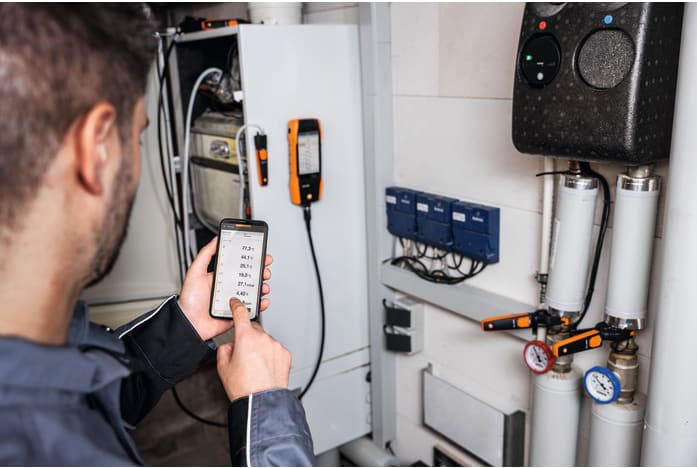

    Flue gas measurement on heating systems

    Ideal for measurements involving heating systems:
    • high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
    Further areas of application:
    • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*
    * Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

    Application testo 300

    • The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
    • Firmware / App testo 300(v1.10.8125, BTG 0.3.8, App 12.7.22.17649, 43.94 MB)
