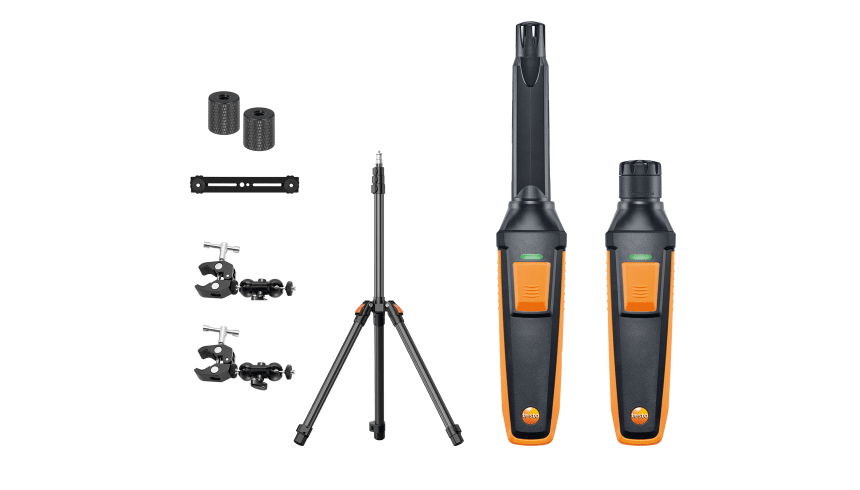

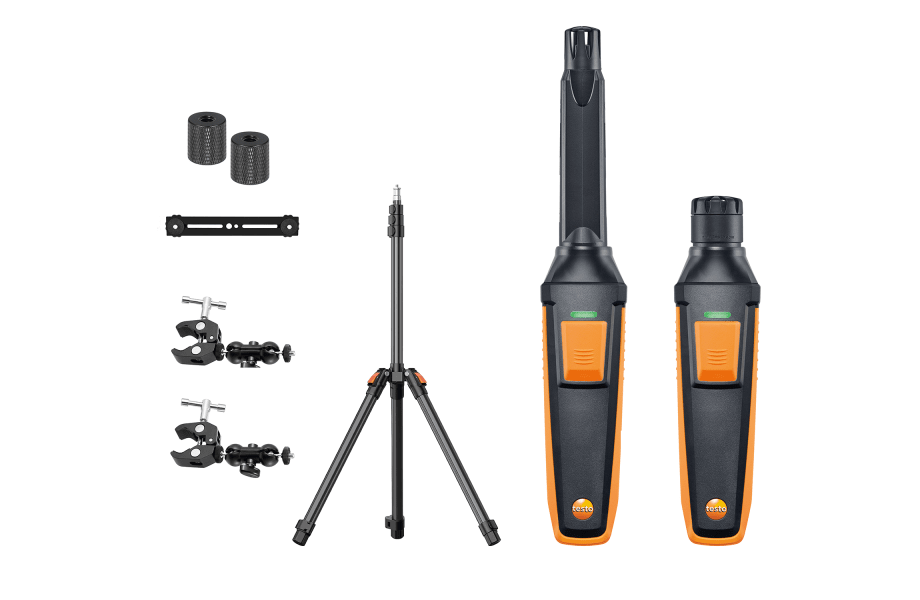

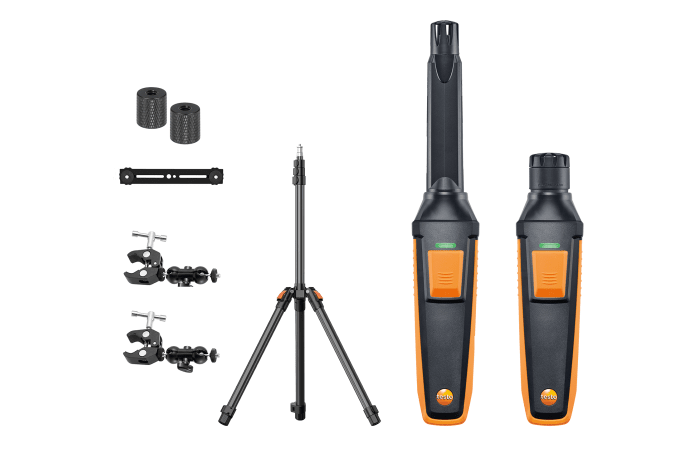

CMDDA1 Kit
300564 4001
CMDDA1 Kit
300564 4001This kit is specifically configured to meet the requirements of the CMDDA1 qualification, ensuring you have all the necessary tools to perform a compliant and professional fume investigation.
The testo CMDDA1 Kit offers a seamless digital workflow by integrating the included probes with the testo Smart App via Bluetooth. This connectivity allows you to view real-time data on your mobile device, perform a detailed diagnosis, and even remotely control the instruments.
The testo CMDDA1 Kit is a comprehensive and essential toolset for qualified gas engineers in the UK who are required to investigate reports of fumes, smells, or carbon monoxide (CO) alarm activations in domestic properties. Designed to meet the requirements of the CMDDA1 (Carbon Monoxide/Dioxide Dwelling Atmosphere and Appliance Testing) qualification, this kit provides a complete solution for in-depth, professional gas safety investigations.
- CO probe with Bluetooth (consisting of CO probe head and Bluetooth handle), 4 x AA batteries and calibration protocol (0632 1271)
- CO2 probe with Bluetooth including temperature and humidity sensor (consisting of CO2 probe head and Bluetooth handle); 4 x AA batteries, table stand and calibration protocol (0632 1551)
- tripod with holders
CO probe (digital) with Bluetooth®: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
CO₂ probe (digital) with Bluetooth® including temperature and humidity sensor: for measuring the indoor air quality in offices, production areas or storage facilities – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH
Ambient CO
| Measuring range | 0 to 100 ppm 100.1 to 500 ppm |
|---|---|
| Accuracy | ±10 % of mv (100.1 to 500 ppm) ±5 ppm (30.1 to 100 ppm) ±3 ppm (0 to 30 ppm) |
| Resolution | 0.1 ppm |
General technical data
| Storage temperature | (recommended: -10 to +30 °C) -20 to +50 °C |
|---|---|
| Weight | 160 g |
| Dimensions | 200 x 50 x 40 mm |
| Operating temperature | -5 to +50 °C |
| Length probe shaft | 30 mm |
| Probe head diameter | 30 mm |
| Product colour | black/orange |
| Battery type | 4 x type AA batteries |
| Battery life | 70 h |
| Data transfer | Bluetooth® |
| Radio range | 20 m |
Temperature - NTC
| Measuring range | 0 to +50 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
Humidity - Capacitive
| Measuring range | 5 to 95 %RH |
|---|---|
| Accuracy | Hysteresis: ±1.0 %RH ±0.06 %RH/K (0 to +50 °C) long-term stability: ±1 %RH / year ±3 %RH (10 to 35 %RH) ±3 %RH (65 to 90 %RH) ±5 %RH (Remaining Range) ±2 %RH (35 to 65 %RH) |
| Resolution | 0.1 %RH |
Absolute Pressure
| Measuring range | +700 to +1100 hPa |
|---|---|
| Accuracy | ±3.0 hPa |
| Resolution | 0.1 hPa |
Ambient CO₂
| Measuring range | 0 to 10000 ppm |
|---|---|
| Accuracy | ±(100 ppm + 5 % of mv) (5001 to 10000 ) ±(50 ppm + 3 % of mv) (0 to 5000 ) |
| Resolution | 1 ppm |
General technical data
| Storage temperature | -20 to +60 °C |
|---|---|
| Weight | 195 g |
| Dimensions | 295 x 50 x 40 mm |
| Operating temperature | -5 to +50 °C |
| Length probe shaft | 130 mm |
| Probe head diameter | 30 mm |
| Product colour | black/orange |
| Battery life | 21,5 h |
| Battery type | 4 x type AA batteries |
| Data transfer | Bluetooth® |
| Radio range | 20 m |
Accessories
Accessories
Bluetooth® handle for connecting probe heads: transmits readings conveniently via Bluetooth
:
0554 1111
0554 1111
Accessories
Cable handle for connecting probe heads: transmits readings via cable
:
0554 2222
0554 2222
Accessories
Measuring tripod for IAQ and comfort level measurements, to ensure standard-compliant, secure positioning of measuring instrument and probes including transport bag
:
0554 1591
0554 1591
Sensor heads
Sensor heads
16 mm vane probe head including temperature sensor; for attachment to extendable telescope for air velocity probes with universal handle – measuring range +0.6 to +50 m/s, -10 to +70 °C
:
0635 9570
0635 9570
Sensor heads
High-precision 100 mm vane probe head including temperature sensor: for attachment to extendable telescope for air velocity probes with universal handle or to a universal Bluetooth® or cable handle – measuring range +0.1 to +15 m/s, -20 to +70 °C
:
0635 9370
0635 9370
Sensor heads
100 mm vane probe head: for attachment to extendable telescope for air velocity probes with universal handle or to universal Bluetooth® or cable handle – measuring range +0.3 to +35 m/s, -20 to +70 °C
:
0635 9430
0635 9430
Sensor heads
Hot wire probe head including temperature and humidity sensor: for attachment to extendable telescope for air velocity probes with universal handle – measuring range 0 to +30 m/s, -20 to +70 °C, 5 to 95% RH
:
0635 1570
0635 1570
Sensor heads
Humidity/temperature probe head: for attachment to universal Bluetooth® or cable handle – accuracy ±2% RH / ±0.5 °C, measuring range 0 to 100% RH / -20 to +70 °C
:
0636 9730
0636 9730
Sensor heads
High-precision humidity/temperature probe head: for attachment to a universal Bluetooth® or cable handle – accuracy: ±(0.6% RH + 0.7 % of m.v.) (0 to 90% RH) / ±0.3 °C (+15 to +30 °C)
:
0636 9770
0636 9770
Sensor heads
CO₂ probe head including temperature and humidity sensor: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH
:
0632 1550
0632 1550
Sensor heads
CO probe head: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 500 ppm
:
0632 1270
0632 1270
