All results at a glance thanks to the large graphic display
-
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
-
Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth®
-

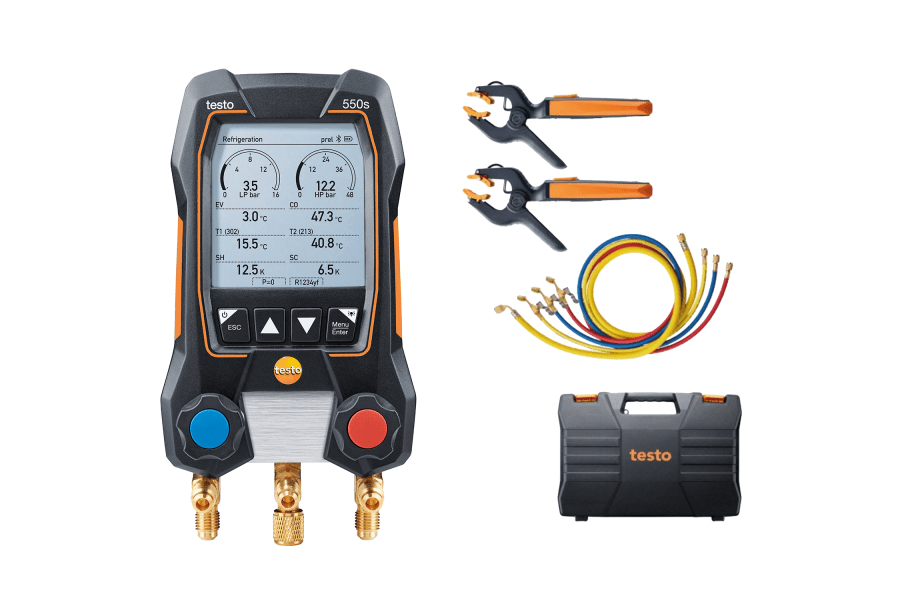

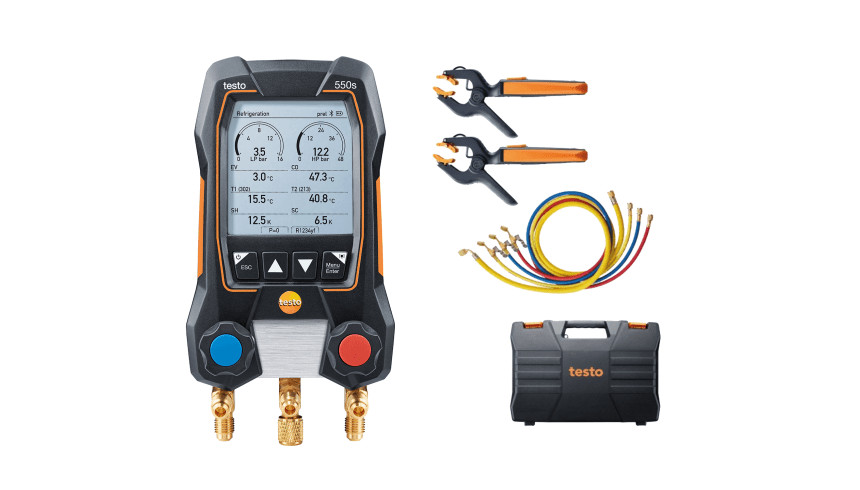

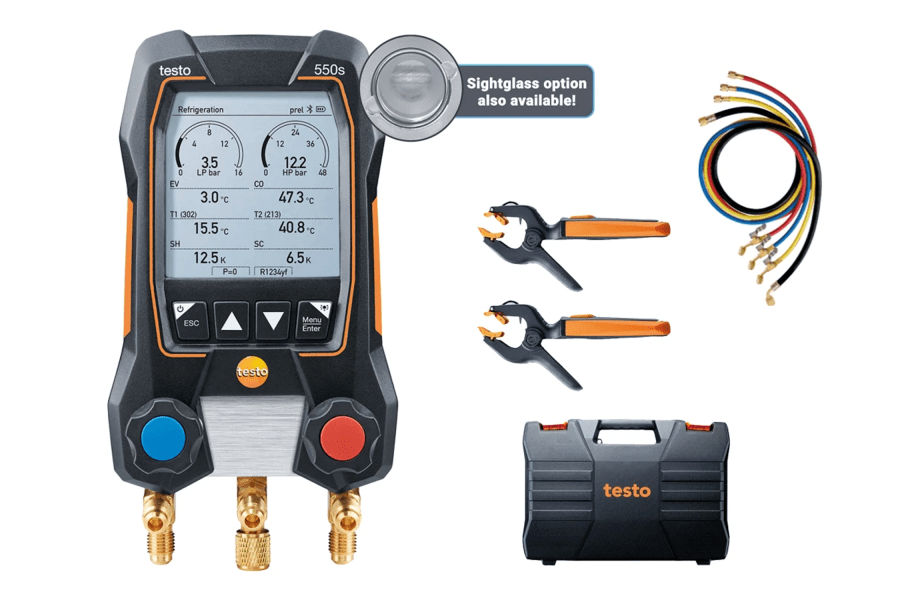

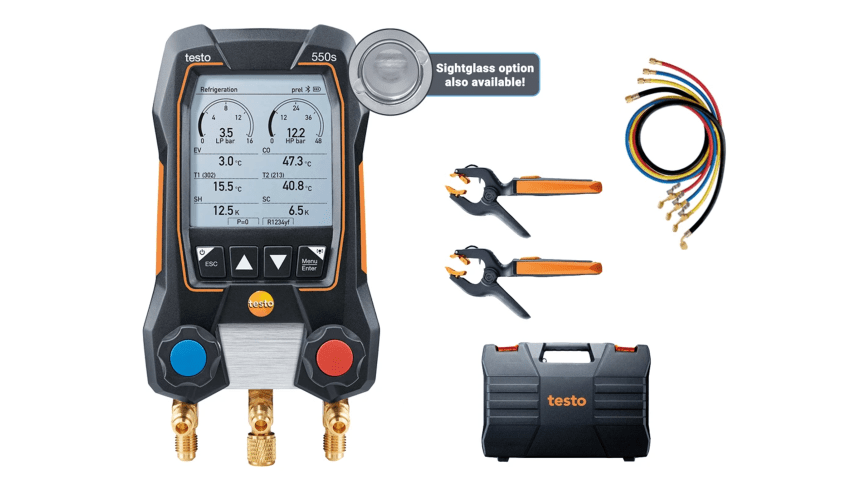

In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), hose filling set with 3 hoses, case
-
General technical data Weight
826 g
Dimensions
210 x 121 x 60 mm (LxWxH)
Operating temperature
-20 to +50 °C
Protection class
IP54
System requirements
requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour
Black
Auto-off
10 min*
Battery type
4 x type AA batteries
Battery life
250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
Data transfer
Bluetooth®
Radio range
150 m
Refrigerants in instrument
R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature
-20 to +60 °C
* when not connected via Bluetooth
Temperature Measuring range
-50 to +150 °C
Accuracy
±0.5 °C
Resolution
0.1 °C
Probe connection
2 x plug-in (NTC)
Pressure measurement Measuring range
-1 to 60 bar
Accuracy
±0.5 % fs
Resolution
0.01 bar
Probe connection
3 x 7/16" – UNF
Overload rel. (high pressure)
65 bar
-
Temperature - NTC Measuring range
-40 to +150 °C
Accuracy
±1.3 °C (-20 to +85 °C)
Resolution
0.1 °C
General technical data Weight
127.4 g
Dimensions
183 x 90 x 30 mm
Operating temperature
-20 to +50 °C
Product-/housing material
Plastic
System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour
black/orange
Battery type
3 AAA micro batteries
Battery life
150 h
Data transfer
Bluetooth®
Radio range
100 m
Storage temperature
-20 to +60 °C
-
General technical data System requirements
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
