testo 560i - Digital refrigerant scale with Bluetooth

Order-Nr. 0564 1560

Wireless measurement of refrigerant weight and operation with Testo manifolds and testo Smart App via Bluetooth
Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with intelligent valve (sold separately)
All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App
Particularly handy thanks to compact housing, low weight, practical carrying handle and a robust shoulder bag

Charge refrigeration systems and heat pumps faster and more precisely with the testo 560i wireless refrigerant scale, a digital manifold from Testo and the testo Smart App. practical kit consisting of refrigerant scale testo 560i and carry bag.

Details

Product Description

Measuring refrigerant weight quickly, precisely and conveniently - that's only possible with the testo 560i digital refrigerant scale.

Operation and display of measured values are completely wireless using a Testo manifold and the testo Smart App. For this purpose, the scale automatically connects via Bluetooth with a manifold and a smartphone or tablet
Versatile in all situations: Bluetooth range of up to 30 m – together with a Testo manifold even up to 150 m
And best of all: with the separately available intelligent valve, you can charge refrigeration systems and heat pumps fully automatically according to target refrigerant weight, superheat or subcooling
Compatible with digital manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/ 549i/605i, testo Smart App for Android and iOS

Advantages of the testo 560i refrigerant scale

High measurement accuracy with resolution 10 g and output in kg
Maximum load of 100 kg for all common refrigerant containers
High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 30 m)
Fully automatic charging according to target value (only together with refrigerant valve sold separately)
Safe handling: 3D corners for accurate positioning of the refrigerant container and textured rubber surface for stable grip
High robustness due to dust and splash water protection (IP44)
Especially handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag
Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-off function
High flexibility in outdoor use at temperatures from -10 to 50° C

Delivery Scope

testo 560i scale, shoulder bag, manual, 1x carton Box Packaging

Related products

testo 300 - Flue Gas Analyser 'Smart' kit

Order-Nr. 300564 3002 01
- Large 5” HD display with smart touch operation
- Connect up to 4 smart probes via USB Dongle
Details
testo 300 - Flue Gas Analyser 'Ultra-Smart' kit

Order-Nr. 300564 3002 02
- Large 5” HD display with smart touch operation
- Connect up to 4 smart probes via USB Dongle
Details
testo 300 - Flue Gas Analyser 'Smart' upgrade set

Order-Nr. 300564 3002 03
- Large 5” HD display with smart touch operation
- Connect up to 4 smart probes via USB Dongle
Details
testo 915i temperature kit - Thermometer with temperature probes and smartphone operation

Order-Nr. 0563 5915
- Smart Probe for wireless temperature measurement in a wide range of applications, thanks to a large selection of probes and compatibility with standard type K thermocouple probes
- In the kit: testo 915 Smart Probe with secure locking mechanism for attaching probes, air probe, immersion/penetration probe and surface probe, (all TC Type K, Class 1), testo Smart Case
Details
testo Smart Probes Differential Temperature/Pressure - testo Smart Probes Differential Temperature/Pressure Kit

Order-Nr. 300563 0015
- Measurement data analysed and sent via testo Smart Probes App
- Gas flow and static pressure as well as pressure drop test including alarm function
Details
testo 115i - Clamp thermometer operated via smartphone

Order-Nr. 0560 2115 02
- Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
- Fast identification of temperature changes by graphic progression display
Details
testo 549i - High-pressure gauge operated via smartphone

Order-Nr. 0560 2549 02
- Measurement of high and low pressure
- Low refrigerant loss – since no hoses are required for measurements
Details

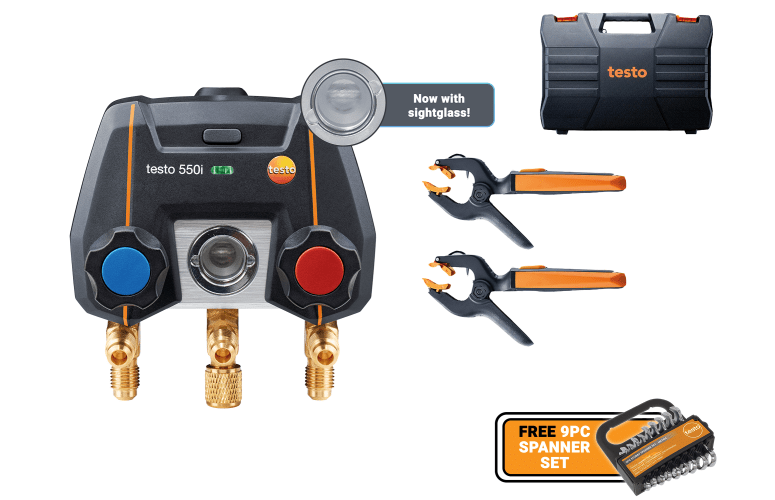

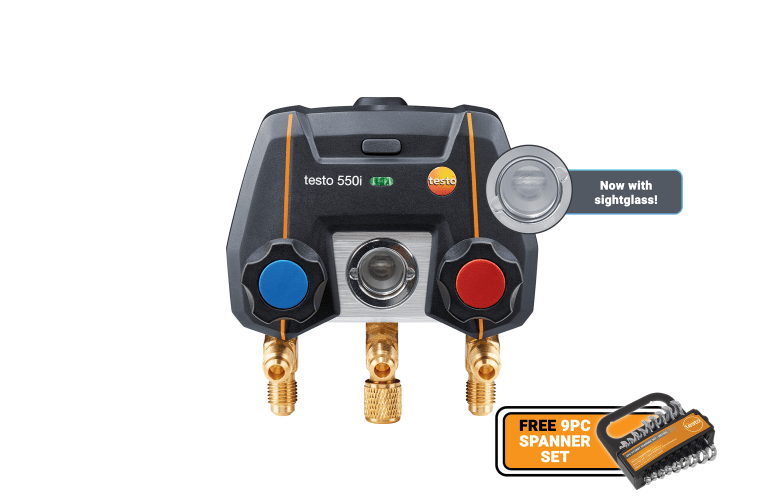

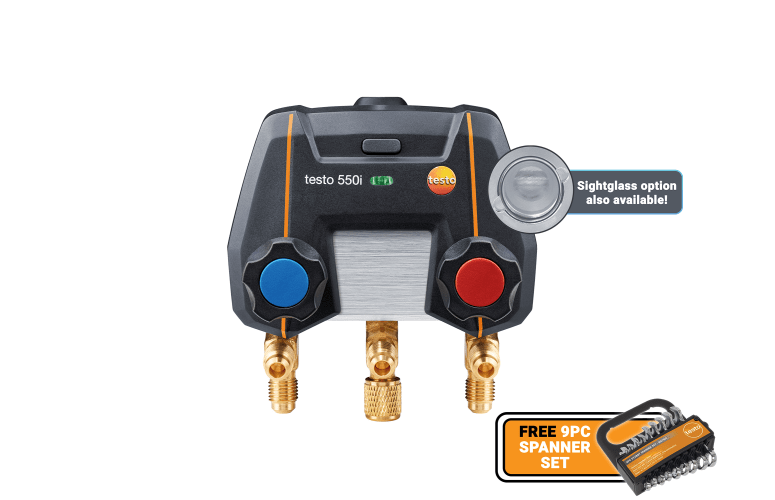

testo 550i - App-controlled digital manifold with Bluetooth and 2-way valve block

Order-Nr. 0564 2550 02
- All activities, from measurement through to documentation, using the testo Smart App on your Smartphone
- The smallest digital manifold on the market
Details

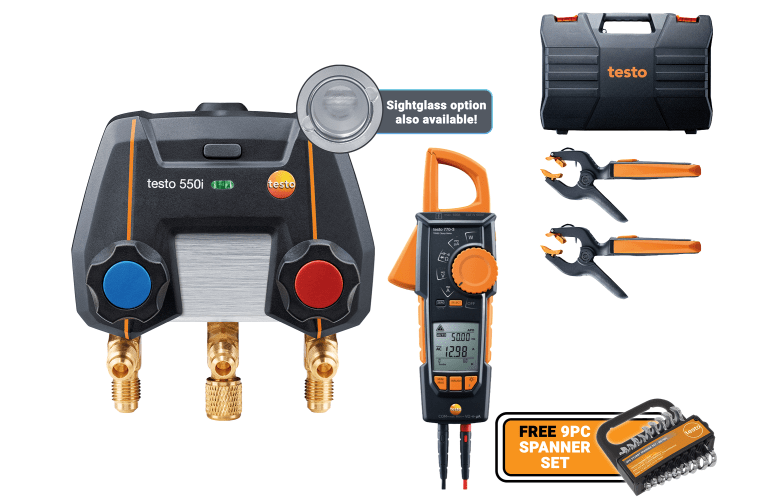

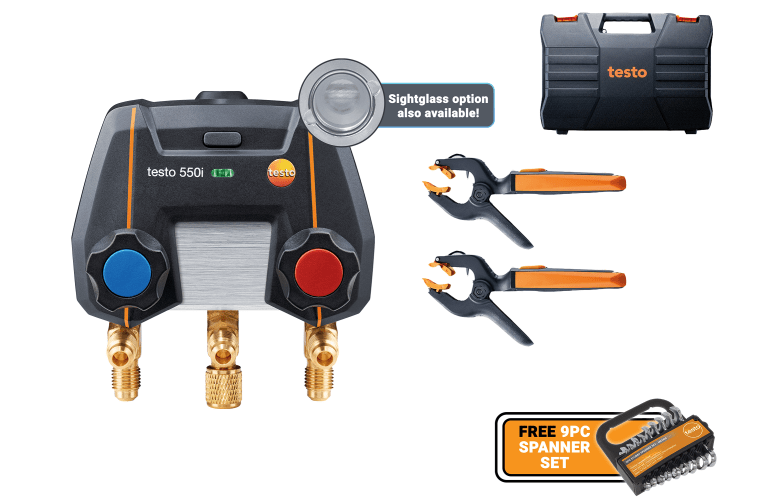

testo 550i Smart Kit - App-controlled digital manifold with wireless clamp temperature probes (NTC)

Order-Nr. 0564 3550 02
- All activities, from measurement through to documentation, using the App on your Smartphone
- The smallest digital manifold on the market
Details

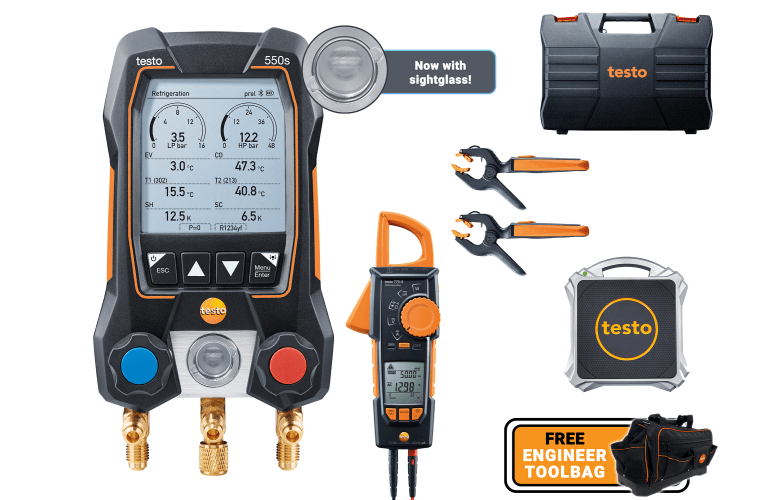

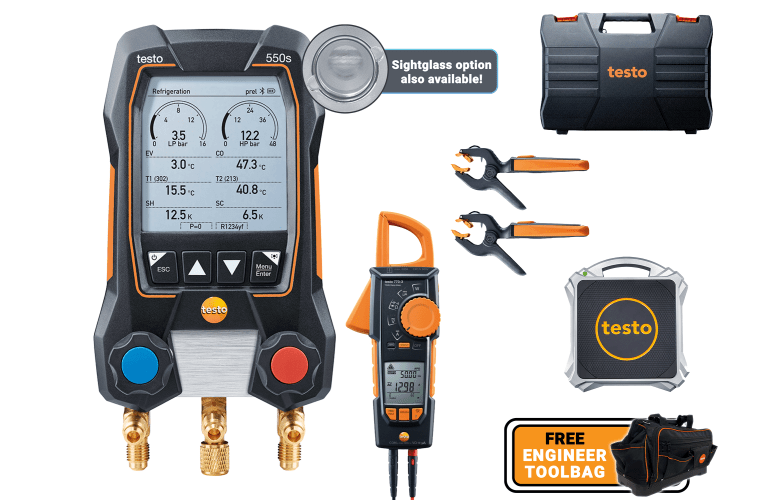

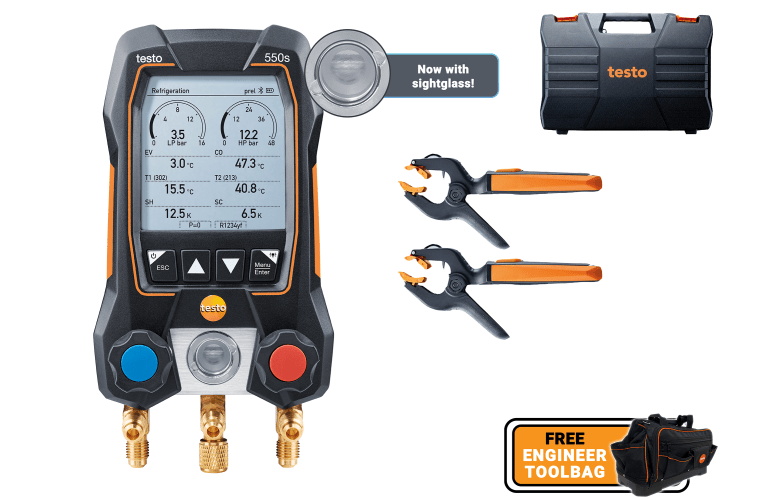

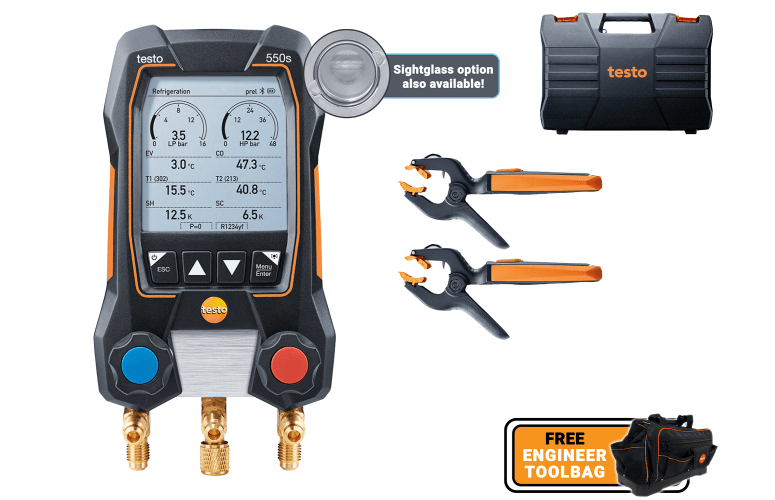

testo 550s Smart Kit - Smart digital manifold with wireless clamp temperature probes

Order-Nr. 0564 5502 02
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details

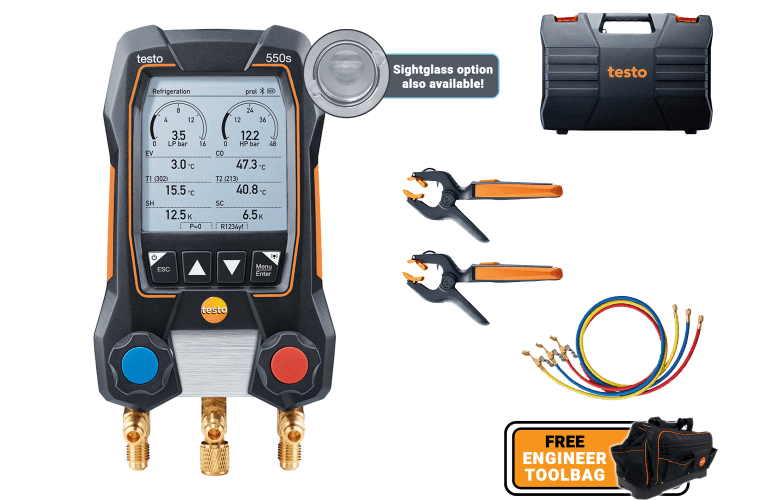

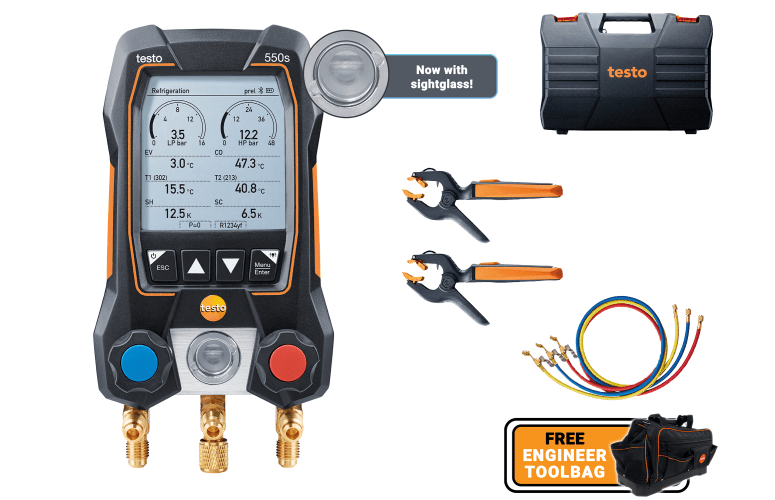

testo 550s Smart Kit with filling hoses - Smart digital manifold with wireless clamp temperature probes and hose filling set with 3 hoses

Order-Nr. 0564 5503 02
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details
testo 552i - App-controlled wireless vacuum probe

Order-Nr. 0564 2552
- Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen
- Connects automatically via Bluetooth^® to the testo Smart App and digital manifolds
Details
testo 557s - Smart digital manifold with Bluetooth and 4-way valve block

Order-Nr. 0564 5570 02
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details
testo 557s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes

Order-Nr. 0564 5571 02
- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details
testo 557s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and hose filling set with 4 hoses

Order-Nr. 0564 5572 02
- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Details
testo 605i - Thermohygrometer operated via smartphone

Order-Nr. 0560 2605 02
- Measurement of air humidity and temperature in rooms and ducts
- Automatic calculation of the dew point and wet bulb temperature via testo Smart App
Details
testo 915i - Thermometer with air probe and smartphone operation

Order-Nr. 0563 3915
- Smart Probe for wireless temperature measurement in a wide range of applications, thanks to a large selection of probes and compatibility with standard type K thermocouple probes
- Robust, fast-response air temperature probe (TC type K, class 1) with secure attachment via innovative locking mechanism in the handle, ideal for measuring ambient temperature as well as temperatures in ducts and at air outlets, measuring range -50 to +400 °C
Details
testo Smart Probes AC & refrigeration test kit

Order-Nr. 0563 0002 10
- High-precision measurement technology with convenient smartphone operation
- In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, testo Smart Case
Details
testo Smart Probes AC & refrigeration test kit plus

Order-Nr. 0563 0002 41
- High-precision measurement technology with convenient smartphone operation
- In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, 2 x testo 605i thermohygrometers, testo Softcase
Details
testo Smart Probes HVAC/R Ultimate kit

Order-Nr. 0563 0002 32
- For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
- All Smart Probes for temperature, pressure, humidity and flow in one kit
Details
testo Smart Probes VAC kit

Order-Nr. 0563 0003 10
- Measurement of air and surface temperature, humidity, air velocity and volume flow
- Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
Details
testo Smart Probes heating kit

Order-Nr. 0563 0004 10
- Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure
- Measurement menu for pressure-drop test including alarm function
Details

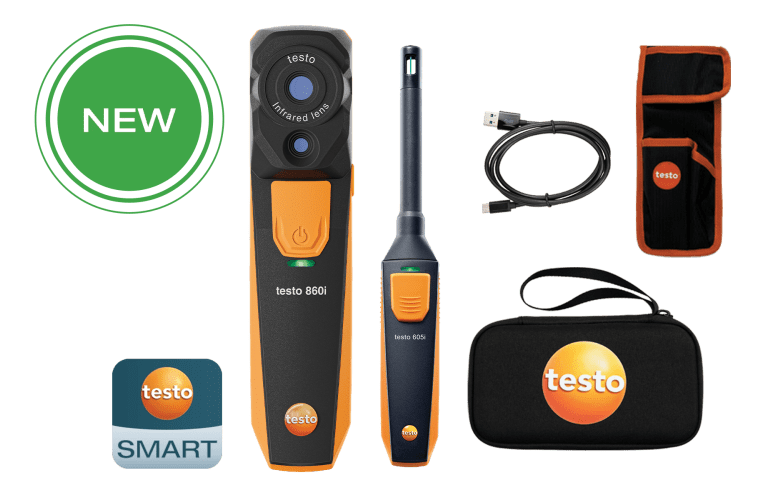

testo Smart Probes mould kit

Order-Nr. 0563 0005 10
- Identify mould risk at an early stage using the testo Smart App
- Measuring point marking with laser function
Details

Technical Data

General technical data
Operating humidity	0 to 80 %RH
Weight	4.36 kg (incl. batteries and bag)
Measuring range	0 to 100 kg
Accuracy	Operating temperature +22 °C: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg) ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)
Resolution	0.01 kg
Dimensions	310 x 287 x 58 mm (LxWxH)
Operating temperature	-10 to +50 °C
Protection class	IP44
Battery type	4 x type AA batteries
Battery life	> 70 h at +25 °C
Interface	Bluetooth® 4.2
Radio range	30 m
Storage temperature	-10 to +50 °C
