testo 300 - Flue Gas Analyser 'Smart' kit

300564 3002 01

£ 1,049.00 £ 1,258.80

testo 300 - Flue Gas Analyser 'Smart' kit

300564 3002 01

Large 5” HD display with smart touch operation

Connect up to 4 smart probes via USB Dongle

Email/Bluetooth customer reports

Optional Printer and NO sensor

Domestic & commercial kits available

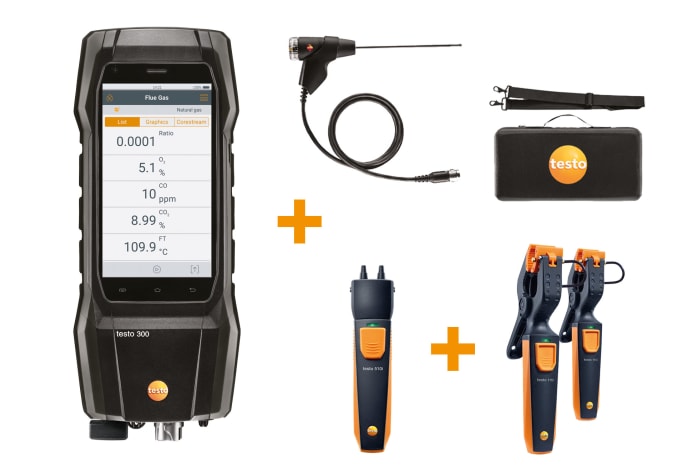

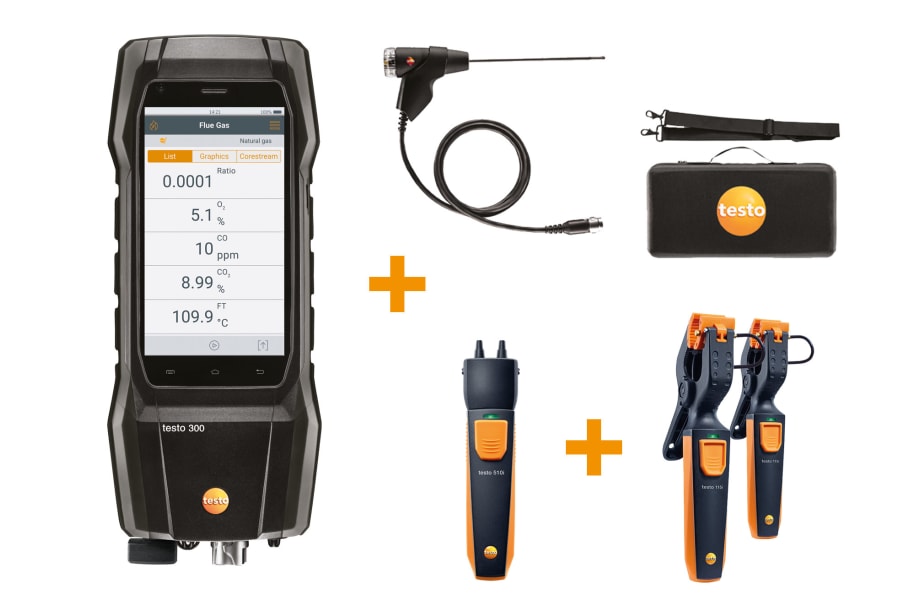

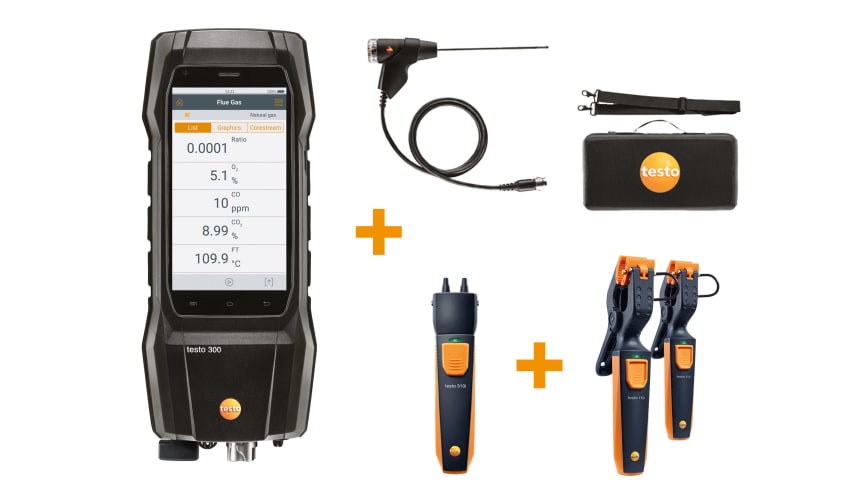

With this kit, you will be equipped for the most important measurements involving domestic heating systems: the testo 300 flue gas analyzer is supplied with O₂ and CO sensor up to 4,000 ppm, basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, instrument carry case, AC USB power supply.

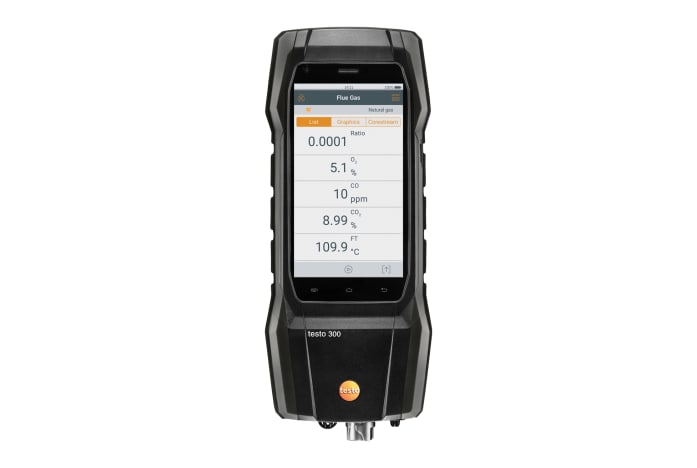

testo 300 flue gas analyzer with O₂and CO sensor up to 4,000 ppm (0633 3002 78)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
1 x testo 510i Smart probe manometer (0560 1510)
2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
testo Bluetooth® connector (0554 3004)
soft-case style Instrument bag (0516 3001)

Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter

: 0600 9740

Free download: testo EasyHeat PC software

: 0554 3332

Instrument bag with carrying strap

: 0516 3001

USB mains unit, including cable

: 0554 1106

testo Bluetooth Connector

: 0554 3004

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

testo 510i – differential pressure measuring instrument with smartphone operation

: 0560 1510

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

: 0554 1203

Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter

0600 9740

General technical data

Diameter probe shaft	6 mm
Cable length	1.5 m
Length probe shaft	180 mm
Product colour	Black
Temperature maximum	500 °C
Diameter	6 mm
Weight	346 g

Free download: testo EasyHeat PC software

0554 3332

General technical data

System requirements	Windows® 7; Windows® 8; Windows® 10

Instrument bag with carrying strap

0516 3001

General technical data

Weight	1400 g
Dimensions	256 x 516 x 135 mm ((LxWxH))
Product colour	Black

USB mains unit, including cable

0554 1106

General technical data

Weight	144 g
Dimensions	85 x 55 x 90 mm LxWxH
Product colour	Black
Cable length	2 m
Power supply	230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo Bluetooth Connector

0554 3004

General technical data

Battery life	None, operated via testo 300
Connection	TUC 1 or TUC 2
Radio range	100 m
compatible with	testo 510i, testo 115i, testo 915i

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Data transfer	Bluetooth®
Radio range	100 m
Storage temperature	-20 to +60 °C

testo 510i – differential pressure measuring instrument with smartphone operation

0560 1510

Differential pressure (internal sensor) - Piezoresistive

Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

General technical data

Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C

CO probes

CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm

:
0632 1272

£ 329.00 £ 394.80

Flue gas probes

TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

:
0600 9760

£ 236.00 £ 283.20

Flue gas probes

TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

:
0600 9761

£ 247.00 £ 296.40

Flue gas probes

Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9762

£ 236.00 £ 283.20

Flue gas probes

Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9763

£ 247.00 £ 296.40

Flue gas probes

Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter

:
0600 9740

£ 163.00 £ 195.60

Flue gas probes

Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C

:
0600 9741

£ 172.00 £ 206.40

Further probes

Dual wall clearance probe for O2 supply air measurement

:
0632 1260

£ 138.00 £ 165.60

Further probes

Solid fuel kit - including probe shaft and adapter

:
0600 9765

£ 383.00 £ 459.60

Temperature probes

Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)

Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C

:
0615 5505

£ 54.00 £ 64.80

Temperature probes

Pipe wrap probe with NTC temperature sensor for measurements on pipes (Ø 5-65 mm)

Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C

:
0615 5605

£ 174.00 £ 208.80

Temperature probes

Waterproof immersion/penetration probe with NTC temperature sensor

Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)

:
0615 1212

£ 66.00 £ 79.20

Temperature probes

Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C

:
0600 9799

£ 87.00 £ 104.40

Sets

testo Smart Probes heating kit operated via smartphone

:
0563 0004 10

£ 255.00 £ 306.00

Sets

testo Smart Probes AC & Refrigeration Test Kit delivery

testo Smart Probes AC and refrigeration test kit operated via smartphone

:
0563 0002 10

£ 295.00 £ 354.00

Sets

testo Smart Probes AC & Refrigeration Test & Load Kit Plus delivery

testo Smart Probes AC and refrigeration test kit plus, operated via smartphone

:
0563 0002 41

£ 495.00 £ 594.00

Sets

testo Smart Probes HVAC/R Ultimate kit operated via smartphone

:
0563 0002 32

£ 849.00 £ 1,018.80

Sets

testo Smart Probes HVAC kit

:
0563 0010

Accessories

BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps

:
0554 0621

£ 203.00 £ 243.60

Accessories

Smoke tester with oil, soot sheet, for measuring soot in flu...

Smoke tester with oil and soot sheet, for measuring soot in flue gas

:
0554 0307

£ 112.00 £ 134.40

Accessories

Free download: testo EasyHeat PC software

:
0554 3332

Accessories

Instrument case (height: 130 mm) - for instrument, probes and accessories

:
0516 3300

£ 92.00 £ 110.40

Accessories

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

:
0554 1203

£ 28.00 £ 33.60

Accessories

Instrument bag with carrying strap

:
0516 3001

£ 66.00 £ 79.20

Accessories

USB mains unit, including cable

:
0554 1106

£ 39.00 £ 46.80

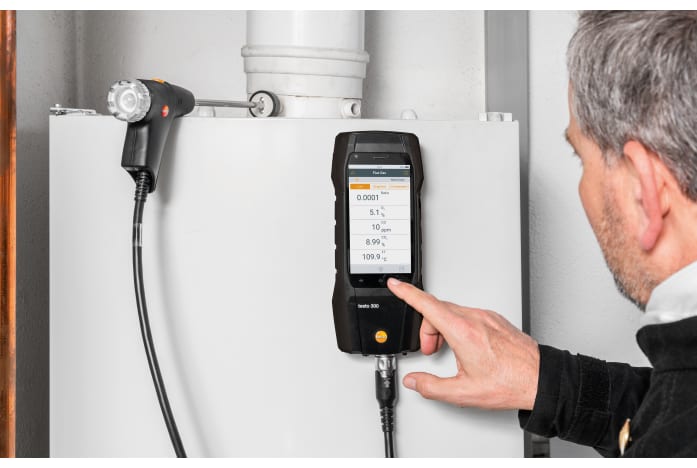

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.
