testo 300+ Flue Gas Analyser Heat pump kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 04
testo 300+ Flue Gas Analyser Heat pump kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 04Bluetooth clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature
Kit provides test equipment for boiler combustion testing as well as testing of monobloc or split system heat pumps
Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor fitted with 5 year lifespan

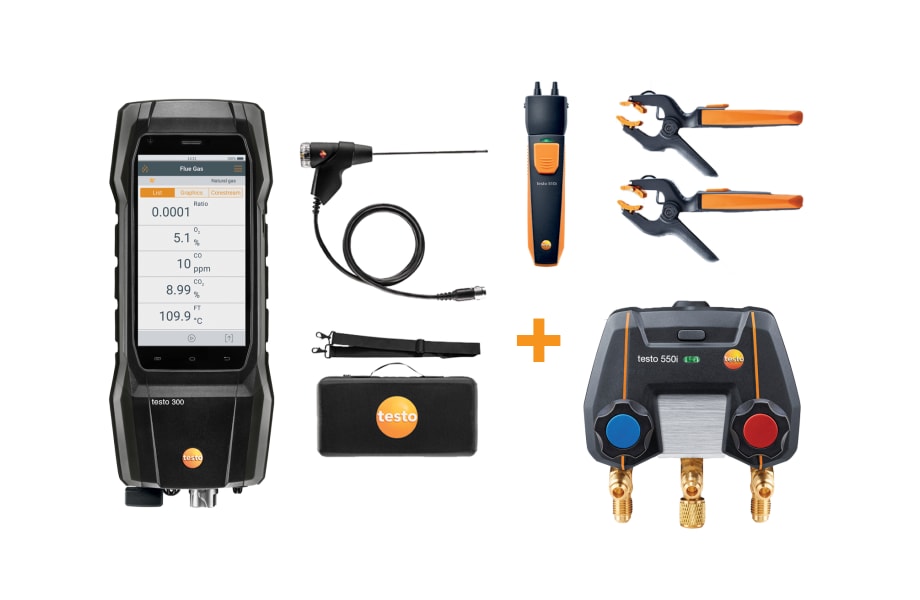

With this kit, you will be equipped to carry out smart measurements involving domestic boilers and monobloc or split heat pumps, thanks to the testo 550i smart digital manifold, bluetooth clamp probes and manometer included : the testo 300+ flue gas analyser is supplied with 5-year lifespan O2 and CO sensors (8,000 ppm H2 compensated), basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, 1 x testo 550i smart digital manifold, instrument carry case, AC USB power supply.
• Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
• 5 year sensors for reduced service costs
• 8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
• EN50379-1/3 and BS7967 compliant
• 20% H2 ready
• Bluetooth USB dapter supplied for connectivity to testo Smart Probes
• Kit includes 1 x testo 550i smart digital manifoldfor use on monobloc or split heat pumps
• Kit includes 2 x testo 115i bluetooth pipe clamp probes for flow & return temperature measurement
• Kit includes 1 x testo 510i bluetooth manometer for measurent of gas pressure and differential temperature
testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
1 x testo 510i Smart probe manometer (0560 1510)
2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
1 x testo 550i smart digital manifold (0564 2550 02)
testo Bluetooth connector (0554 3004)
soft-case style Instrument bag (0516 3001)
Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor
All activities, from measurement through to documentation, using the testo Smart App on your Smartphone
All in one: One app for all Bluetooth®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
Pressure measurement
| Measuring range | -1 to 60 bar |
|---|---|
| Accuracy | ±0.5 % fs |
| Resolution | 0.01 bar |
| Probe connection | 3 x 7/16" – UNF |
| Overload rel. (high pressure) | 65 bar |
General technical data
| Weight | 595 g |
|---|---|
| Dimensions | 77 x 109 x 63 mm |
| Operating temperature | -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | Black |
| Auto-off | 10 |
| Battery life | 130 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 150 m |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂) |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
| * when not connected via Bluetooth | |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
CO probes
CO probes
Intuitive – Clear, easy-to-use measurement menu for long-term monitoring of CO concentrations in indoor areas, such as boiler rooms.
:
0632 1272
0632 1272
Flue gas probes
Flue gas probes
Easy probe shaft replacement via quick-change click system
:
0600 9760
0600 9760
Flue gas probes
Easy probe shaft replacement via quick-change click system
:
0600 9761
0600 9761
Flue gas probes
Easy probe shaft change via quick-change click system
:
0600 9762
0600 9762
Flue gas probes
Easy probe shaft change via quick-change click system
:
0600 9763
0600 9763
Flue gas probes
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
:
0600 9740
0600 9740
Flue gas probes
Flue gas path, draught path and temperature probe can be connected via a single probe coupling
:
0600 9741
0600 9741
Further probes
Further probes
Detection of leaks and blockages in the dual wall clearance
:
0632 1260
0632 1260
Further probes
Ideal for precise solid fuel measurements
:
0600 9765
0600 9765
Humidity probes
Humidity probes
Measurement of air humidity and temperature in rooms and ducts
:
0560 2605 02
0560 2605 02
Pressure probes
Pressure probes
Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen
:
0564 2552
0564 2552
Temperature probes
Temperature probes
Quick attachment – Collet design ensures fast and secure attachment to pipes with diameters between 6 and 35 mm.
:
0615 5505
0615 5505
Temperature probes
Fast attachment – Quick-release connector allows for rapid and easy attachment to pipes.
:
0615 5605
0615 5605
Temperature probes
High measurement accuracy – Delivers precision readings with up to ±0.2 °C accuracy across a wide temperature range.
:
0615 1212
0615 1212
Temperature probes
Flexible positioning (immersion depth 190 mm, cable length 2.2 m)
:
0600 9799
0600 9799
Temperature probes
Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
:
0560 2115 02
0560 2115 02
Temperature probes
Smart Probe for wireless temperature measurement in a wide range of applications, thanks to a large selection of probes and compatibility with standard type K thermocouple probes
:
0563 4915
0563 4915
Temperature probes
With Velcro: makes it easy to attach the surface probe to pipes with a pipe diameter of up to 75 mm
:
0613 4611
0613 4611
Accessories
Accessories
Accurate Smoke Measurement – precisely measures smoke content in oil burner flue gases for optimal burner performance.
:
0554 0307
0554 0307
Accessories
PC software for reading out the data from corresponding Testo measuring instruments
:
0554 3332
0554 3332
Accessories
Secure Storage - designed to hold testo 300+ flue gas analysers, probes, and accessories securely.
:
0516 3300
0516 3300
Accessories
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
:
0554 1203
0554 1203
Accessories
Secure Storage - Designed to safely hold your flue gas analyser, probe, and accessories.
:
0516 3001
0516 3001
Accessories
External Power Supply – Provides continuous power to your measuring instruments.
:
0554 1106
0554 1106
Accessories
Automatic and precise refrigerant charging according to target superheat, subcooling and weight thanks to intelligent valve
:
0564 2560
0564 2560
Accessories
Wireless measurement of refrigerant weight and operation with Testo manifolds and testo Smart App via Bluetooth
:
0564 1560
0564 1560
Accessories
All in one: One app for all Bluetooth®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
:
0501 5001
0501 5001
Accessories
PC software for the readout, analysis and archiving of customer and measurement data
:
0501 4000
0501 4000
Accessories
Strong magnet and sturdy strap
:
0564 1001
0564 1001
Accessories
Robust design for daily use
:
0516 2012
0516 2012
Accessories
Suitable for all Testo Digital Manifold
:
0173 0180
0173 0180
Accessories
Connect to service port to adjust system pressure
:
0192 1304
0192 1304
Accessories
Conects to main knob of digital manifold and act as a protective cover
:
0192 1306
0192 1306
Accessories
Conects to main knob of digital manifold and act as a protective cover
:
0192 1305
0192 1305
Accessories
Compatible with all Testo manifolds
:
0192 1382
0192 1382
Accessories
Compatible with all common refrigerants
:
0554 3111
0554 3111
Accessories
Compatible with all common refrigerants
:
0554 3112
0554 3112
Accessories
Compatible with all common refrigerants
:
0554 3113
0554 3113
Accessories
Compatible with all common refrigerants
:
0554 3114
0554 3114
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
- Data sheet testo 550i(pdf, 575.02 kB)
- Declaration of Conformity testo 550i(pdf, 34.21 kB)
- Instruction manual testo 550i(pdf, 1.6 MB)
- Quickstart Guide testo 550i(pdf, 1.2 MB)
- Technical Documentation A2L/A2/A3 refrigerant testo 550i(pdf, 40.5 kB)
