testo 300+ Flue Gas Analyser smart kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 01
testo 300+ Flue Gas Analyser smart kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 01Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor fitted with 5 year lifespan
Bluetooth clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature.
Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously

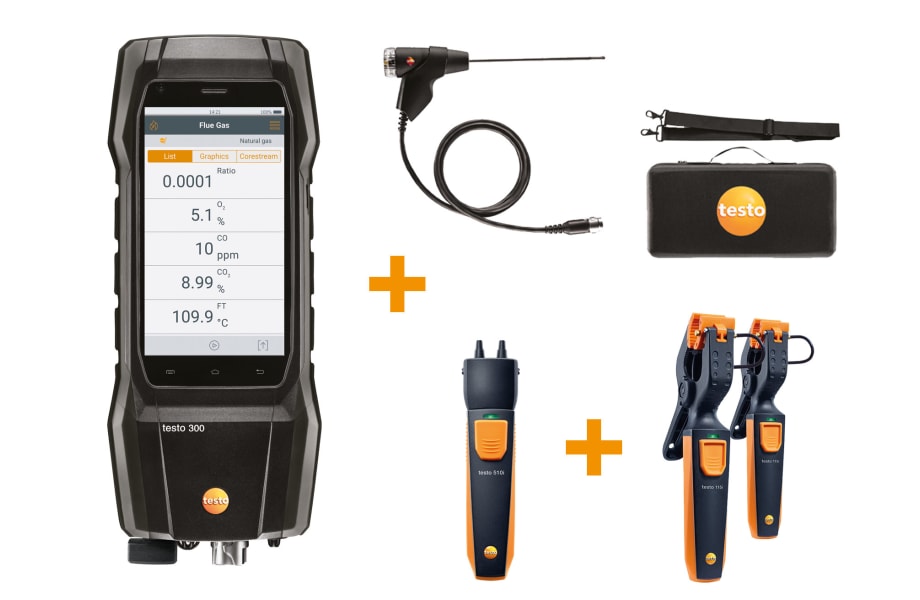

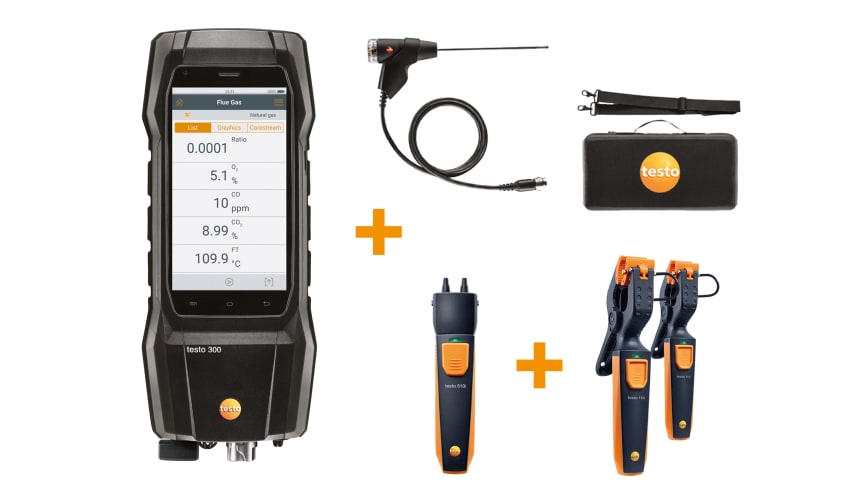

With this kit, you will be equipped to carry out smart measurements involving domestic heating systems, thanks to the bluetooth clamp probes and manometer included: the testo 300+ flue gas analyser is supplied with 5 year lifespan O2 and CO sensor (8,000 ppm H2 compensated), basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, instrument carry case, AC USB power supply.
• Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
• 5 year sensors for reduced service costs
• 8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
• EN50379-1/3 and BS7967 compliant
• 20% H2 ready
• Bluetooth USB dapter supplied for connectivity to testo Smart Probes
• Kit includes 2 x testo 115i bluetooth pipe clamp probes for flow & return temperature measurement
• Kit includes 1 x testo 510i bluetooth manometer for measurent of gas pressure and differential temperature

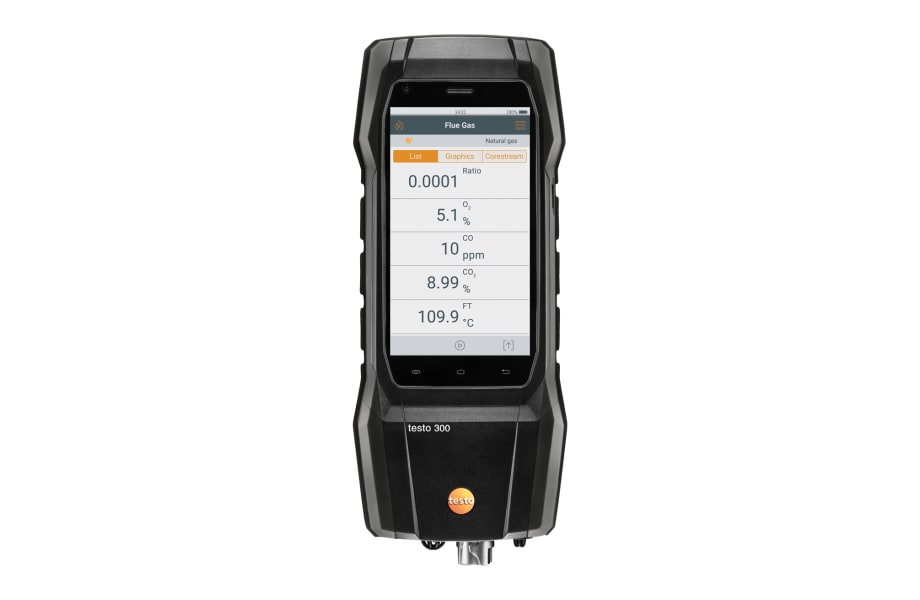

- testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
- USB mains unit, including cable (0554 1105)
- Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
- 1 x testo 510i Smart probe manometer (0560 1510)
- 2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
- testo Bluetooth connector (0554 3004)
- soft-case style Instrument bag (0516 3001)
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
Free download: testo EasyHeat PC software
Instrument bag with carrying strap
USB mains unit, including cable
testo Bluetooth Connector
testo 115i - Clamp thermometer operated via smartphone
Measurement of gas flow and static pressure
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1.5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 1400 g |
|---|---|
| Dimensions | 256 x 516 x 135 mm ((LxWxH)) |
| Product colour | Black |
General technical data
| Weight | 144 g |
|---|---|
| Dimensions | 85 x 55 x 90 mm LxWxH |
| Product colour | Black |
| Cable length | 2 m |
| Power supply | 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
Differential pressure (internal sensor) - Piezoresistive
| Measuring range | -150 to +150 hPa |
|---|---|
| Accuracy | ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
| Resolution | 0.01 hPa |
General technical data
| Weight | 92 g |
|---|---|
| Dimensions | 148 x 36 x 23 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -20 to +60 °C |
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
:
0632 1272
0632 1272
Flue gas probes
Flue gas probes
Easy probe shaft replacement via quick-change click system
:
0600 9760
0600 9760
Flue gas probes
Easy probe shaft replacement via quick-change click system
:
0600 9761
0600 9761
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9762
0600 9762
Flue gas probes
Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9763
0600 9763
Flue gas probes
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
:
0600 9740
0600 9740
Flue gas probes
Flue gas path, draught path and temperature probe can be connected via a single probe coupling
:
0600 9741
0600 9741
Further probes
Further probes
Detection of leaks and blockages in the dual wall clearance
:
0632 1260
0632 1260
Further probes
Solid fuel kit - including probe shaft and adapter
:
0600 9765
0600 9765
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
:
0615 5505
0615 5505
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
:
0615 5605
0615 5605
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
:
0615 1212
0615 1212
Temperature probes
Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
:
0600 9799
0600 9799
Sets
Sets
testo Smart Probes heating kit operated via smartphone
:
0563 0004 10
0563 0004 10
Sets
testo Smart Probes AC and refrigeration test kit operated via smartphone
:
0563 0002 10
0563 0002 10
Sets
testo Smart Probes AC and refrigeration test kit plus, operated via smartphone
:
0563 0002 41
0563 0002 41
Sets
testo Smart Probes HVAC/R Ultimate kit operated via smartphone
:
0563 0002 32
0563 0002 32
Sets
testo Smart Probes HVAC kit
:
0563 0010
0563 0010
Accessories
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
:
0554 0307
0554 0307
Accessories
Free download: testo EasyHeat PC software
:
0554 3332
0554 3332
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
:
0516 3300
0516 3300
Accessories
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
:
0554 1203
0554 1203
Accessories
Instrument bag with carrying strap
:
0516 3001
0516 3001
Accessories
USB mains unit, including cable
:
0554 1106
0554 1106

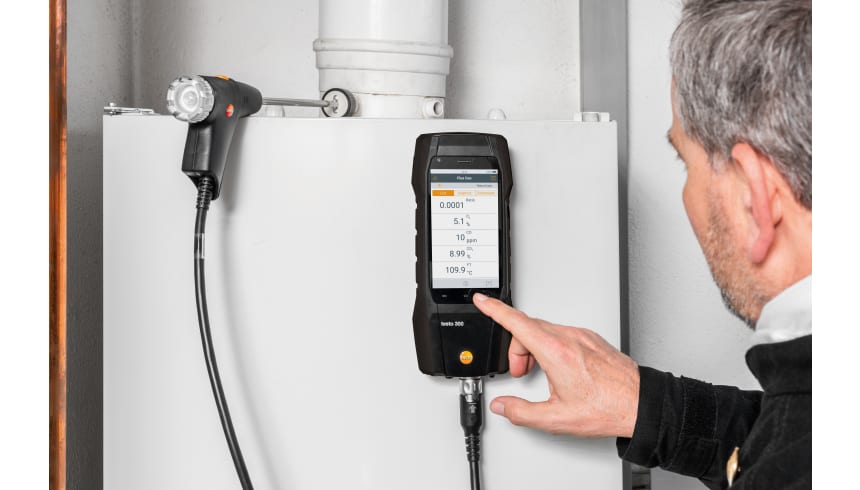

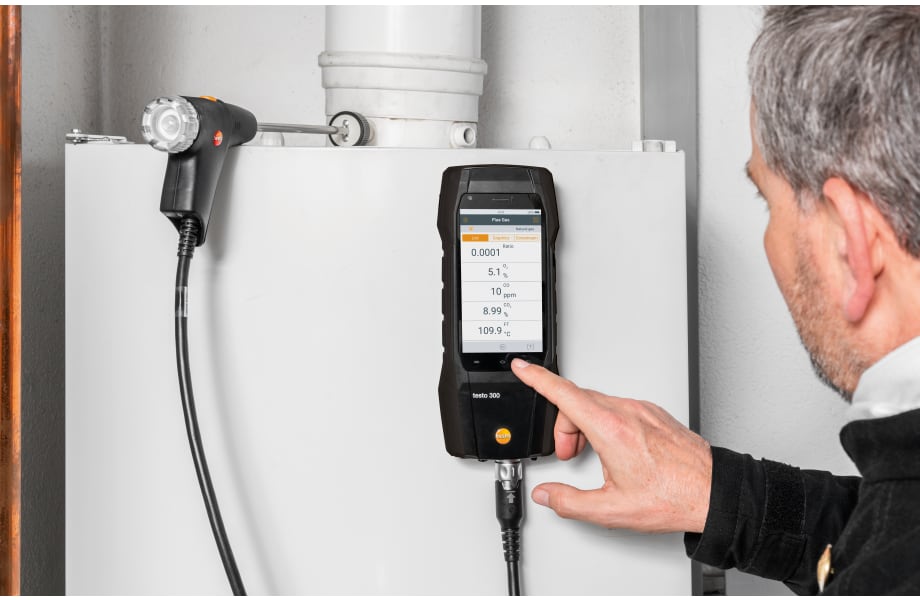

Flue gas measurement on heating systems
Ideal for measurements involving heating systems:
- high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
- gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*
