testo 300 - Flue Gas Analyser 'Ultra-Smart' kit

300564 3002 02

testo 300 - Flue Gas Analyser 'Ultra-Smart' kit

300564 3002 02

Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor

Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously

Practical second screen function and easy data integration into user-specific software via QR code output

CO sensor and O2 sensor fitted with 5 year lifespan

Wired clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature

Easy detection of leaks with the testo combustible gas leak detector.

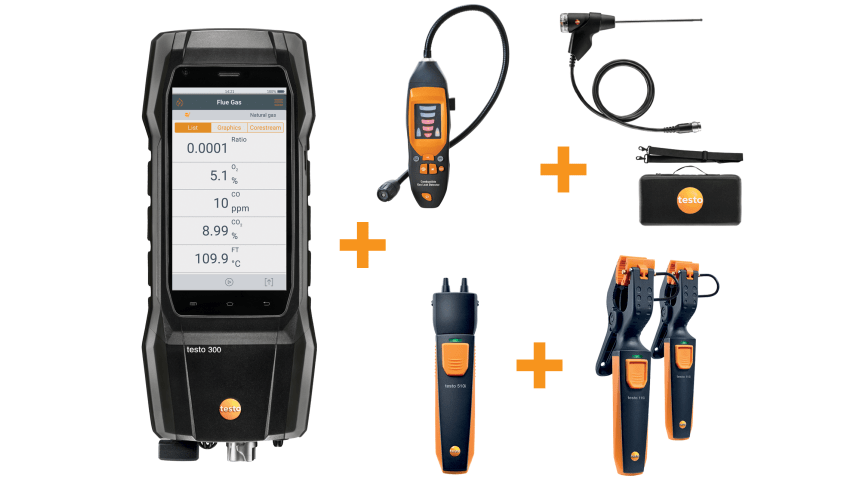

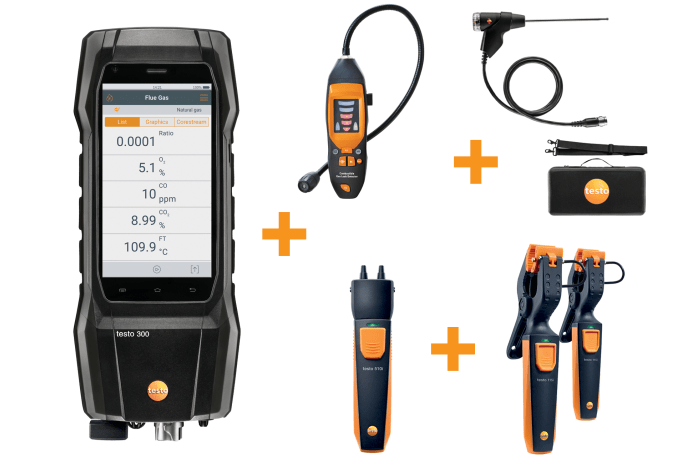

With this kit, you will be equipped for the most important measurements involving domestic heating systems: the testo 300 flue gas analyzer is supplied with O₂ and CO sensor up to 4,000 ppm, basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, 1 x testo gas leak detector, instrument carry case, AC USB power supply.

testo 300 flue gas analyzer with O₂ and CO sensor up to 4,000 ppm (0633 3002 78)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
1 x testo 510i Smart probe manometer (0560 1510)
2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
1 x testo gas leak dectector
testo Bluetooth® connector (0554 3004)
soft-case style Instrument bag (0516 3001)

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

: 0600 9740

Free download: testo EasyHeat PC software

: 0554 3332

Instrument bag with carrying strap

: 0516 3001

USB mains unit, including cable

: 0554 1106

testo Bluetooth Connector

: 0554 3004

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

Measurement of gas flow and static pressure

: 0560 1510

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

: 0554 1203

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

0600 9740

General technical data

Diameter probe shaft	6 mm
Cable length	1.5 m
Length probe shaft	180 mm
Product colour	Black
Temperature maximum	500 °C
Diameter	6 mm
Weight	346 g

Free download: testo EasyHeat PC software

0554 3332

General technical data

System requirements	Windows® 7; Windows® 8; Windows® 10

Instrument bag with carrying strap

0516 3001

General technical data

Weight	1400 g
Dimensions	256 x 516 x 135 mm ((LxWxH))
Product colour	Black

USB mains unit, including cable

0554 1106

General technical data

Weight	144 g
Dimensions	85 x 55 x 90 mm LxWxH
Product colour	Black
Cable length	2 m
Power supply	230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo Bluetooth Connector

0554 3004

General technical data

Battery life	None, operated via testo 300
Connection	TUC 1 or TUC 2
Radio range	100 m
compatible with	testo 510i, testo 115i, testo 915i

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

Measurement of gas flow and static pressure

0560 1510

Differential pressure (internal sensor) - Piezoresistive

Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

General technical data

Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Storage temperature	-20 to +60 °C

CO probes

CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm

:
0632 1272

Flue gas probes

Easy probe shaft replacement via quick-change click system

:
0600 9760

Flue gas probes

Easy probe shaft replacement via quick-change click system

:
0600 9761

Flue gas probes

Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9762

Flue gas probes

Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9763

Flue gas probes

Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

:
0600 9740

Flue gas probes

Flue gas path, draught path and temperature probe can be connected via a single probe coupling

:
0600 9741

Further probes

clearance-probe-for-O2-supply-air-measurement

Detection of leaks and blockages in the dual wall clearance

:
0632 1260

Further probes

Solid fuel kit - including probe shaft and adapter

:
0600 9765

Temperature probes

Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)

Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C

:
0615 5505

Temperature probes

Pipe wrap probe with NTC temperature sensor for measurements on pipes (Ø 5-65 mm)

Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C

:
0615 5605

Temperature probes

Waterproof immersion/penetration probe with NTC temperature sensor

Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)

:
0615 1212

Temperature probes

Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C

:
0600 9799

Sets

testo Smart Probes heating kit operated via smartphone

:
0563 0004 10

Sets

testo Smart Probes AC & Refrigeration Test Kit delivery

testo Smart Probes AC and refrigeration test kit operated via smartphone

:
0563 0002 10

Sets

testo Smart Probes AC & Refrigeration Test & Load Kit Plus delivery

testo Smart Probes AC and refrigeration test kit plus, operated via smartphone

:
0563 0002 41

Sets

testo Smart Probes HVAC/R Ultimate kit operated via smartphone

:
0563 0002 32

Sets

testo Smart Probes HVAC kit

:
0563 0010

Accessories

Smoke tester with oil, soot sheet, for measuring soot in flu...

Smoke tester with oil and soot sheet, for measuring soot in flue gas

:
0554 0307

Accessories

Free download: testo EasyHeat PC software

:
0554 3332

Accessories

Instrument case (height: 130 mm) - for instrument, probes and accessories

:
0516 3300

Accessories

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

:
0554 1203

Accessories

Instrument bag with carrying strap

:
0516 3001

Accessories

USB mains unit, including cable

:
0554 1106

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.
