- testo 550s Smart Kit
0564 5502 02

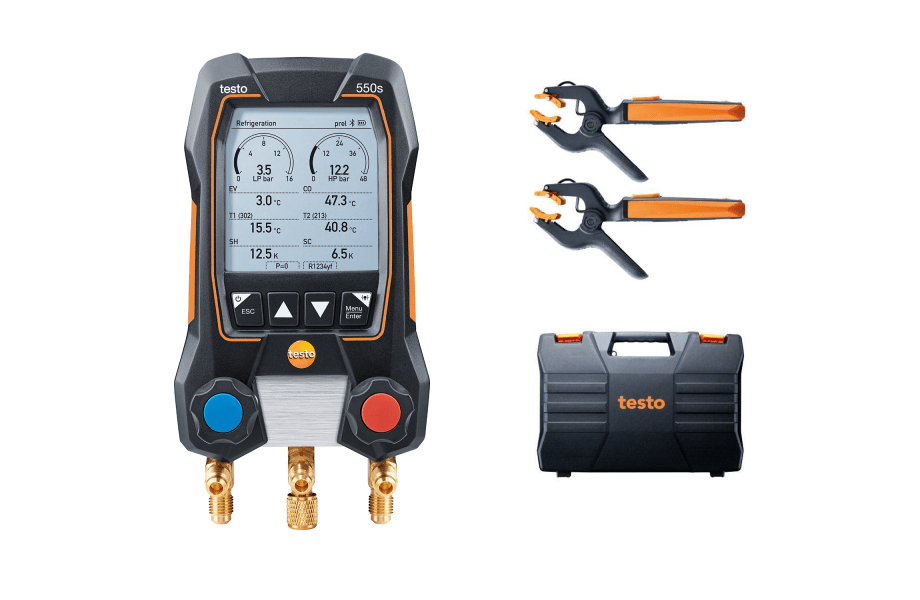

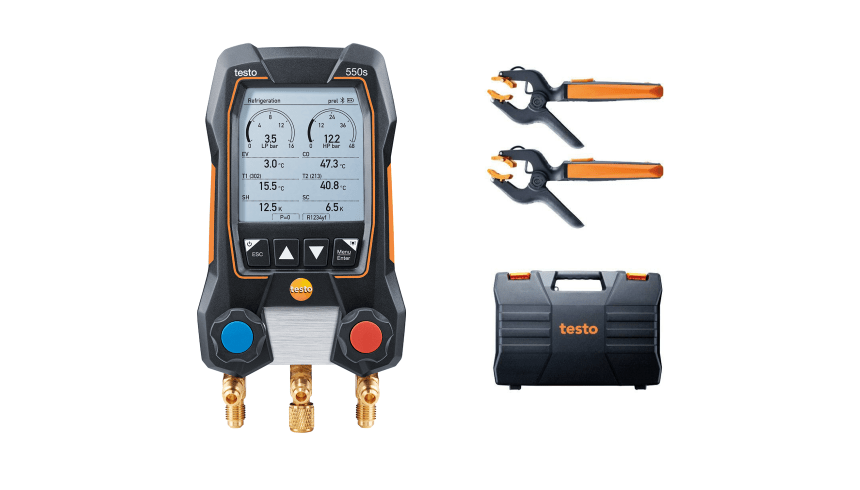

testo 550s Smart Kit - Smart digital manifold with wireless clamp temperature probes
0564 5502 02
testo 550s Smart Kit - Smart digital manifold with wireless clamp temperature probes
The kit for wireless measurements in the field of commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. Additional Bluetooth probes, e.g. for wireless, hose-free vacuum measurements with the testo 552i, are available separately.
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth®
- A3 and A2L compatible and over 90 stored refrigerants
Temperature - NTC
Temperature - NTC | Measuring range -40 to +150 °C |
|---|---|
Accuracy ±1.3 °C (-20 to +85 °C) | |
Resolution 0.1 °C | |
General technical data
General technical data | Weight 127.4 g |
|---|---|
Dimensions 183 x 90 x 30 mm | |
Operating temperature -20 to +50 °C | |
Product-/housing material Plastic | |
System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 | |
Product colour black/orange | |
Battery life 150 h | |
Battery type 3 AAA micro batteries | |
Data transfer Bluetooth® | |
Radio range 100 m | |
Refrigerant A2L / A3 compatibel | |
Storage temperature -20 to +60 °C | |
General technical data
General technical data | System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
- testo 550s digital 2-way manifold including batteries (4 x AA) and calibration protocol
- 2 x testo 115i wireless Bluetooth clamp thermometers
- Transport case
- testo Smart App (free download)
- Instruction manuals
Sets
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
