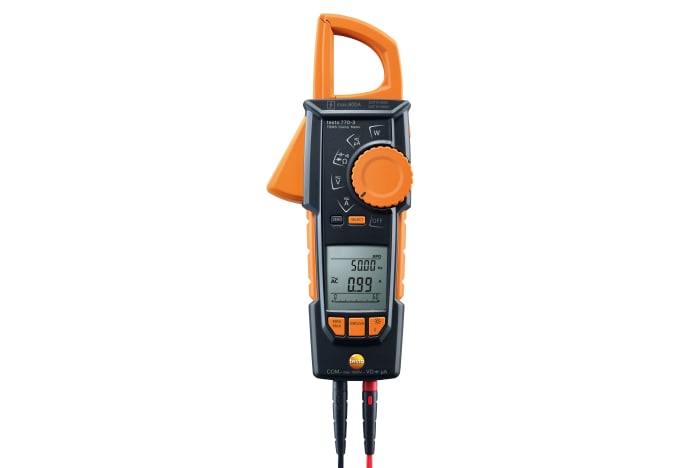

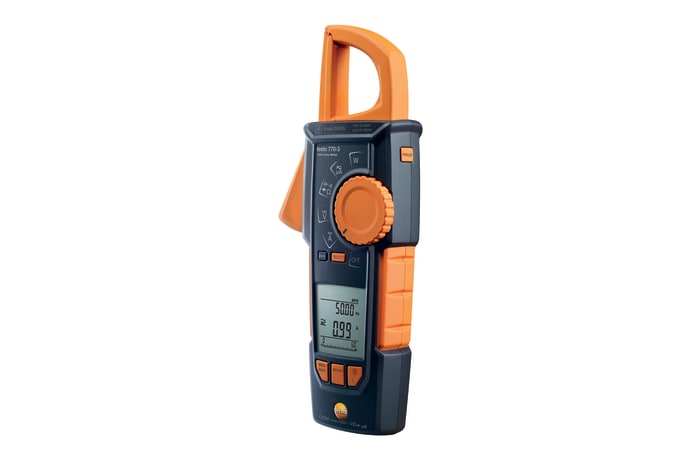

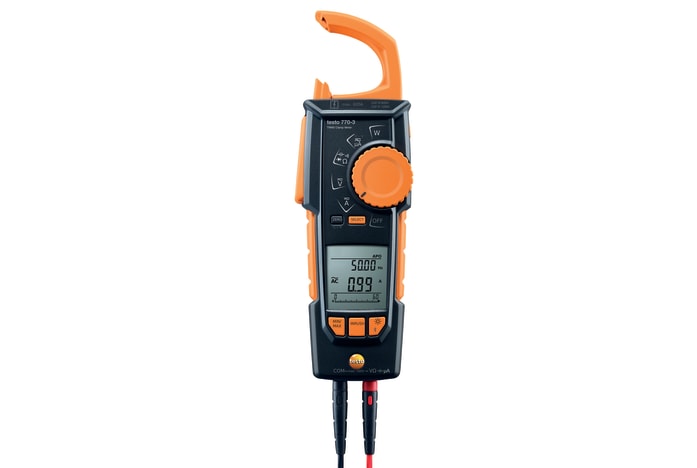

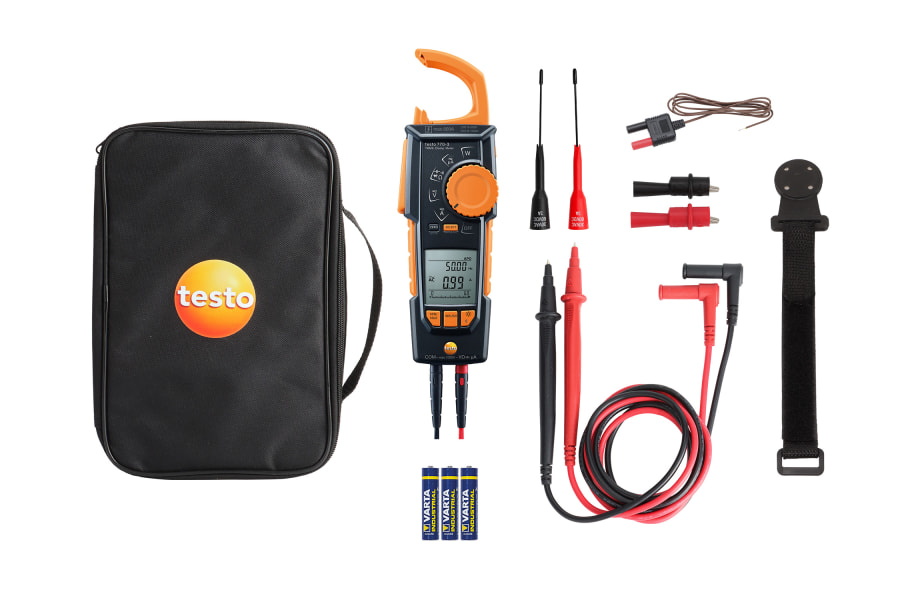

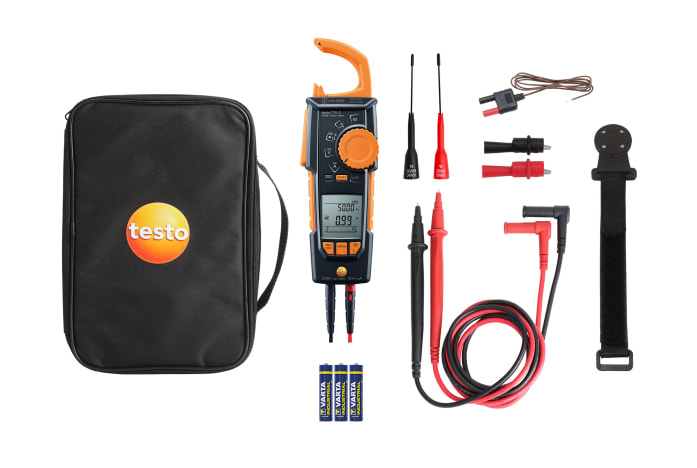

testo 770-3 Premium Kit - TRMS clamp meter with Bluetooth

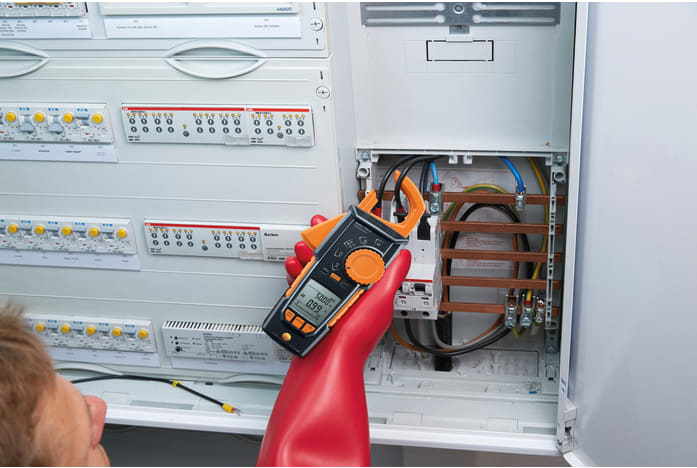

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.

Thanks to improved resolution, high-precision results are also generated in the lower current range. The testo 770-3 also has an extended voltage measurement range of up to 1000 V.

In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and μA measurements. The thermocouple probe can be used to measure temperatures in addition to electrical parameters.

The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before.

The measurement values can be clearly shown on the two-part display of the clamp meter and in the testo Smart App. The testo 770-3 can be quickly and easily connected to the testo Smart App and other Testo measuring instruments via Bluetooth. In the App, you can display the measurement curve as a graph on your smartphone/tablet and save and send readings directly in the report.

Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0,2 °C

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0,2 °C

Measuring range	1,0 to 1000,0 V
Resolution	max. 1 mV
Accuracy	± (0,8 % of mv + 3 Digit)

Measuring range

1,0 to 1000,0 V

Resolution

max. 1 mV

Accuracy

± (0,8 % of mv + 3 Digit)

Measuring range	1,0 mV to 1000,0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

Measuring range

1,0 mV to 1000,0 V

Resolution

max. 1 mV

Accuracy

± (1 % of mv + 3 Digit)

Measuring range	0,1 to 600,0 μA (measuring cables) 0,01 to 600,0 A (clamp)
Resolution	0,1 (clamp) 0,1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

Measuring range

0,1 to 600,0 μA (measuring cables)

0,01 to 600,0 A (clamp)

Resolution

0,1 (clamp)

0,1 (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (measuring cables)

± (2 % of mv + 5 Digit) (clamp)

Measuring range	0,1 to 600,0 μA (measuring cables) 0,01 to 600,0 A (clamp)
Resolution	0,01 A (clamp) 0,1 μA (measuring cables)
Accuracy	± (1,5 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

Measuring range

0,1 to 600,0 μA (measuring cables)

0,01 to 600,0 A (clamp)

Resolution

0,01 A (clamp)

0,1 μA (measuring cables)

Accuracy

± (1,5 % of mv + 5 Digit) (measuring cables)

± (2 % of mv + 5 Digit) (clamp)

Resolution	max. 0,01 Ohm
Measuring range	0,10 to 60,0 MOhm
Accuracy	± (1,5 % of mv + 3 Digit)

Resolution

max. 0,01 Ohm

Measuring range

0,10 to 60,0 MOhm

Accuracy

± (1,5 % of mv + 3 Digit)

Resolution	max. 0,01 nF
Measuring range	0,001 μF to 60000,00 μF
Accuracy	± (1,5 % of mv + 5 Digit)

Resolution

max. 0,01 nF

Measuring range

0,001 μF to 60000,00 μF

Accuracy

± (1,5 % of mv + 5 Digit)

Resolution	max. 0,1 Hz
Measuring range	0,00 Hz to -10 kHz
Accuracy	± (1 % of mv + 1 Digit)

Resolution

max. 0,1 Hz

Measuring range

0,00 Hz to -10 kHz

Accuracy

± (1 % of mv + 1 Digit)

Measuring range	0,1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0,1 W

Measuring range

0,1 W to 600 kW

Accuracy

± (5 % of mv + 5 Digit)

Resolution

0,1 W

Measuring range	0,1 to 600,0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0,1 var

Measuring range

0,1 to 600,0 kvar

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0,1 var

Measuring range	0,1 VA to 600,0 kVA
Accuracy	± 1 Digit
Resolution	0,1 VA

Measuring range

0,1 VA to 600,0 kVA

Accuracy

± 1 Digit

Resolution

0,1 VA

Measuring range	0,1 W to 600,0 kW
Accuracy	± 1 Digit
Resolution	max. 0,1 W

Measuring range

0,1 W to 600,0 kW

Accuracy

± 1 Digit

Resolution

max. 0,1 W

Measuring range	-1,00 to +1,00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0,01

Measuring range

-1,00 to +1,00

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0,01

Operating humidity	0 to 80,0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	-10 to +50 °C

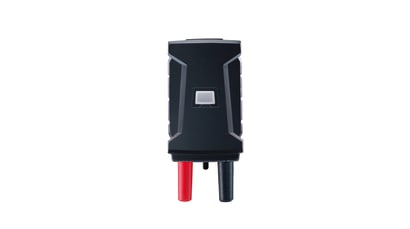

Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Product colour	Black
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 AAA micro batteries
Display size	2 lines
Display type	LCD (Liquid Crystal Display)
Interface	2 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Operating humidity

0 to 80,0 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Connectable probes

1 x temperature probe (adapter required for type K thermocouples)

Product colour

Black

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display size

2 lines

Display type

LCD (Liquid Crystal Display)

Interface

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6 000
Autom. measurement parameter detection	yes
μA current measuring range	yes

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Power Measurement

yes

Temperature measurement with adapter

yes

True RMS

yes

Inrush current measurement

yes

Bluetooth

yes

Display (counts)

6 000

Autom. measurement parameter detection

yes

μA current measuring range

yes

Weight	100 g
Tip diameter	2 mm
Tip length	18 mm
Measuring cable length	1 225 mm
Product colour	Black; red
Overvoltage Category	CAT II 1000V
Length	1,225 mm
Diameter	16 mm

Weight

100 g

Tip diameter

2 mm

Tip length

18 mm

Measuring cable length

1 225 mm

Product colour

Black; red

Overvoltage Category

CAT II 1000V

Length

1,225 mm

Diameter

16 mm

Weight	60 g
Dimensions	75 x 72 x 21 mm
Operating temperature	-20 to +500 °C
Product colour	Black
Battery type	1 x lithium type: CR 2032
Interface	plug thermocouple

Weight

60 g

Dimensions

75 x 72 x 21 mm

Operating temperature

-20 to +500 °C

Product colour

Black

Battery type

1 x lithium type: CR 2032

Interface

plug thermocouple
