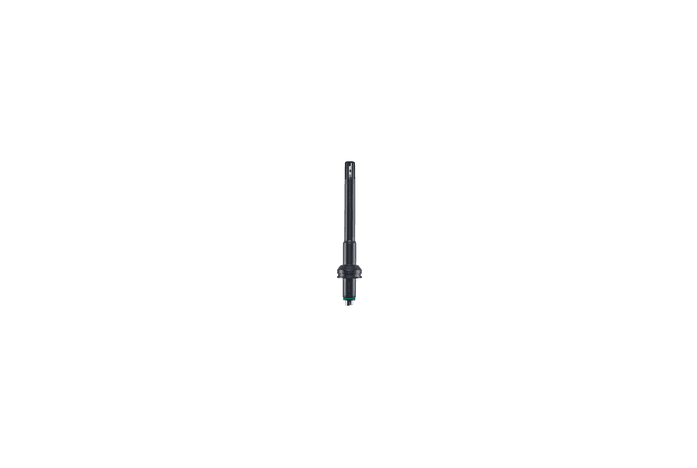

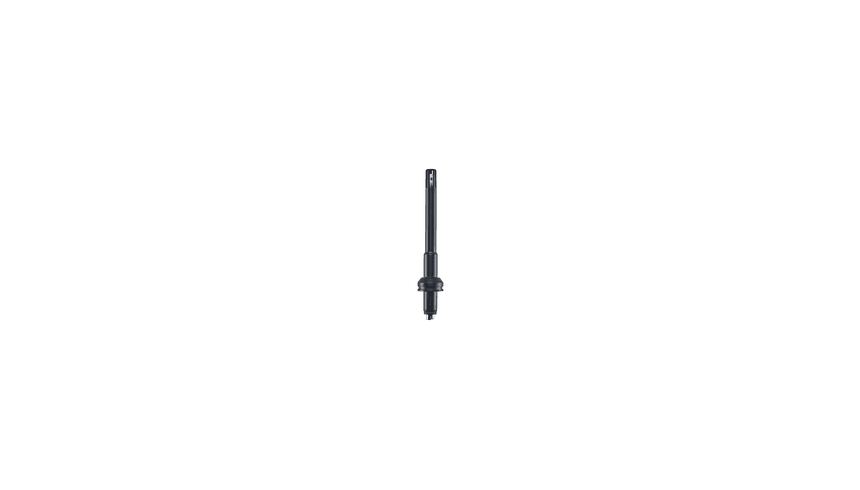

高精度温湿度探头

0636 9770
  • 直观:同时确定室内区域的相对湿度和空气温度
  • 精确:测量精度在0 ~ 90% RH的范围内可达± (0.6% RH + 均值的0.7 % );计算湿球温度、露点温度和绝对湿度
  • 方便:探头便于通过蓝牙或线缆(需单独订购)连接到通用手柄
  • 智能校准概念
  • 更多的应用,更少的设备,如果您已经拥有我们配有通用手柄的探头,您可以轻松通过高精度温湿度探头扩展探头组合。
    来自德图的可靠质量,探头配备高精度和稳定的湿度传感器。测量精度在0 ~ 90% RH的范围内以± (0.6% RH + 均值的0.7% ),并且符合国际湿度标准,如ILAC,PTB 和 NIST。

    高精度温湿度探头,包括校准协议。

    请不要在冷凝环境使用探头。如需在高湿度环境连续使用
        > 80% RH @ ≤ 30 °C ,时间 > 12 h
        > 60% RH @ > 30 °C ,时间 > 12 h

  • Vane probe (Ø 16 mm, digital) including temperature sensor, wired
    叶轮风速探头(Ø 16 mm,数字) - 含温度模块,有线
      :
      0635 9572
    • CO probe (digital) with Bluetooth®
      CO一氧化碳探头(数字) - 蓝牙
        :
        0632 1271
      • testo 400 air flow kit with hot wire probe
        testo 400 - 空调通风系统测量套装1(含三功能热线风速探头)
          :
          0563 0400 71
        • testo 400 air flow kit with 16 mm vane probe
          testo 400 - 空调通风系统测量套装1(含16mm叶轮风速探头)
            :
            0563 0400 72
          • testo 400 Universal IAQ instrument
            testo 400 - 智能型参比级多功能测量仪
              :
              0560 0400
            • testo 400 IAQ and comfort kit with tripod
              testo 400 - 舒适度评估测量套装(PMV/PPD)
                :
                0563 0401
              • testo 440 - 室内空气质量套装
                  :
                  510593 0003
                • testo 440 - IAQ及通风全面检测套装(双联)
                    :
                    514402 0001
                  • testo 440 100 mm Vane Kit with Bluetooth®
                    testo 440 100mm 叶轮风速蓝牙连接套装
                      :
                      510592 4003
                    • testo 440 Indoor Comfort ComboKit with Bluetooth®
                      testo 440 “延展” 热线风速测量套装
                        :
                        514401 0003
                      • testo 440 Air Flow ComboKit 2 with Bluetooth®
                        testo 440 ”延展“ 100mm 叶轮风速测量套装
                          :
                          514401 0005
                        • testo 440 Air Flow ComboKit 1 with Bluetooth®t 1 with Bluetooth
                          testo 440 ”延展“ 16mm 叶轮风速测量套装
                            :
                            514401 0004
                          • testo 440 三功能测量蓝牙连接套装
                              :
                              510592 4001
                            • testo 440 四功能测量套装
                                :
                                510595 4002
                              • testo 440 Laboratory kit
                                testo 440 实验室专用液体测温套装
                                  :
                                  0563 4412
                                • testo 440 Hot Wire Kit
                                  testo 440 标准有线连接热线风速套装
                                    :
                                    510595 4001
                                  • testo 440 16 mm Vane Kit
                                    testo 440 洁净室测量套装(差压、温湿度、风速)
                                      :
                                      514402 0002
                                    • testo 440 Humidity Kit with Bluetooth®
                                      testo 440 温湿度蓝牙连接套装
                                        :
                                        510592 4004
                                      • testo 440 CO2 Kit with Bluetooth®
                                        testo 440 舒适度套装(含紊流度探头及支架)
                                          :
                                          514401 0001
                                        • testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
                                          testo 440 风压风速检测套装
                                            :
                                            510593 0002
                                          • CO2 probe (digital) with Bluetooth® including temperature and humidity sensor
                                            二氧化碳探头(数字) - 蓝牙,含温湿度传感器
                                              :
                                              0632 1551
                                            • CO2 probe (digital) including temperature and humidity sensor, wired
                                              二氧化碳探头(数字) - 包括温湿度传感器,有线
                                                :
                                                0632 1552
                                              • Vane probe (Ø 100 mm, digital) including temperature sensor, wired
                                                叶轮探头(Ø 100 mm) - 包括温度传感器,有线
                                                  :
                                                  0635 9432
                                                • Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor
                                                  叶轮风速探头(Ø 100mm ,数字) - 蓝牙,含温度模块
                                                    :
                                                    0635 9431
                                                  • Vane probe (Ø 16 mm, digital) with Bluetooth®, including temperature sensor
                                                    叶轮风速探头(Ø 16 mm,数字) - 蓝牙,含温度模块
                                                      :
                                                      0635 9571
                                                    • Humidity/temperature probe (digital) with Bluetooth®
                                                      湿度/温度探头(数字) - 蓝牙
                                                        :
                                                        0636 9731
                                                      • Humidity/temperature probe (digital), wired
                                                        湿度/温度探头(数字) - 有线
                                                          :
                                                          0636 9732
                                                        • Hot wire probe (digital) with Bluetooth® including temperature and humidity sensor
                                                          热线风速探头(数字) - 蓝牙,含温湿度模块
                                                            :
                                                            0635 1571
                                                          • Hot wire probe (digital) including temperature and humidity sensor, wired
                                                            热线风速探头(数字) - 有线,含温湿度传感器
                                                              :
                                                              0635 1572
                                                            • Universal cable handle for connecting probe heads
                                                              线缆手柄,扩展探头组合
                                                                :
                                                                0554 2222
                                                              • Universal Bluetooth® handle for connecting probe heads
                                                                蓝牙手柄
                                                                  :
                                                                  0554 1111
                                                                • High-precision vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor
                                                                  高精度叶轮风速探头(Ø 100 mm,数字) - 含温度模块,蓝牙
                                                                    :
                                                                    0635 9371
                                                                  • High-precision vane probe (Ø 100 mm, digital) including temperature sensor, wired
                                                                    高精度叶轮风速探头(Ø 100 mm,数字) - 含温度模块,有线
                                                                      :
                                                                      0635 9372
                                                                    • High-precision humidity/temperature probe (digital) with Bluetooth®
                                                                      高精度温湿度探头(数字) - 蓝牙
                                                                        :
                                                                        0636 9771
                                                                      • High-precision humidity/temperature probe (digital), wired
                                                                        高精度温湿度探头(数字) - 有线
                                                                          :
                                                                          0636 9772
                                                                        • NTC

                                                                          测量范围
                                                                          -20 ~ +70 °C
                                                                          测量精度
                                                                          ±0.3 °C (+15 ~ +30 °C)
                                                                          ±0.5 °C (其余量程)
                                                                          分辨率
                                                                          0.01 °C

                                                                          电容式湿度传感器

                                                                          湿度测量范围
                                                                          0 ~ 100 %RH
                                                                          测量精度
                                                                          Hysteresis: ±0.4 %RH
                                                                          long-term stability: ±1 %RH / year
                                                                          ±0.03 %rF/K (k=1)
                                                                          ±(0.6 %RH + 0.7 %测量值) (0 ~ 90 %RH)
                                                                          ±(1.0 %RH + 0.7 %测量值) (90 ~ 100 %RH)
                                                                          分辨率
                                                                          0.01 %RH

                                                                          技术参数

                                                                          存放温度
                                                                          -20 ~ +70 °C
                                                                          重量
                                                                          20 g
                                                                          尺寸
                                                                          160 x 28 x 28 mm
                                                                          操作温度
                                                                          -20 ~ +70 °C
                                                                          探头杆直径
                                                                          12 mm
                                                                          探针套管长度
                                                                          140 mm
                                                                          产品颜色
                                                                          Black
