一台测量仪即可测量所有气候相关参数
-
内置根据 EN ISO 12599 和 ASHRAE 111 设置测量程序进行通风管道,风口及过滤器的风速风量测量
-

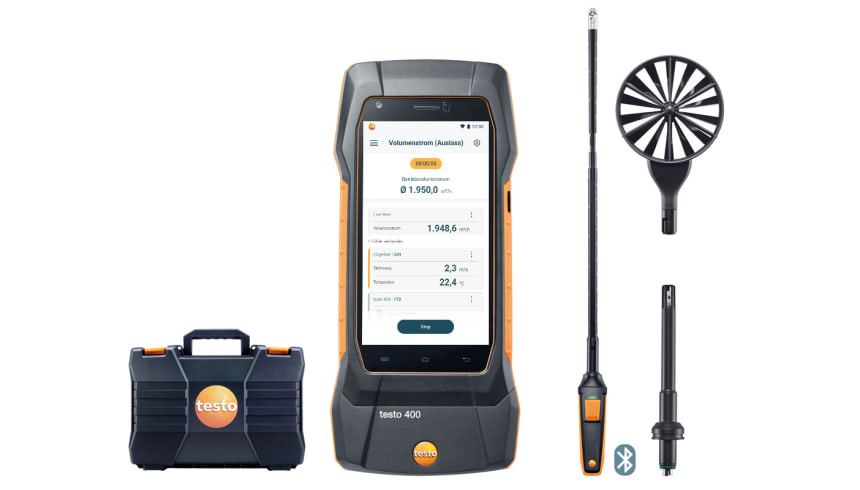

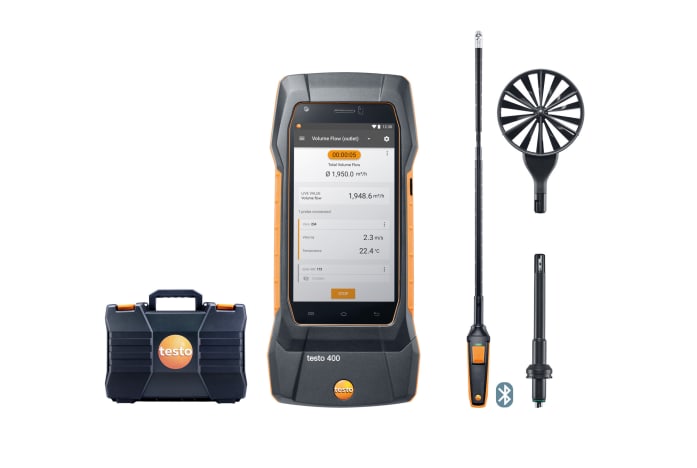

套装含主机,16mm叶轮风速探头,蓝牙手柄及伸缩杆,叶轮风速探头传感器 (Ø 100 mm),高精度温湿度探头传感器 90° 弯角适配器,仪器箱
-
可通过丰富的探头系列进行扩展
-
分析软件可用于专业报告创建与测量数据管理
-
得益于数字探头,测量仪能够避免额外的测量不确定度
-
NTC 测量范围
-40 ~ +150 °C
测量精度
±0.2 °C ±1 Digit (-25 ~ +74.9 °C)
±0.4 °C ±1 Digit (-40 ~ -25.1 °C)
±0.4 °C ±1 Digit (+75 ~ +99.9 °C)
±0.5 %测量值 ±1 Digit (其余量程)
分辨率
0.1 °C
Type K (NiCr-Ni) 测量范围
-200 ~ +1370 °C
测量精度
±(0.3 °C + 0.1 %测量值) ±1 Digit
分辨率
0.1 °C
压阻式压力传感器 测量范围
0 ~ +200 hPa
测量精度
±(0.3 Pa + 1 %测量值) ±1 Digit (0 ~ 25 hPa)
±(0.1 hPa + 1.5 %测量值) ±1 Digit (25.001 ~ 200 hPa)
分辨率
0.001 hPa
Absolute Pressure (internal sensor and external probe) 测量范围
700 ~ 1100 hPa
精度
±3 hPa
分辨力
0.1 hPa
技术参数 重量
510 g (instrument)
尺寸
210 x 95 x 39 mm ((LxWxH))
操作温度
-5 ~ +45 °C
外壳
高强度塑料
防护等级
IP40
可连接的探头
4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
产品颜色
black/orange
Camera image size
Main camera: 8.0 MP; Front camera: 5.0 MP
电池使用时间
approx. 10 hrs continuous operation
显示屏类型
5.0" touch display, HD 1280*720 pixels, IPS (160 k)
电源
Rechargeable li-ion battery (5550 mAh)
数据传输
Bluetooth®; USB 接口; WLAN
存储量
2 GB; 1,000,000 个测量值
存放温度
-20 ~ +60 °C
*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.
-
NTC 测量范围
-10 ~ +70 °C
测量精度
±1.8 °C
分辨率
0.1 °C
风速 测量范围
0.6 ~ 50 m/s
测量精度
±(0.2 m/s + 1 %测量值) (0.6 ~ +40 m/s)
±(0.2 m/s + 2 %测量值) (40.1 ~ 50 m/s)
分辨率
0.1 m/s
技术参数 存放温度
-20 ~ +60 °C
重量
425 g
直径
790 x 50 x 40 mm
操作温度
-5 ~ +50 °C
探针套管长度
230 mm
探头杆直径
16 mm
Length telescope
1,000 mm
Probe head diameter
16 mm
Product colour
black/orange
电池类型
4 x type AA 电池
电池寿命
70 h
数据传送
Bluetooth®
Radio range
20 m
-
NTC 测量范围
-20 ~ +70 °C
测量精度
±0.3 °C (+15 ~ +30 °C)
±0.5 °C (其余量程)
分辨率
0.01 °C
电容式湿度传感器 湿度测量范围
0 ~ 100 %RH
测量精度
±(0.6 %RH + 0.7 %测量值) (0 ~ 90 %RH)
±(1.0 %RH + 0.7 %测量值) (90 ~ 100 %RH)
±0.03 %rF/K (k=1)
long-term stability: ±1 %RH / year
Hysteresis: ±0.4 %RH
分辨率
0.01 %RH
技术参数 存放温度
-20 ~ +70 °C
重量
20 g
尺寸
160 x 28 x 28 mm
操作温度
-20 ~ +70 °C
探头杆直径
12 mm
探针套管长度
140 mm
产品颜色
Black
-
技术参数 重量
25 g
直径
65 x 65 x 15 mm
Product colour
Black
-
技术参数 重量
2800 g
直径
520 x 410 x 160 mm LxWxH
外壳
Plastic
Product colour
Black
