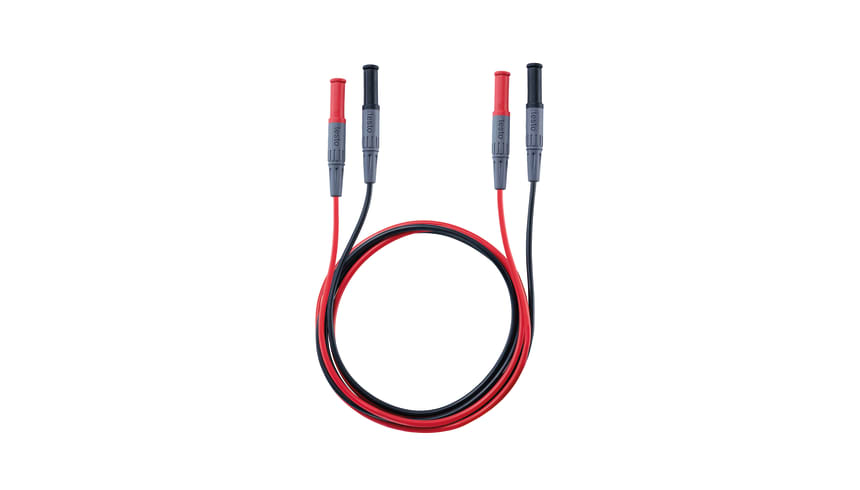

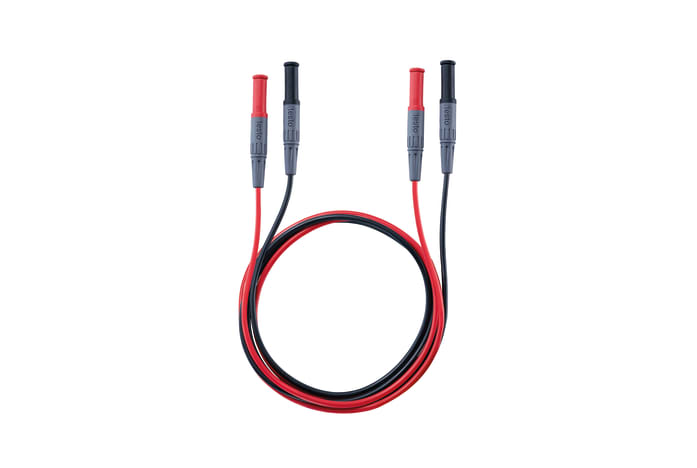

Measuring cable extensions (straight plug) - 1 set

订货号 0590 0013

CAT IV 600 V / CAT III 1000 V measurement category
Maximum current: 10 A
1 set of measuring cable extensions with straight plug
For attachment onto standard measuring cables

Use the measuring cable extensions (length 1115 mm, straight plug) for looping in the measuring instrument with available banana jacks, for direct connection of your measuring instrument to test sockets, for the use of crocodile clips and also of measuring clamps made by other manufacturers.

详情

产品描述

The cables supplied with the measuring instrument are not always the best solution. Depending on the application, a measuring cable extension is the best choice. Because you can make a direct connection between the measuring instrument and for instance a banana jack, without needing to use cumbersome crocodile clips. The same applies for example to test sockets, which are often present on boards. The measuring cable extension can also be used for crocodile clips, such as the Testo safety crocodile clips (0590 0008), which means there are universal application options.
