  2. Frozen food probe (NTC) - for screw-in use with TUC connector
0615 3211

NTC冷冻食品探头 - 螺旋式设计

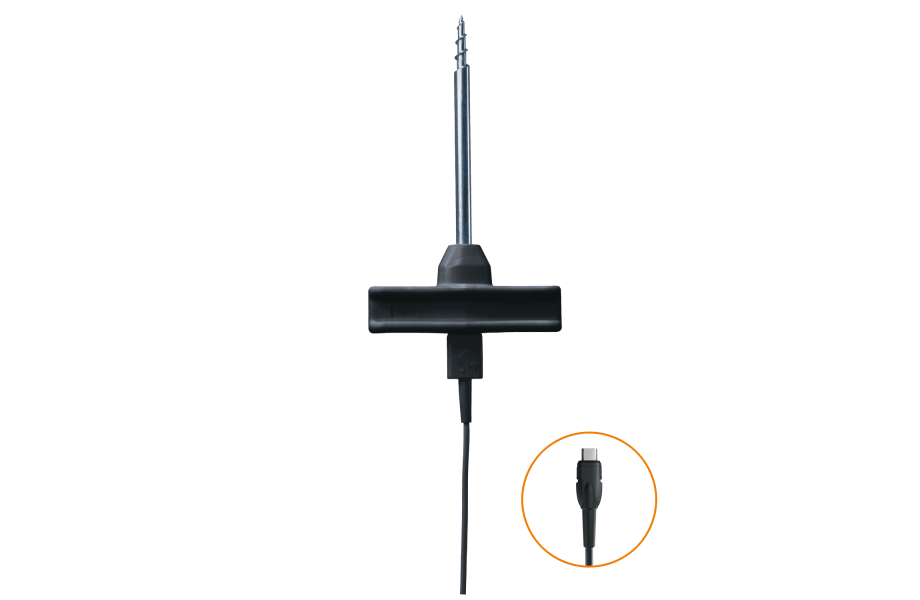

Frozen food probe NTC, corkscrew design (incl. plug-in wire)
德图NTC冷冻食品探头专业测量冷冻食品中心温度。特殊的手柄及螺旋型设计可以直接旋入冷冻食品内部,无需预钻孔。
  • NTC温度传感器
  • 直接测量冷冻食品,无需预钻孔
  • 量程 -50 ~ +140 °C
  • 符合EN 13485及HACCP标准要求
The frozen food probe (NTC) is used primarily for measuring the core temperature of frozen food. Thanks to a special handle and its helical tip, it can be screwed directly into frozen food without the need for pre-drilling. The probe is EN 13485 and HACCP-compliant, making it particularly practical for use in the food sector when connected to a corresponding measuring instrument (e.g. testo 110). The special handle is heat-resistant up to a temperature of +70 °C.

NTC

測量範圍
-50 ~ +140 °C ¹⁾
測量精度
±0.4 °C (其餘量程)
±0.2 °C (-25 ~ +75 °C)
±0.5 %測量值 (+100 ~ +140 °C)
响應時間
20 s
1) 長時間測量量程+125°C,短時間內可達+150°C 或+140°C (2分鐘)

技術參數

重量
132 g
直徑
1640 mm
電纜長度
1.5 m
探頭杆直徑
8 mm
探頭頭部直徑
4 mm
外殼
Stainless steel / GFK
探針套管長度
110 mm
探針套管末端長度
30 mm
防護等級
IP65
固定電纜
Measuring cable length
1,500 mm
產品顏色
Black; silver
1 个冷冻食品探头 (NTC) 无需打孔即可旋入,包括可插拔导线,线缆长度 1.5m。
