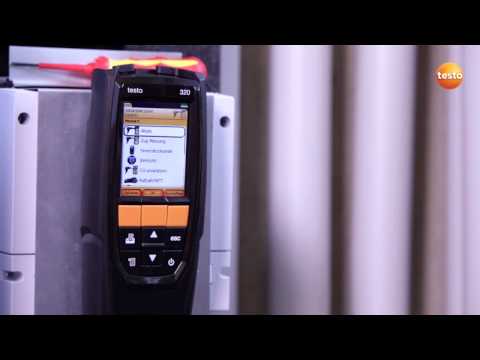

Set with flue gas analyzer testo 320 (with H2-compensated CO measurement cell and Bluetooth), modular 300 mm flue gas probe, combustion air probe and mains unit
Set with flue gas analyzer testo 320 (with H2-compensated C...
Order-Nr. 0563 3220 77
Technical Data
| General technical data | |
|---|---|
Weight |
573 g |
Dimensions |
240 x 85 x 65 mm |
Operating temperature |
-5 to +45 °C |
Display size |
240 x 320 pixels |
Display function |
Colour graphic display |
Power supply |
Battery: 3.7 V / 2,400 mAh; Mains unit: 6 V / 1.2 A |
Maximum memory |
500 Measurement values |
Storage temperature |
-20 to +50 °C |
| Differential Pressure - Piezoresistive | |
|---|---|
Measuring range |
±10000 Pa |
Accuracy |
±0.3 Pa (0 to 9.99 Pa) plus ±1 Digit ±3 % of mv (10 to 10000 Pa) plus ±1 Digit |
| Flue gas O₂ | |
|---|---|
Measuring range |
0 to 21 Vol.% |
Accuracy |
±0.2 Vol.% |
Resolution |
0.1 Vol.% |
Reaction time t₉₀ |
< 20 s |
| Flue gas CO (with H₂-compensation) | |
|---|---|
Measuring range |
0 to 8000 ppm |
Accuracy |
±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) ±10 % of mv (2001 to 8000 ppm) |
Resolution |
1 ppm |
Reaction time t₉₀ |
< 40 s |
| Flue gas COlow (with H₂-compensation) | |
|---|---|
Measuring range |
0 to 500 ppm |
Accuracy |
±2 ppm (0 to 39.9 ppm) ±5 % of mv (40 to 500 ppm) |
Resolution |
0.1 ppm |
Reaction time t₉₀ |
< 40 s |
| Differential Pressure flue gas Draught - Piezoresistive | |
|---|---|
Measuring range |
-9.99 to +40 hPa |
Accuracy |
±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40.00 hPa) |
Resolution |
0.01 hPa with fine draught option 0.001 hPa |
| Temperature | |
|---|---|
Measuring range |
-40 to +1200 °C |
Accuracy |
±0.5 °C (0 to +100.0 °C) ±0.5 % of mv (Remaining Range) |
Resolution |
0.1 °C (-40 to +999.9 °C) 1 °C (> +1000 °C) |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
Measuring range |
0 to 120 % |
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
Measuring range |
0 to 99.9 % |
Resolution |
0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
Measuring range |
0 to CO₂ max (Display range) |
Accuracy |
±0.2 Vol.% |
Resolution |
0.1 Vol.% |
Reaction time t₉₀ |
< 40 s |
| Velocity / Volume flow | |
|---|---|
Measuring range |
0.15 to 3 m/s |
Resolution |
0.1 m/s |
| Pressure measurement | |
|---|---|
Measuring range |
0 to +300 hPa |
Accuracy |
±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv (Remaining Range) |
Resolution |
0.1 hPa with fine pressure option 0.01 hPa |
| Flue gas CO (without H₂-compensation) | |
|---|---|
Measuring range |
0 to 4000 ppm |
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
Resolution |
1 ppm |
Reaction time t₉₀ |
< 60 s |
| Ambient CO | |
|---|---|
Measuring range |
0 to 500 ppm |
Accuracy |
±5 ppm (0 to 100 ppm) ±5 % of mv (> 100 ppm) |
Resolution |
1 ppm |
with CO probe
| Ambient CO₂ | |
|---|---|
Measuring range |
0 to 1 Vol.% 0 to 10000 ppm |
Accuracy |
±50 ppm or ±2 % of mv (0 to 5000 ppm) ±100 ppm or ±3 % of mv (5001 to 10000 ppm) |
with ambient CO₂ probe
| Gas leak measurement for combustible gases (via gas leak detection probe) | |
|---|---|
Measuring range |
0 to 10000 ppm CH₄ / C₃H₈; Display range |
Accuracy |
Signal optical display (LED) audible signal via buzzer |
Reaction time t₉₀ |
< 2 s |
with gas leak detection probe
| Temperature (via the fine pressure probe) | |
|---|---|
Measuring range |
-40 to +1200 °C max. (dependent on probe) |
Accuracy |
±0.5 °C (-40 to 100 °C) ±0.5 % of mv (Remaining Range) plus probe accuracy |
Resolution |
0.1 °C |
Probes
Accessories for probes
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
Order Number: 0554 1203
AED 213
excl. VAT
Differential temperature set consisting of 2 Velcro probes and temperature adaper testo 327
Order Number: 0554 1208
AED 522
excl. VAT
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
Order Number: 0600 9740
AED 750
excl. VAT
Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C
Order Number: 0600 9741
AED 815
excl. VAT
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Order Number: 0600 9760
AED 1.158
excl. VAT
Combustion air / temperature
Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
Order Number: 0600 9787
AED 500
excl. VAT
Probes
AED 881
excl. VAT
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Order Number: 0600 9761
AED 1.190
excl. VAT
Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
Order Number: 0600 9763
AED 1.195
excl. VAT
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
Order Number: 0600 9762
AED 1.153
excl. VAT
AED 1.505
excl. VAT
Temperature probes
Mini ambient air probe for flue gas analyzers – measuring range: 0 to +80 °C
Order Number: 0600 3692
AED 259
excl. VAT
Accessories
Accessories for measuring instrument
Instrument case (height: 130 mm) - for instrument, probes and accessories
Order Number: 0516 3300
AED 384
excl. VAT
Smoke tester with oil and soot sheet, for measuring soot in flue gas, excl. cone (part no. 0554 9010)
Order Number: 0554 0307
AED 536
excl. VAT
