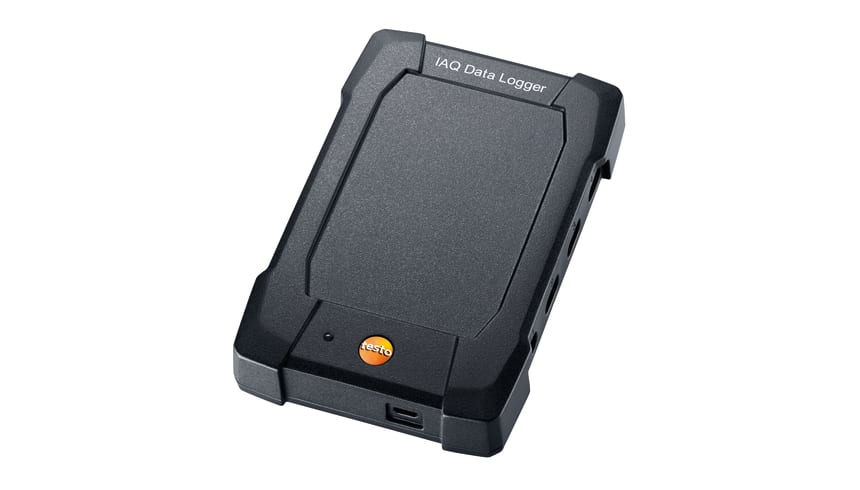

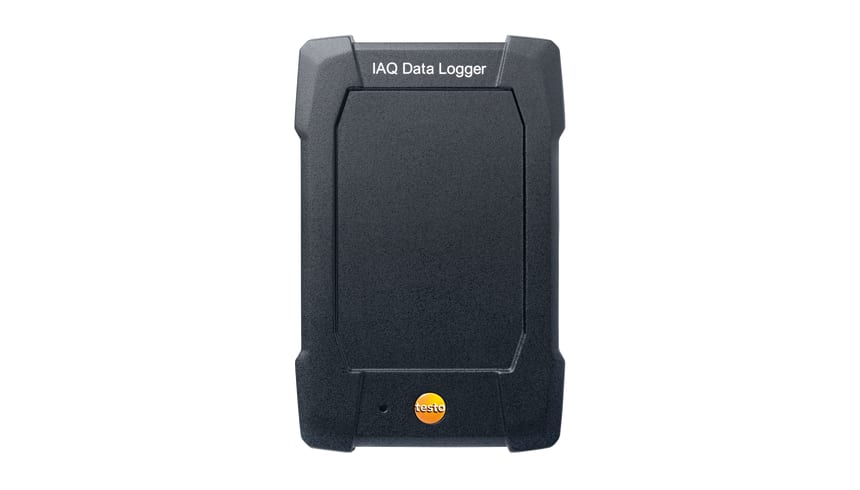

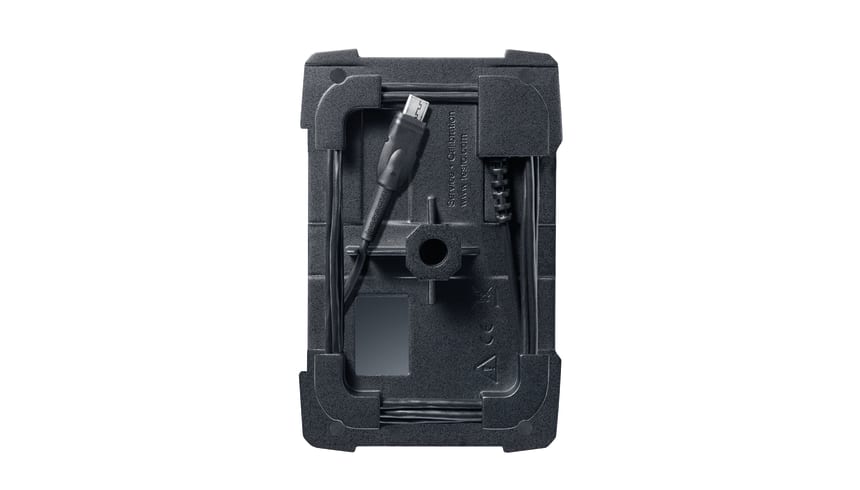

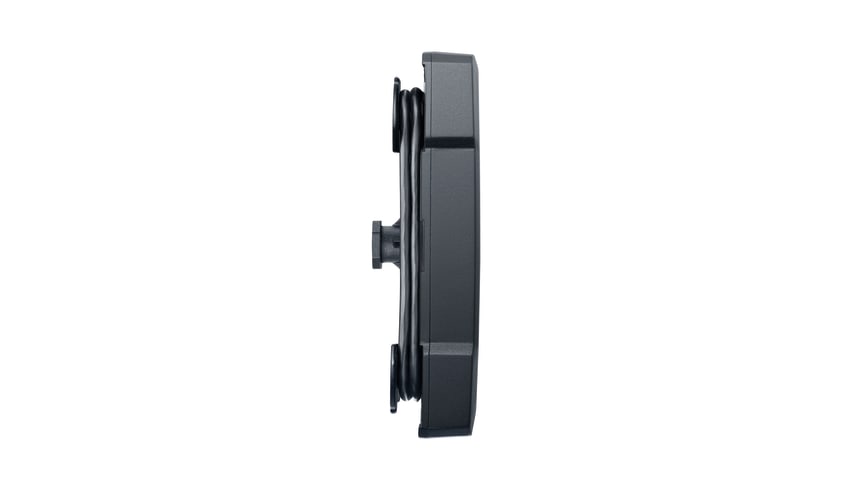

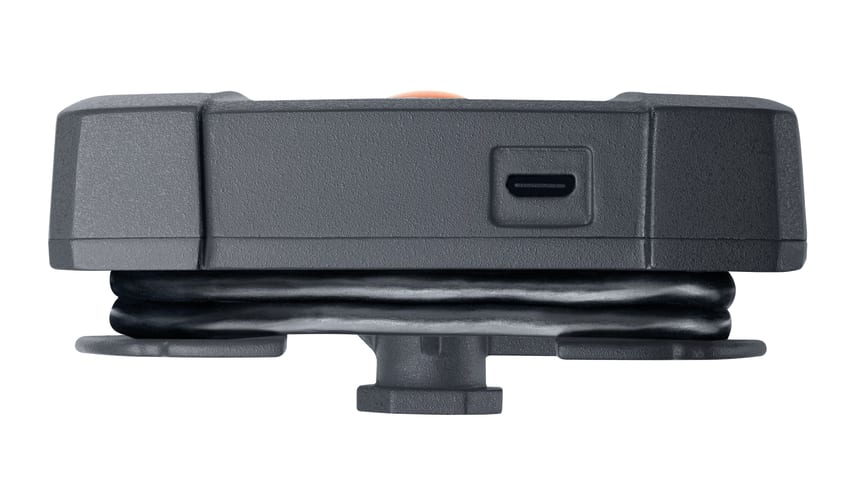

IAQ data logger for long-term measurements

0577 0400
$2 008.00 $2 208.80
1
  • Data logger configurable via testo 400 universal IAQ instrument
  • Compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature
  • Stand-alone data logger for long-term measurements up to 2 weeks

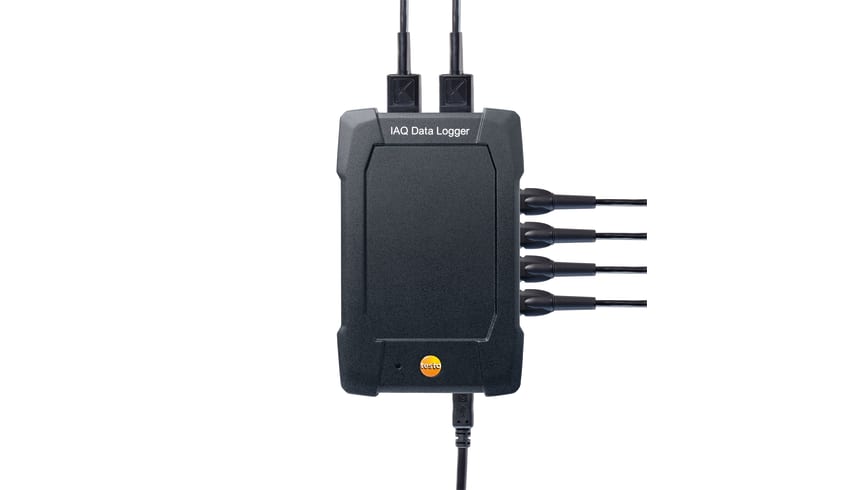

  • Connect up to six fixed cable probes at the same time
  • For long-term monitoring of the indoor air quality: Use the IAQ data logger as a stand-alone measuring unit for carrying out long-term measurements with the testo 400 IAQ measuring instrument. While the stand-alone data logger is carrying out the IAQ measurement, you can use the IAQ measuring instrument for measurements elsewhere.
    The IAQ data logger is ideal for carrying out long-term measurements of indoor air quality. Programming of measuring interval and measurement period of the stand-alone data logger is carried out via the testo 400 universal IAQ instrument (please order separately). Once the IAQ measurement is completed, you can read out, analyze and document all the saved values with the testo 400.

    Particularly useful: Since the data logger acts independently of the measuring instrument during the measurement, you can use the IAQ measuring instrument to carry out measurements elsewhere in the meantime.

    Use the compatible probes (please order separately) to measure the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature. The IAQ data logger offers connection options for up to six fixed cable probes at the same time.

    To install data loggers and probes, you can order an accessory in the form of a practical tripod.


    Main applications of the IAQ data logger

    In combination with the corresponding probes, the IAQ data logger is ideal for carrying out the following measurements:

    • PMV/PPD measurement in accordance with EN ISO 7730 / ASHRAE 55
    • Local discomfort level measurement in accordance with EN ISO 7730 / ASHRAE 55, e.g. draught rate and degree of turbulence at up to three positions at the same time
    • NET measurement in accordance with DIN 33403


    1 x IAQ data logger for long-term measurements, including mains unit with USB cable.

  • CO probe (digital), wired
    CO probe (digital) - wired
      :
      0632 1272
      $822.00 $904.20
      1
    • CO2 probe (digital) including temperature and humidity sensor, wired
      COâ‚‚ probe (digital) - including temperature and humidity sensor, wired
        :
        0632 1552
        $1 155.00 $1 270.50
        1
      • Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)
        Clamp probe with NTC temperature sensor - for measurements on pipes (Ø 6-35 mm)
          :
          0615 5505
          $120.00 $132.00
          1
        • Flexible temperature probe (digital)
          Flexible temperature probe (digital) - with Pt100 temperature sensor
            :
            0618 0071
          • Fume cupboard probe (digital), wired
            Fume cupboard probe (digital) - wired
              :
              0635 1052
              $1 617.00 $1 778.70
              1
            • Globe-Thermometer ~ 150 mm, TE Typ K, zum Messen der Strahlung
              Globe thermometer (TC type K) - for radiant heat
                :
                0602 0743
                $951.00 $1 046.10
                1
              • High-precision humidity/temperature probe (digital), wired
                High-precision humidity/temperature probe (digital) - wired
                  :
                  0636 9772
                  $1 024.00 $1 126.40
                  1
                • High-precision immersion/penetration probe (digital)
                  High-precision immersion/penetration probe (digital) - with Pt100 temperature sensor
                    :
                    0618 0275
                  • High-precision vane probe (Ø 100 mm, digital) including temperature sensor, wired
                    High-precision vane probe (Ø 100 mm, digital) - including temperature sensor, wired
                      :
                      0635 9372
                      $1 905.00 $2 095.50
                      1
                    • Hot wire probe (digital) including temperature and humidity sensor, wired
                      Hot wire probe (digital) - including temperature and humidity sensor, wired
                        :
                        0635 1572
                        $1 689.00 $1 857.90
                        1
                      • Humidity/temperature probe (digital), wired
                        Humidity/temperature probe (digital) - wired
                          :
                          0636 9732
                          $360.00 $396.00
                          1
                        • Immersion/penetration probe (digital)
                          Immersion/penetration probe (digital) - with Pt100 temperature sensor
                            :
                            0618 0073
                            $553.00 $608.30
                            1
                          • Lux probe (digital) for measuring illuminance, wired
                            Lux probe (digital) - for measuring illuminance, wired
                              :
                              0635 0551
                              $805.00 $885.50
                              1
                            • Pipe wrap probe with NTC temperature sensor for measurements on pipes (Ø 5-65 mm)
                              Pipe wrap probe with NTC temperature sensor - For measurements on pipes (Ø 5-65 mm)
                                :
                                0615 5605
                                $435.00 $478.50
                                1
                              • Robust air probe with NTC temperature sensor
                                Robust air probe - with NTC temperature sensor
                                  :
                                  0615 1712
                                  $182.00 $200.20
                                  1
                                • Robust humidity/temperature probe (digital) - for temperatures up to +180 °C, wired
                                  Robust humidity/temperature probe (digital) - for temperatures up to +180 °C, wired

                                    :
                                    0636 9775
                                    $1 187.00 $1 305.70
                                    1
                                  • Robust, fast-action air probe (digital)
                                    Robust, fast-action air probe (digital) - with Pt100 temperature sensor
                                      :
                                      0618 0072
                                    • Temperature probe with Velcro and NTC temperature sensor
                                      Temperature probe with Velcro and NTC temperature sensor
                                        :
                                        0615 4611
                                        $219.00 $240.90
                                        1
                                      • Turbulence probe (digital), wired
                                        Turbulence probe (digital) - wired
                                          :
                                          0628 0152
                                          $2 149.00 $2 363.90
                                          1
                                        • Vane probe (Ø 100 mm, digital) including temperature sensor, wired
                                          Vane probe (Ø 100 mm, digital) - including temperature sensor, wired
                                            :
                                            0635 9432
                                            $987.00 $1 085.70
                                            1
                                          • Vane probe (Ø 16 mm, digital) wired
                                            Vane probe (Ø 16 mm, digital) - wired
                                              :
                                              0635 9532
                                              $700.00 $770.00
                                              1
                                            • Vane probe (Ø 16 mm, digital) including temperature sensor, wired
                                              Vane probe (Ø 16 mm, digital) - including temperature sensor, wired
                                                :
                                                0635 9572
                                                $1 818.00 $1 999.80
                                                1
                                              • Waterproof immersion/penetration probe with NTC temperature sensor
                                                Waterproof immersion/penetration probe - with NTC temperature sensor
                                                  :
                                                  0615 1212
                                                  $176.00 $193.60
                                                  1
                                                • testo 440 16 mm Vane Kit
                                                  testo 440 16 mm Vane Kit
                                                    :
                                                    0563 4401
                                                    $1 329.00 $1 461.90
                                                    1
                                                  • testo 440 Air Flow ComboKit 2 with Bluetooth®
                                                    testo 440 Air Flow ComboKit 2 with Bluetooth®
                                                      :
                                                      0563 4407
                                                      $2 397.00 $2 636.70
                                                      1
                                                    • testo 440 Indoor Comfort ComboKit with Bluetooth®
                                                      testo 440 Indoor Comfort ComboKit with Bluetooth®
                                                        :
                                                        0563 4408
                                                        $3 959.00 $4 354.90
                                                        1
                                                      • testo 440 Lux Kit
                                                        testo 440 Lux Kit
                                                          :
                                                          0563 4402
                                                          $1 487.00 $1 635.70
                                                          1
                                                        • testo 400 Universal IAQ instrument
                                                          testo 400 - Universal IAQ instrument
                                                            :
                                                            0560 0400
                                                          • testo 400 IAQ and comfort kit with tripod
                                                            testo 400 IAQ and comfort kit with tripod
                                                              :
                                                              0563 0401
                                                            • testo 400 air flow kit with 16 mm vane probe
                                                              testo 400 air flow kit with 16 mm vane probe
                                                                :
                                                                0563 0400 72
                                                              • testo 400 air flow kit with hot wire probe
                                                                testo 400 air flow kit with hot wire probe
                                                                  :
                                                                  0563 0400 71
                                                                • Temperature - NTC

                                                                  Measuring range
                                                                  -40 to +150 °C
                                                                  Accuracy
                                                                  ±0.5 % of mv ±1 Digit (Remaining Range)
                                                                  ±0.4 °C ±1 Digit (+75 to +99.9 °C)
                                                                  ±0.2 °C ±1 Digit (-25 to +74.9 °C)
                                                                  ±0.4 °C ±1 Digit (-40 to -25.1 °C)
                                                                  Resolution
                                                                  0.1 °C

                                                                  Temperature - TC Type K (NiCr-Ni)

                                                                  Measuring range
                                                                  -200 to +1370 °C
                                                                  Accuracy
                                                                  ±(0.3 °C + 0.1 % of mv) ±1 Digit
                                                                  Resolution
                                                                  0.1 °C

                                                                  General technical data

                                                                  Storage temperature
                                                                  -20 to +60 °C
                                                                  Weight
                                                                  162 g
                                                                  Dimensions
                                                                  136 x 89 x 39 mm (LxWxH)
                                                                  Operating temperature
                                                                  -5 to +45 °C
                                                                  Product-/housing material
                                                                  Plastic
                                                                  Protection class
                                                                  IP20
                                                                  Product colour
                                                                  Black
                                                                  Connectable probes
                                                                  4 x digital probe with fixed cable or NTC temperature probe with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
                                                                  Cable length
                                                                  1 m
                                                                  Power supply
                                                                  External power supply via mains unit
                                                                  Interface
                                                                  USB
                                                                  Memory
                                                                  360,000 measuring values; 1.5 MB
                                                                  *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.
