0602 0393

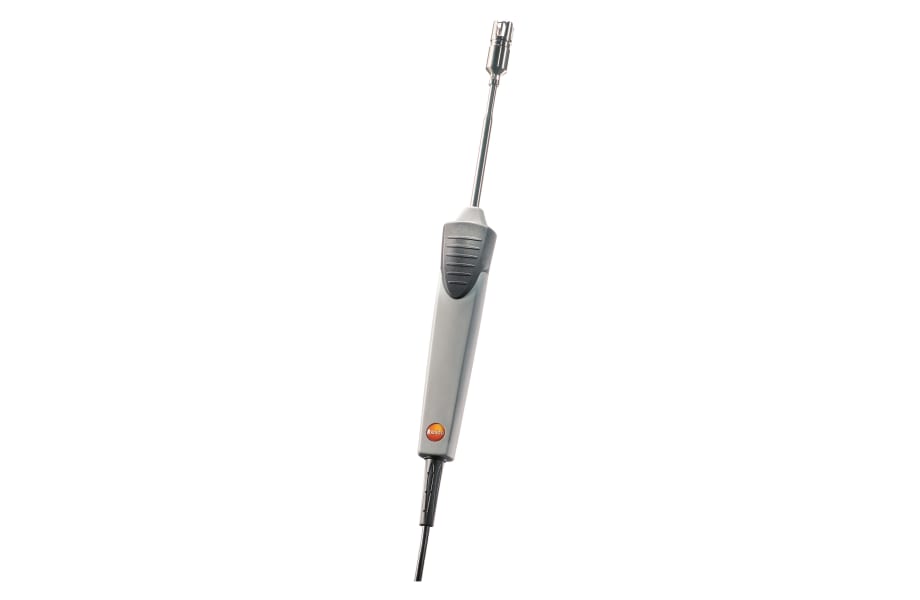

Fast-action surface probe (TC type K)

Fast-action surface probe with sprung thermocouple strip
Redaktionsschneller Oberflächenfühler mit federndem Thermometer
The extremely fast-action surface temperature probe with sprung thermocouple strip is suitable for a wide range of applications – including uneven surfaces.
  • Fast response time (3 seconds) thanks to the thermocouple strip
  • Thermocouple type K
  • Also suitable for uneven surfaces
  • Measuring range short-term up to +500°C
The surface temperature probe (thermocouple type K) features a thermocouple strip, which guarantees a fast response time and enables measurements to be carried out on uneven surfaces.

It has a very large measuring range and can be used for many different applications:
  • Detection of thermal bridges in walls
  • Maintenance and checking of machinery
  • Process monitoring of production steps
  • Adjustment of heating systems (radiators, pipes, boilers)
  • Quality checks

Temperature - TC Type K (NiCr-Ni)

Measuring range
-60 to +300 °C
Accuracy
Class 2 ¹⁾
Reaction time
3 s
1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C.

General technical data

Weight
126 g
Dimensions
length: 253 mm
Length probe shaft tip
39 mm
Diameter probe shaft
5 mm
Diameter probe shaft tip
12 mm
Cable length
1.17 m
Fixed cable
yes
Length probe shaft
115 mm
Product colour
grey
Interface
plug thermocouple
Fast-action surface probe (TC type K) with fixed cable 1.2 m.
