testo Smart Probes HVAC kit

Wireless, versatile, easy to use: The testo Smart Probes testo 915i and testo 510i with smartphone operation and Bluetooth are part of the popular testo Smart Probes portfolio. The thermometer testo 915i provides fast, reliable measurement results and is particularly versatile and easy to use in combination with the probes, Bluetooth and Smart App. The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

testo Smart Probes HVAC kit: Temperature & differential pressure measurement with smartphone operation

Versatile in all temperature-relevant applications: testo 915i is compatible with all Testo and commercially available thermocouple probes Type K

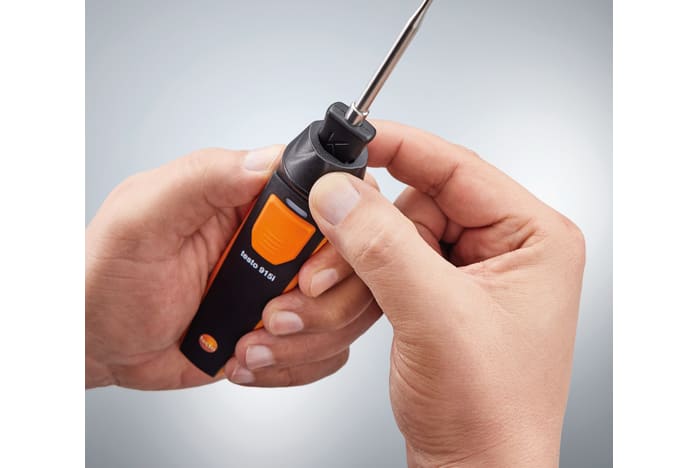

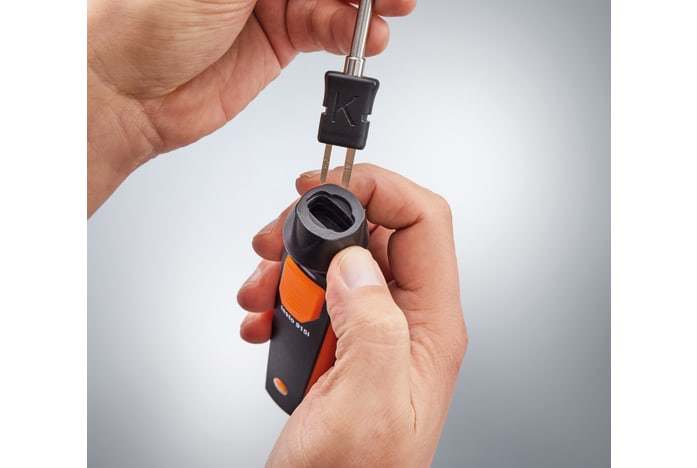

Innovative locking mechanism of testo 915i handle for easy, secure fixing of plug-in Testo probes

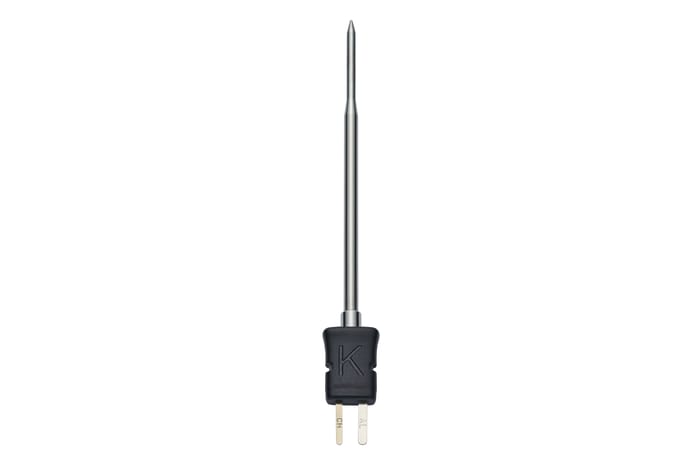

Robust and fast-reaction immersion/penetration probe (TE Type K, class 1), measuring range -50 to +400 °C, application: temperature measurement in liquids, pasty and semi-solid media
Fast-reaction surface probe (TE Type K, Class 1) with spring-loaded thermocouple band, measuring range -50 to +350 °C, application: temperature measurement on smooth and non-planar surfaces, e. g. also for measurements on pipes

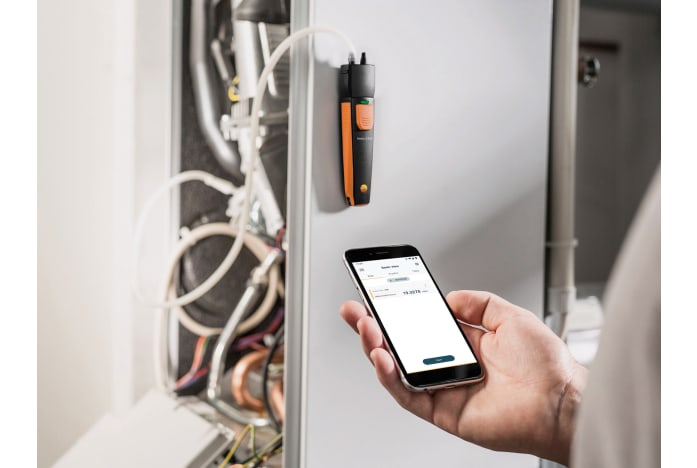

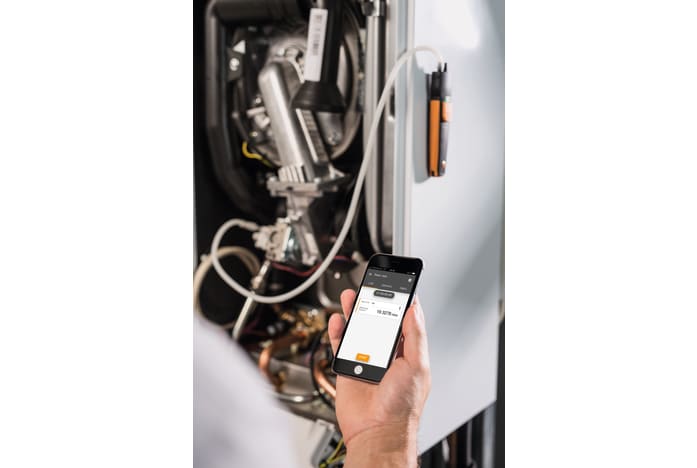

Handy and intelligent: the compact differential pressure measuring instrument testo 510i with professional measurement technology and smartphone operation

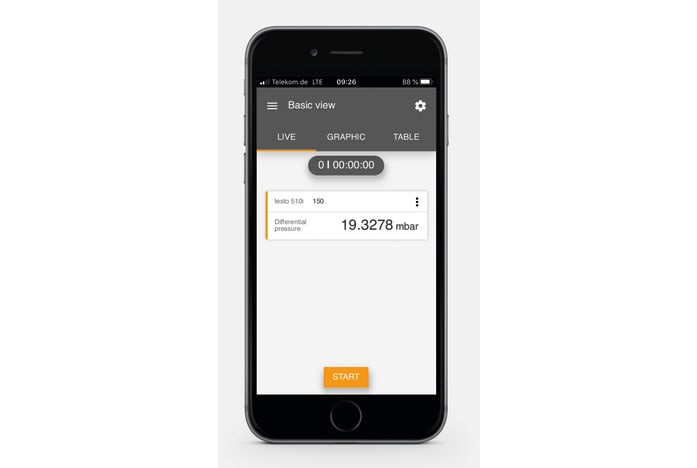

testo Smart App: Display of readings, clear graphical presentation of temperature curves, documentation directly on site and sending as PDF or CSV files
testo Smart Case: Case for safe storage and convenient transportation of thermometer and probes

: 0563 5915

testo 915i temperature kit - Thermometer with temperature probes and smartphone operation

Smart Probe for wireless temperature measurement in a wide range of applications, thanks to a large selection of probes and compatibility with standard type K thermocouple probes

: 0560 1510

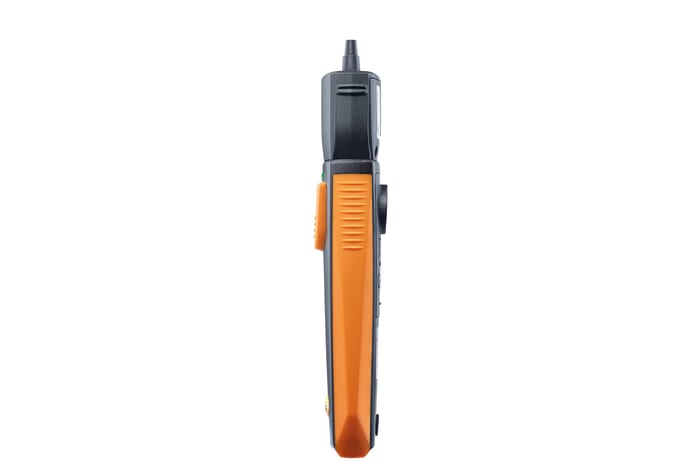

testo 510i - differential pressure measuring instrument with smartphone operation

Measurement of gas flow and static pressure

testo 915i temperature kit - Thermometer with temperature probes and smartphone operation

0563 5915

Temperature - TC Type K (NiCr-Ni)

Temperature - TC Type K (NiCr-Ni)	Measuring range -50 to +350 °C (surface probe) -50 to +400 °C (air probe, immersion/penetration probe)
	Accuracy air probe, immersion/penetration probe: ±1.0 °C (-50 to +100 °C) surface probe: ±(1.0 °C + 1 % of mv) air probe, immersion/penetration probe: ±1 % of mv (Remaining Range)
	Resolution 0.1 °C
	Reaction time t₉₀ = 3 s (immersion/penetration probe, surface probe) t₉₀ = 60 s (air probe)

General technical data

General technical data	Weight testo Smart Case (temperature): 250 g air probe, immersion/penetration probe: 11 g Bluetooth® handle: 88 g surface probe: 22 g
	Dimensions Bluetooth® handle: 129 x 31 x 31 mm (LxWxH) diameter probe tip: 3 mm (immersion/penetration probe), 12 mm (surface probe) diameter probe shaft: 4 mm (air probe), 5 mm (immersion/penetration probe), 5 mm (surface probe) testo Smart Case (temperature): 250 x 180 x 70
	Operating temperature -20 to +50 °C
	Product-/housing material Plastic
	Protection class IP 20 (air probe, surface probe); IP 40 (immersion/penetration probe)
	System requirements requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
	Product colour black/orange
	Plug-in probe connection Lockable connection to 4 standard probes testo 915i; Standard plug-in connection to other common TC probes
	Battery life 150 h
	Battery type 3 AAA micro batteries
	Data transfer Bluetooth®; automatic connection to testo Smart App and Testo measuring instruments
	Radio range 100 m
	Refrigerant A2L / A3 compatibel
	Storage temperature -20 to +60 °C

testo 510i - differential pressure measuring instrument with smartphone operation

0560 1510

Differential pressure (internal sensor) - Piezoresistive

Differential pressure (internal sensor) - Piezoresistive	Measuring range -150 to +150 hPa
	Accuracy ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
	Resolution 0.01 hPa

General technical data

General technical data	Weight 92 g
	Dimensions 148 x 36 x 23 mm
	Operating temperature -20 to +50 °C
	Product-/housing material ABS / TPE
	System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
	Product colour black/orange
	Battery life 150 h
	Battery type 3 AAA micro batteries
	Storage temperature -20 to +60 °C

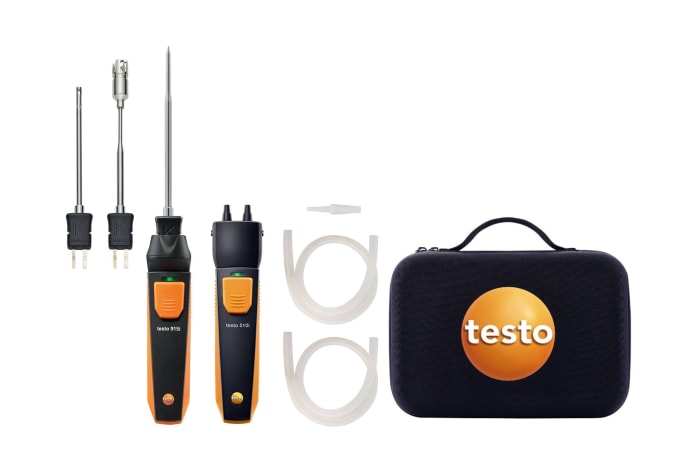

Thermometer with smartphone operation, Smart Probe testo 915i
Differential pressure measuring instrument with smartphone operation, Smart Probe testo 510i, incl. hose set (Ø 4 mm and 5 mm) with adapter

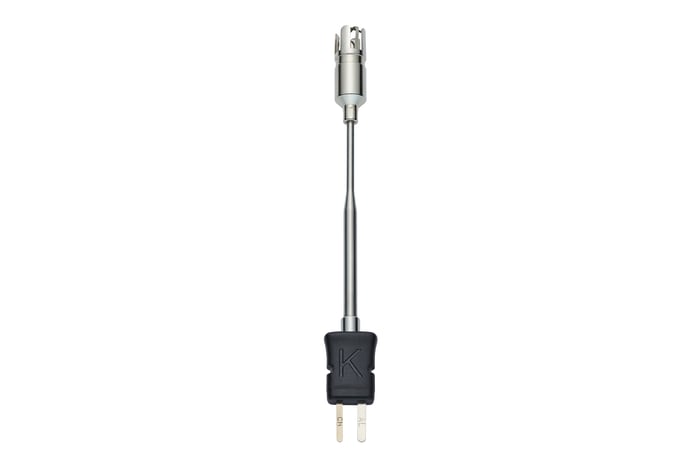

Air probe (TC Type K, Class 1)

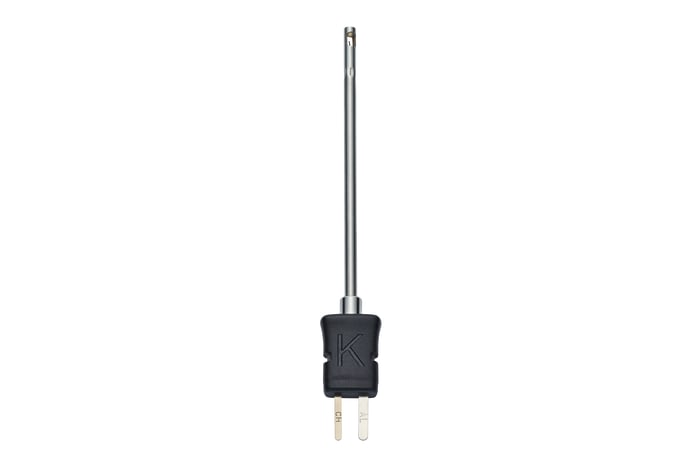

Immersion/penetration probe (TC Type K, Class 1)
Surface probe (TC Type K, Class 1)
testo Smart Case for storage
Batteries
Calibration protocol
