- testo Smart Probes heating kit
0563 0004 10
testo Smart Probes heating kit
0563 0004 10
testo Smart Probes heating kit

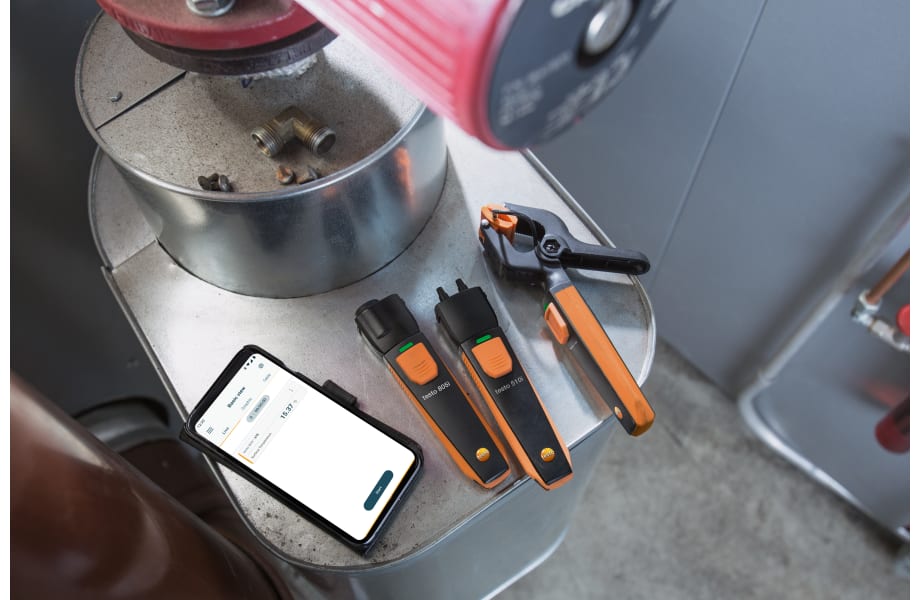

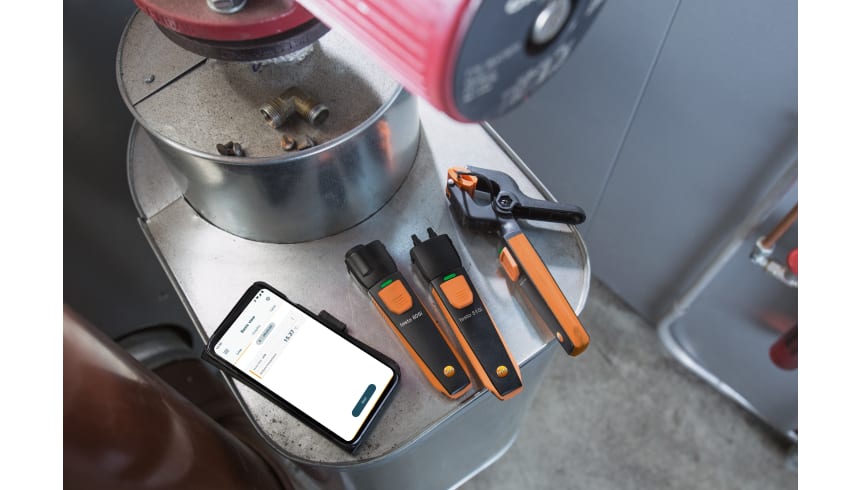

For heating engineers: Compact kit containing three measuring instruments for carrying out your most important measuring tasks involving heating systems. The testo Smart App enables you to work more easily and efficiently: Use the measurement menus for pressure drop test with alarm function or for non-contact IR temperature measurement with image documentation including measuring value and measurement spot marking. Measurement data reports can be emailed directly as a PDF or Excel file.
- Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure
- Measurement menu for pressure-drop test including alarm function
- Display measurement data as a graph or table and analyze and send via testo Smart App
- In conjunction with your smartphone/tablet, measure and check all heating system temperatures and pressures
Temperature - NTC
Temperature - NTC | Measuring range -40 to +150 °C |
|---|---|
Accuracy ±1.3 °C (-20 to +85 °C) | |
Resolution 0.1 °C | |
General technical data
General technical data | Weight 127.4 g |
|---|---|
Dimensions 183 x 90 x 30 mm | |
Operating temperature -20 to +50 °C | |
Product-/housing material Plastic | |
System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 | |
Product colour black/orange | |
Battery life 150 h | |
Battery type 3 AAA micro batteries | |
Data transfer Bluetooth® | |
Radio range 100 m | |
Refrigerant A2L / A3 compatibel | |
Storage temperature -20 to +60 °C | |
Differential pressure (internal sensor) - Piezoresistive
Differential pressure (internal sensor) - Piezoresistive | Measuring range -150 to +150 hPa |
|---|---|
Accuracy ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) | |
Resolution 0.01 hPa | |
General technical data
General technical data | Weight 92 g |
|---|---|
Dimensions 148 x 36 x 23 mm | |
Operating temperature -20 to +50 °C | |
Product-/housing material ABS / TPE | |
System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 | |
Product colour black/orange | |
Battery life 150 h | |
Battery type 3 AAA micro batteries | |
Storage temperature -20 to +60 °C | |
Temperature - Infrared
Temperature - Infrared | Measuring range -30 to +250 °C |
|---|---|
Accuracy ±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C) | |
Resolution 0.1 °C | |
General technical data
General technical data | Weight 97 g |
|---|---|
Dimensions 140 x 36 x 25 mm | |
Operating temperature -10 to +50 °C | |
Product-/housing material ABS / TPE | |
System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 | |
Product colour black/orange | |
Battery life 30 h | |
Battery type 3 AAA micro batteries | |
Storage temperature -20 to +60 °C | |
General technical data
General technical data | Dimensions 250 x 180 x 70 mm |
|---|---|
Product colour Black | |
Weight 249.8 g | |
- 1 x testo 115i surface thermometer operated via smartphone, including batteries and calibration protocol (0560 2115 02)
- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo Smart Case “Heating”, including foam insert (0516 0270)
