Saveris base including GSM module for data logger system testo Saveris

Order-Nr.  0572 0221

  • Up to 150 probes can be connected

  • Graphical display, 4 control keys

  • Interfaces: radio, Ethernet, USB

  • SMS alarm and alarm relay for connection of alarm transmitters (e.g. lights, horns)

The Saveris base is the heart of our professional testo Saveris data logger system. It receives the measurement data from up to 150 probes, then evaluates and documents them. So that you are informed in good time about any limit value violations, the Saveris base with GSM module triggers an alarm: by SMS to your mobile or via alarm relay to lights or horns.

Product Description

With the testo Saveris data logger system you can monitor the climate values in large bakeries, blood banks, museums, clinics, laboratories and many other climate-sensitive buildings. The Saveris base including GSM module is the heart of this system:

It receives the readings from up to 150 probes, evaluates them and if necessary issues an alarm. In the process, the instrument can save up to 40 000 readings per measurement channel independently of the PC. With a measuring cycle of 15 minutes, this corresponds to one year's memory capacity, or in other words: a total of 18 000 000 readings.


Dependable data logger system through reliable alarm

The Saveris base including GSM module warns you of critical values with an alarm via SMS on your mobile or smartphone.

In addition, the Saveris base including GSM module has an alarm relay for connection to various alarm transmitters: In this way the alarm can for example be issued in the form of lights or horns when there are limit value isolations. The built-in emergency battery guarantees maximum data security - even in the event of a power failure.

Both the system data and alarms can be viewed via the display of the Saveris base including GSM module at any time.

About applications


Scope of delivery

testo Saveris base including GSM module, radio frequency 868 MHz, including table base and wall bracket.

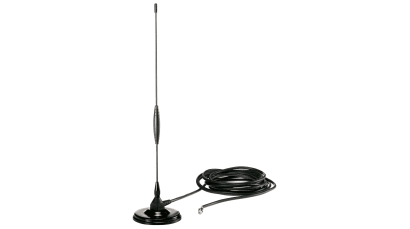

Caution: No mains units or antennas with magnetic feet are included in the scope of delivery.



General technical data

Dimensions

225 x 150 x 49 mm

Operating temperature

5 to +45 °C

Housing

Die-cast zinc plastic

Protection class

IP42

Radio frequency

868 MHz

GSM module

850 / 900 / 1800 / 1900 MHz not valid for Japan and South Korea

Alarm relay

max. 1 A, max. 30 W, max. 60/25 V DC/AC, NC or NO contact

Connectable radio probes

max. 15 probes can be directly connected via wireless interface, max. 150 total via wireless / Router / Converter / Ethernet / Extender, max. 450 channels

Display type

graphic Display

Display function

4 control keys

Power supply

6.3 V DC mains unit; alternatively via 24 V AC/DC plug-in/screw terminals, power consumption 4 W

Interface

USB, radio, Ethernet

Storage battery type

Li-ion battery (for data back-up and for emergency SMS if power supply fails)*

Storage temperature

-25 to +60 °C

Weight

Approx. 1510 g

*Wearing part

Ethernet probes

Temperature - NTC

Measuring range

-50 to +150 °C

Accuracy

±0.2 °C (-25 to +70 °C)

±0.4 °C (Remaining Range)

Resolution

0.1 °C

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.2 °C (0 to +30 °C)

0.5 °C Remaining Range

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±1 %RH (< 90 %RH) +0.7 % of mv at +25 °C

±1.4 %RH (> 90 %RH) +0.7 % of mv at +25 °C

0.03 %RH/K

Resolution

0.1 % / 0.1 °Ctd

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±2 %RH (< 90 %RH) at +25 °C

±3 %RH (> 90 %RH) at +25 °C

±0.03 %RH/K

Resolution

0.1 %RH / 0.1 °Ctd

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.2 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

see external probes

Resolution

0.1 % / 0.1 °Ctd

Temperature - Pt100

Measuring range

-200 to +600 °C

Accuracy

±0.1 °C (0 to +60 °C)

±0.2 °C (-100 to +200 °C)

±0.5 °C (Remaining Range)

Resolution

0.01 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range

-195 to +1350 °C

Accuracy

±0.5 °C or ±0.5 % of mv

Resolution

0.1 °C/TC type S 1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±0.5 °C or ±0.5 % of mv

Resolution

0.1 °C/TC type S 1 °C

Temperature - TC Type J (Fe-CuNi)

Measuring range

-100 to +750 °C

Accuracy

±0.5 °C t1 ±0.5 % of mv

Resolution

0.1 °Ct1TC type S 1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

0 to +1760 °C

Accuracy

±0.5 °C or ±0.5 % of mv

Resolution

0.1 °C/TC type S 1 °C

External NTC temperature probe

Temperature - NTC

Measuring range

-40 to +125 °C

Accuracy

±0.5 % of mv (100 to +125 °C)

±0.2 °C (-25 to +80 °C)

±0.4 °C Remaining Range

Reaction time

8 s

Temperature - NTC

Measuring range

-35 to +80 °C

Accuracy

±0.2 °C (-25 to +75 °C)

±0.4 °C (Remaining Range)

Reaction time

5 s

Temperature - NTC

Measuring range

-50 to +150 °C ¹⁾

Accuracy

±0.5 % of mv (+100 to +150 °C)

±0.2 °C (-25 to +74.9 °C)

±0.4 °C (Remaining Range)

Reaction time

8 s

1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

Temperature - NTC

Measuring range

-50 to +70 °C ¹⁾

Accuracy

±0.2 °C (-25 to +70 °C)

±0.4 °C (-50 to -25.1 °C)

Reaction time

60.0 s

1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

Temperature - NTC

Measuring range

-35 to +80 °C

Accuracy

±0.2 °C (-25 to +75.0 °C)

±0.4 °C (-35 to --25.1 °C)

±0.4 °C (+75 to +80 °C)

Reaction time

5 s

Temperature - NTC

Measuring range

-30 to +90 °C

Accuracy

±0.2 °C (0 to +70 °C)

±0.5 °C (Remaining Range)

Reaction time

190 s

Temperature - NTC

Measuring range

-50 to +80 °C

Accuracy

±0.2 °C (-25 to +80 °C)

±0.5 °C (-40 to -25.1 °C)

Reaction time

20 s

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.2 °C (-20 to +40 °C)

±0.4 °C (40.1 to +70 °C)

Reaction time

15 s

External probes TE

Temperature - TC Type K (NiCr-Ni)

Measuring range

-40 to +220 °C

Accuracy

Class 1

Reaction time

7 s

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50.0 to +400.0 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - TC Type K (NiCr-Ni)

Measuring range

-60 to +130 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +170 °C

Accuracy

Class 2 ¹⁾

Reaction time

150 s

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Magnetic probe (TC Type K)

Order Number: 0602 4892

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +400 °C

Accuracy

Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1300 °C

Accuracy

Class 1 ¹⁾

Reaction time

4 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

5 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +120 °C

Accuracy

Class 1 ¹⁾

Reaction time

90 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

20 s

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

External temperature probes Pt100

Temperature - Pt100

Measuring range

-85 to +150 °C

Accuracy

Class A

Reaction time

35 s

Temperature - Pt100

Measuring range

-50 to +400 °C

Accuracy

Class A (-50 to +300 °C)

Class B (Remaining Range) ¹⁾

Reaction time

12 s

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

Temperature - Pt100

Measuring range

-50.0 to 400.0 °C

Accuracy

Class A (-50 to +300 °C)

Class B (Remaining Range) ¹⁾

Reaction time

10 s

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

Humidity and temperature probes

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.3

Humidity - Capacitive

Measuring range

0 to +100 %RH

Accuracy

±2 %RH at +25 °C (2 to +98 %RH)

±0.03 %RH/K

Temperature - NTC

Measuring range

0 to +40 °C

Accuracy

±0.3 °C

Humidity - Capacitive

Measuring range

0 to +100 %RH

Accuracy

±2 %RH at +25 °C (2 to +98 %RH)

±0.08 %RH/K

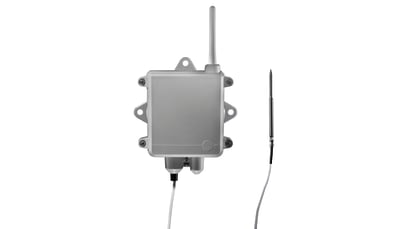

Radio probes

Temperature - NTC

Measuring range

-35 to +50 °C

Accuracy

±0.4 °C (-25 to +50 °C)

±0.8 °C (Remaining Range)

Resolution

0.1 °C

Temperature - NTC

Measuring range

-35 to +50 °C (Internal sensor)

-50 to +150 °C (External probe)

Accuracy

±0.4 °C (-25 to +50 °C) (Internal sensor)

±0.8 °C (Remaining Range) (Internal sensor)

±0.2 °C (-25 to +70 °C) (External probe)

±0.4 °C (Remaining Range) (External probe)

Resolution

0.1 °C

Temperature - NTC

Measuring range

-35 to +50 °C

Accuracy

±0.4 °C (-25 to +50 °C)

±0.8 °C (Remaining Range)

Resolution

0.1 °C

Temperature - NTC

Measuring range

-35 to +50 °C (Internal sensor)

-50 to +150 °C (External probe)

Accuracy

±0.4 °C (-25 to +50 °C) (Internal sensor)

±0.8 °C (Remaining Range) (Internal sensor)

±0.2 °C (-25 to +70 °C) (External probe)

±0.4 °C (Remaining Range) (External probe)

Resolution

0.1 °C

Temperature - NTC

Measuring range

-20 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %RH*

Accuracy

±3 %RH at +25 °C

±0.03 %RH/K

±1 digit

Resolution

0.1 % / 0.1 °Ctd

* Not for condensing atmosphere. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12h), please contact us via www.testo.com.

Temperature - NTC

Measuring range

-20 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %RH

Accuracy

±3 %RH at +25 °C

±0.03 %RH/K

±1 digit

Resolution

0.1 % / 0.1 °Ctd

* Not for condensing atmosphere. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12h), please contact us via www.testo.com.

Temperature - NTC

Measuring range

-20 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %RH*

Accuracy

±2 %RH (< 90 %RH) at +25 °C

±3 %RH (> 90 %RH) at +25 °C

±0.03 %RH/K

±1 digit

Resolution

0.1 % / 0.1 °Ctd

* Not for condensing atmosphere. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12h), please contact us via www.testo.com.

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.2 °C

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %RH

Accuracy

see probes

Resolution

0.1 % / 0.1 °Ctd

* Not for condensing atmosphere. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12h), please contact us via www.testo.com.

Temperature - Pt100

Measuring range

-200 to +600 °C

Accuracy

at +25 °C

±0.1 °C (0 to +60 °C)

±0.2 °C (-100 to +200 °C)

±0.5 °C (Remaining Range)

Temperature - Pt100

Measuring range

-200 to +600 °C

Accuracy

at +25 °C

±0.1 °C (0 to +60 °C)

±0.2 °C (-100 to +200 °C)

±0.5 °C (Remaining Range)

Resolution

0.10 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range

-195 to +1350 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type J (Fe-CuNi)

Measuring range

-100 to +750 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

0 to +1760 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

1 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range

-195 to +1350 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type J (Fe-CuNi)

Measuring range

-100 to +750 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

0.1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

0 to +1760 °C

Accuracy

±0.5 °C or 0.5 % of mv

Resolution

1 °C

Software and Accessories
