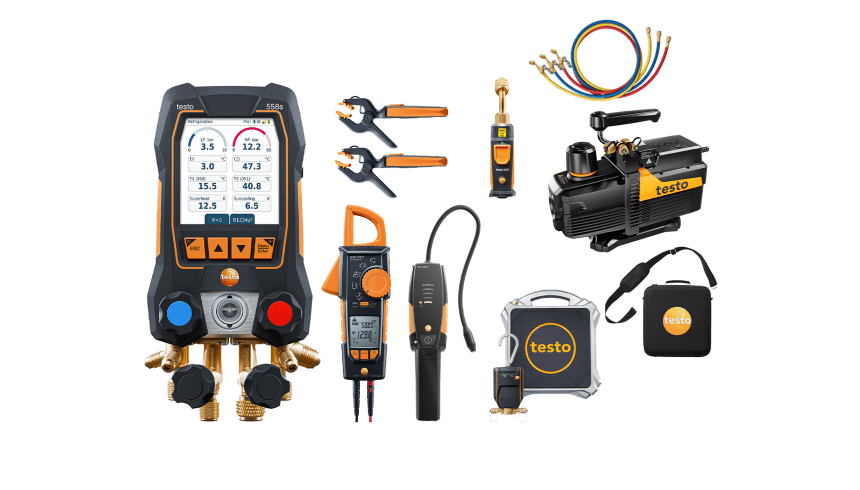

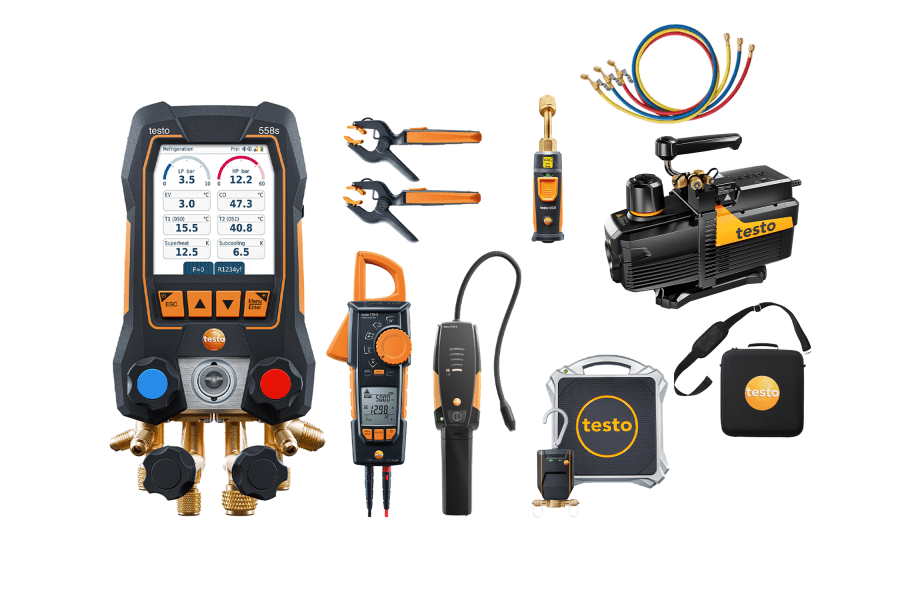

testo 558s Ultimate Refrigeration Kit

300564 5000 04

testo 558s Ultimate Refrigeration Kit

The testo 558s Ultimate Refrigeration Kit is the premier all-in-one solution for HVAC/R professionals, delivering a completely digital and wireless workflow for commissioning, servicing, and maintaining air conditioning and refrigeration systems. At the heart of the kit is the testo 558s Digital Manifold, featuring a user-friendly touchscreen display for intuitive control and on-the-spot analysis of pressures, superheat, and subcooling. The kit's other components, including the testo 115i Clamp Thermometers and the testo 552i Vacuum Probe, seamlessly connect to the manifold via Bluetooth, eliminating the need for cumbersome hoses and cables.

It includes every tool a HVAC/R professional needs, from pressure and temperature analysis to electrical troubleshooting and precise refrigerant charging, all in one kit.
Features like the digital manifold's real-time calculations and the refrigerant scale's auto-stop function ensure greater accuracy and efficiency, reducing the risk of errors.

: 0564 5581

testo 558s - Digital manifold with 4-way valve block and intuitive touchscreen

Intuitive app feel in your manifold, with touchscreen and clear visualization of readings

: 0560 2115 02

testo 115i - Clamp thermometer operated via smartphone

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

: 0564 2552

testo 552i - App-controlled wireless vacuum probe

Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen

: 0590 7703 02

testo 770-3 - Clamp meter with Bluetooth

Increased accuracy in the lower current range thanks to improved resolution

: 0564 1560

testo 560i - Digital refrigerant scale with Bluetooth

Wireless measurement of refrigerant weight and operation with Testo manifolds and testo Smart App via Bluetooth

: 0560 5600

Refrigerant valve with Bluetooth - Refrigerant valve with Bluetooth

Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with the digital refrigerant scale testo 560i (available separately or as a kit)

testo 558s - Digital manifold with 4-way valve block and intuitive touchscreen

0564 5581

Temperature

Temperature	Measuring range -50 to +150 °C
	Accuracy ±0.5 °C
	Resolution 0.1 °C
	Probe connection 2 x Plug-in (NTC)

Pressure measurement

Pressure measurement	Measuring range -1 to 60 bar
	Accuracy ±0.25 % fs
	Resolution 0.01 bar
	Probe connection 3 x 7/16" – UNF + 1 x 5/8'' – UNF
	Overload rel. (low pressure) 65 bar
	Overload rel. (high pressure) 65 bar

General technical data

General technical data	Weight 1.3 kg
	Dimensions 229 x 112.5 x 71 mm
	Operating temperature -20 to +50 °C
	Protection class IP54
	Auto-off instrument 10 min
	Battery life ≤ 70 h with backlighting and Bluetooth®
	Battery type Built-in rechargeable battery: LI batttery 18650; 3x AA; Replaceable battery: 3 alkaline batteries AA
	Display type capacitive touch display
	Interface Bluetooth 5.0 ®
	Radio range 150 m
	Storage temperature -20 to +60 °C

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Temperature - NTC	Measuring range -40 to +150 °C
	Accuracy ±1.3 °C (-20 to +85 °C)
	Resolution 0.1 °C

General technical data

General technical data	Weight 127.4 g
	Dimensions 183 x 90 x 30 mm
	Operating temperature -20 to +50 °C
	Product-/housing material Plastic
	System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
	Product colour black/orange
	Battery life 150 h
	Battery type 3 AAA micro batteries
	Data transfer Bluetooth®
	Radio range 100 m
	Refrigerant A2L / A3 compatibel
	Storage temperature -20 to +60 °C

testo 552i - App-controlled wireless vacuum probe

0564 2552

Absolute Pressure

Absolute Pressure	Measuring range 0 to 26.66 mbar / 0 to 20000 micron
	Accuracy ±(1 ±10 micron + 10 % of mv (100 to 1000 micron)
	Resolution 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) /
	Overload absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi)

General technical data

General technical data	Weight 142 g
	Dimensions 150 x 32 x 31 mm (LxWxH)
	Operating temperature -10 to +50 °C
	Protection class IP54
	System requirements requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
	Product colour black/orange
	Auto-off 10 min*
	Battery type 3 AAA micro batteries
	Battery life 39 h
	Connection 7/16“ UNF
	Interface Bluetooth® 4.2
	Storage temperature -20 to +50 °C
* when not connected via Bluetooth

testo 770-3 - Clamp meter with Bluetooth

0590 7703 02

Temperature - TC Type K (NiCr-Ni)

Temperature - TC Type K (NiCr-Ni)	Measuring range -20 to +500 °C
	Accuracy ±1 °C (0 to +100 °C)
	Resolution 0.2 °C

DC voltage

DC voltage	Measuring range 1.0 to 1000.0 V
	Resolution max. 1 mV
	Accuracy ± (0.8 % of mv + 3 Digit)

AC voltage

AC voltage	Measuring range 1.0 mV to 1000.0 V
	Resolution max. 1 mV
	Accuracy ± (1 % of mv + 3 Digit)

DC current

DC current	Measuring range 0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
	Resolution 0.1 (clamp) 0.1 (measuring cables)
	Accuracy ± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

AC current

AC current	Measuring range 0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
	Resolution 0.01 A (clamp) 0.1 μA (measuring cables)
	Accuracy ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance

Resistance	Resolution max. 0.01 Ohm
	Measuring range 0.10 to 60.0 MOhm
	Accuracy ± (1.5 % of mv + 3 Digit)

Capacitance

Capacitance	Resolution max. 0.01 nF
	Measuring range 0.001 μF to 60000.00 μF
	Accuracy ± (1.5 % of mv + 5 Digit)

Frequency

Frequency	Resolution max. 0.1 Hz
	Measuring range 0.00 Hz to -10 kHz
	Accuracy ± (1 % of mv + 1 Digit)

Active Power

Active Power	Measuring range 0.1 W to 600 kW
	Accuracy ± (5 % of mv + 5 Digit)
	Resolution 0.1 W

Reactive Power

Reactive Power	Measuring range 0.1 to 600.0 kvar
	Accuracy ± (10 % of mv + 5 Digit)
	Resolution 0.1 var

Apparent Power

Apparent Power	Measuring range 0.1 VA to 600.0 kVA
	Accuracy ± 1 Digit
	Resolution 0.1 VA

Direct current DC Voltage

Direct current DC Voltage	Measuring range 0.1 W to 600.0 kW
	Accuracy ± 1 Digit
	Resolution max. 0.1 W

Power Factor

Power Factor	Measuring range -1.00 to +1.00
	Accuracy ± (10 % of mv + 5 Digit)
	Resolution 0.01

General technical data

General technical data	Operating humidity 0 to 80.0 %RH
	Weight 378 g
	Dimensions 249 x 96 x 43 mm
	Operating temperature -10 to +50 °C
	Connectable probes 1 x temperature probe (adapter required for type K thermocouples)
	Product colour Black
	System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
	Standards EN 61326-1; EN 61010-2-032; EN 61140
	Battery type 3 AAA micro batteries
	Display size 2 lines
	Display type LCD (Liquid Crystal Display)
	Interface 2 measuring jacks
	Storage temperature -15 to +60 °C
	Overvoltage Category CAT IV 600V; CAT III 1000V
	Authorizations CSA; CE
	Internal_resistance 11 MOhm (AC / DC)

Instrument Measurement Functions

Instrument Measurement Functions	Diode test yes
	Continuity testing yes
	Display ligthing yes
	Hold yes
	MinMax yes
	Power Measurement yes
	Temperature measurement with adapter yes
	True RMS yes
	Inrush current measurement yes
	Bluetooth yes
	Display (counts) 6,000
	Autom. measurement parameter detection yes
	μA current measuring range yes

testo 560i - Digital refrigerant scale with Bluetooth

0564 1560

General technical data

General technical data	Operating humidity 0 to 80 %RH
	Weight 4.36 kg (incl. batteries and bag)
	Measuring range 0 to 100 kg
	Accuracy Operating temperature +22 °C: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg) ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)
	Resolution 0.01 kg
	Dimensions 310 x 287 x 58 mm (LxWxH)
	Operating temperature -10 to +50 °C
	Protection class IP44
	Battery life > 70 h at +25 °C
	Battery type 4 x type AA batteries
	Interface Bluetooth® 4.2
	Radio range 30 m
	Storage temperature -10 to +50 °C

Refrigerant valve with Bluetooth - Refrigerant valve with Bluetooth

0560 5600

General technical data

General technical data	Operating humidity 0 to 80 %RH
	Weight 570 g (incl. batteries)
	Dimensions 95 x 119 x 47 mm (LxWxH)
	Operating temperature -10 to +50 °C
	Protection class IP54
	Product colour black/orange; silver
	Maximum working pressure 35 bar
	Battery type 9 V (6LR61)
	Battery life >60 hrs + 3000 valve operations
	Interface Bluetooth® 4.2
	Radio range 50 m
	Storage temperature -10 to +50 °C

testo 565i - Smart vacuum pump for automated evacuations with integrated hold test, 7 CFM (198 l/min)

0564 5652 02

General technical data

General technical data	Weight 12 kg
	Operating temperature +5 to +40 °C
	Standards Oil compatibility: ISO VG 46
	Connection 1/4 SAE, 3/8 SAE,1/2 SAE
	Interface Bluetooth 5.0 ®
	Radio range 30 m
	Ultimate vacuum 15 micron
	Pump type Rotary vane pump, two-stage
	Flow rate 7 CFM / 198 l/min

testo 316-3 - Refrigerant Leak Detector

0563 3163

General technical data

General technical data	Operating humidity 20 to 80 %RH
	Weight 500 g (incl. batteries)
	Dimensions 270 x 60 x 61 mm
	Operating temperature -18 to +50 °C
	Product colour Black
	Detectable R22; R134a; R404A; R410A; R507; R438A; and all CFCs, HFCs, and HCFCs
	Life-time sensor Approx. 80 to 100 h (corresponds to approx. 1 year)
	Sensitivity 4 g/a (0.15 oz/a)
	Standards EN 14624:2012; SAE J1627
	EU-/EG-guidelines 2004/108/EG
	Battery type 2 x D
	Battery life 16h permanent operation
	Storage temperature 0 to +50 °C

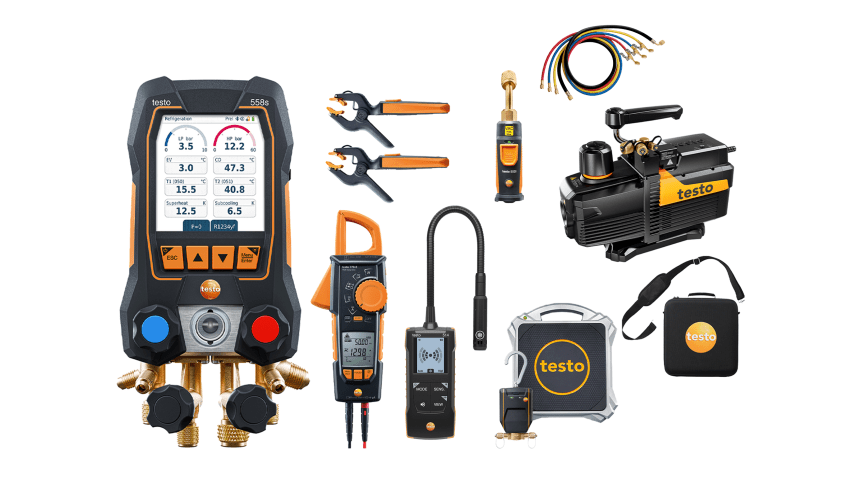

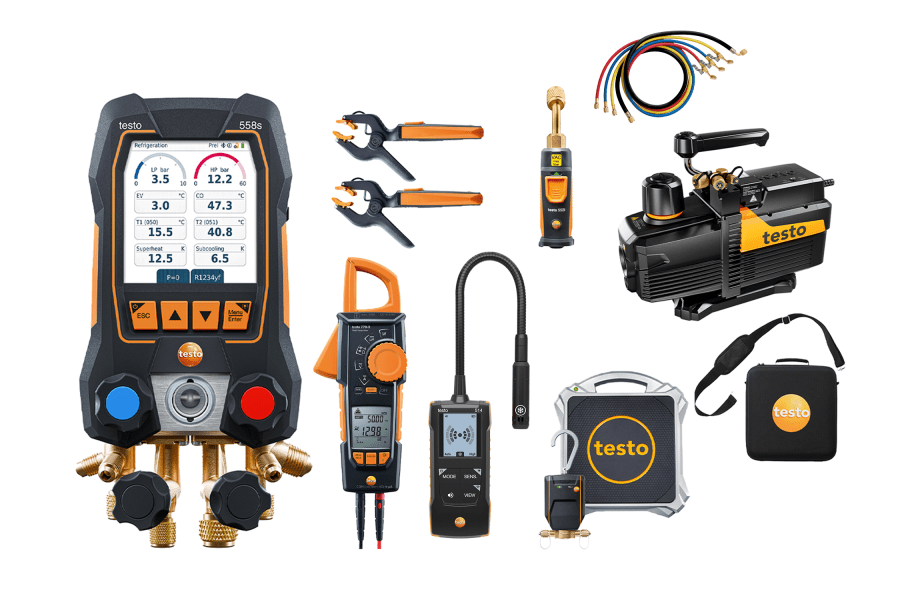

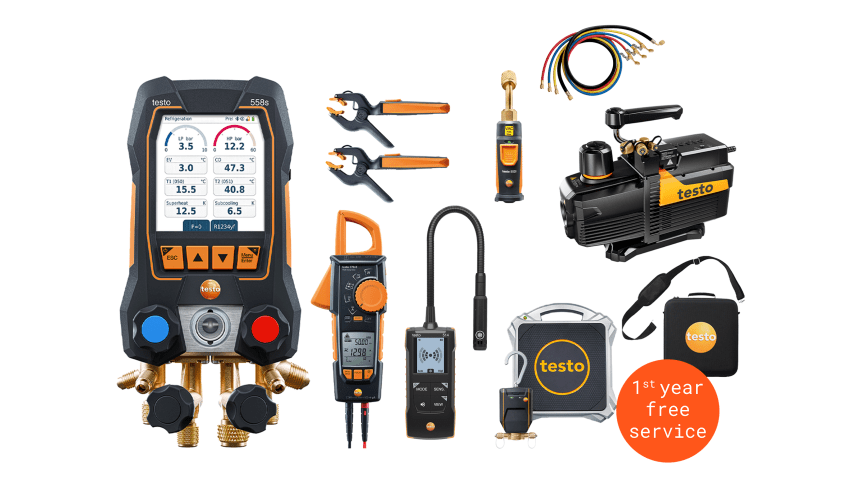

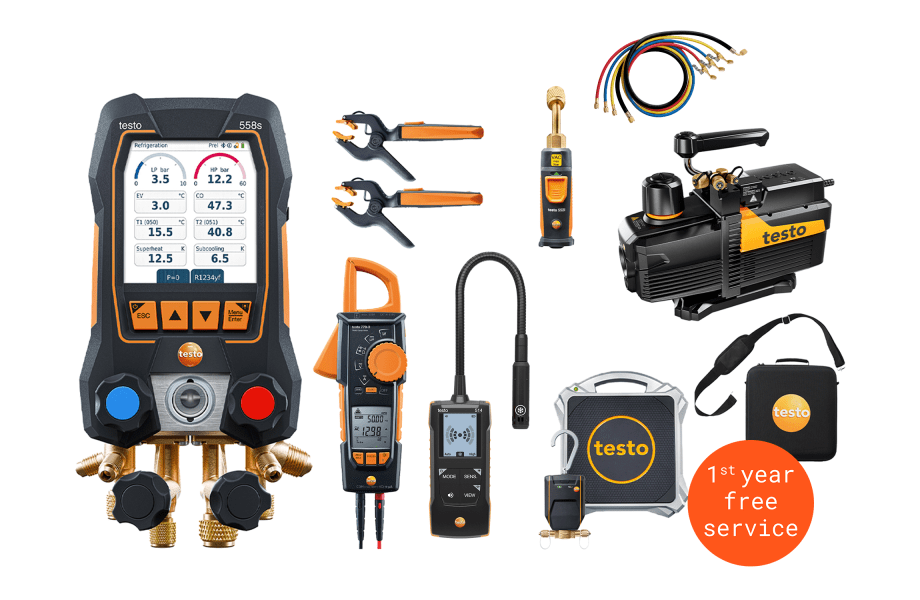

1 x testo 558s Digital Manifold

2 x testo 115i Clamp Thermometer

1 x testo 552i Vacuum Probe

1 x testo 770-3 Clamp Meter

1 x testo 560i Refrigerant Scale

1 x testo Refrigerant Valve

1 x testo 565i Vacuum Pump

1 x 316-3 Refrigerant Leak Detector

1 x 3-piece hose set
