Mini thermometer

Order-Nr.  0560 1109

  • Perfect for checking surface temperatures

  • Extra wide measuring tip for placing on a flat measuring point

  • Measurement of high temperatures up to +300 °C

  • Many areas of application: heating engineering, sanitation sector, and air conditioning/ventilation/refrigeration technology

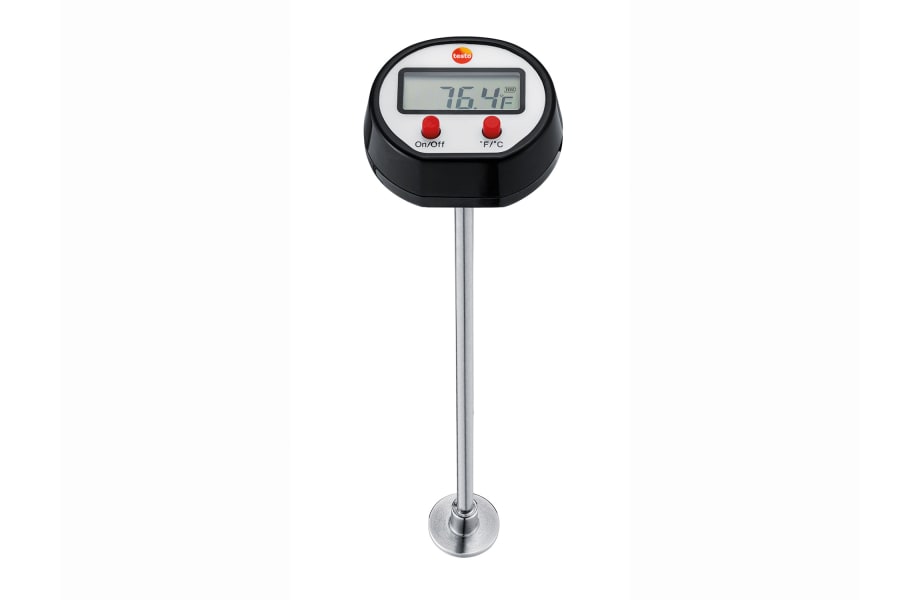

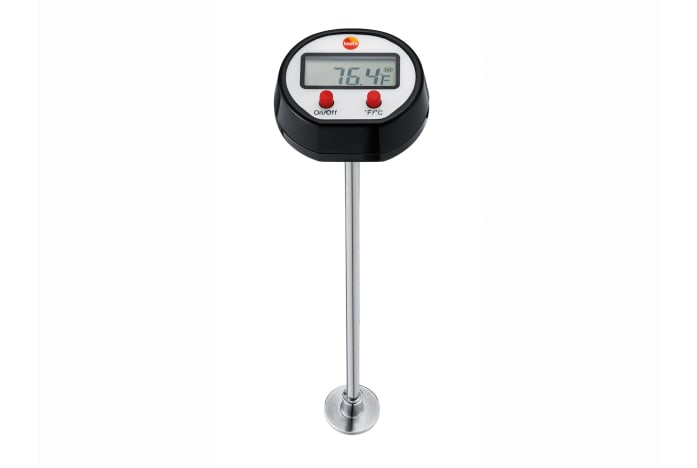

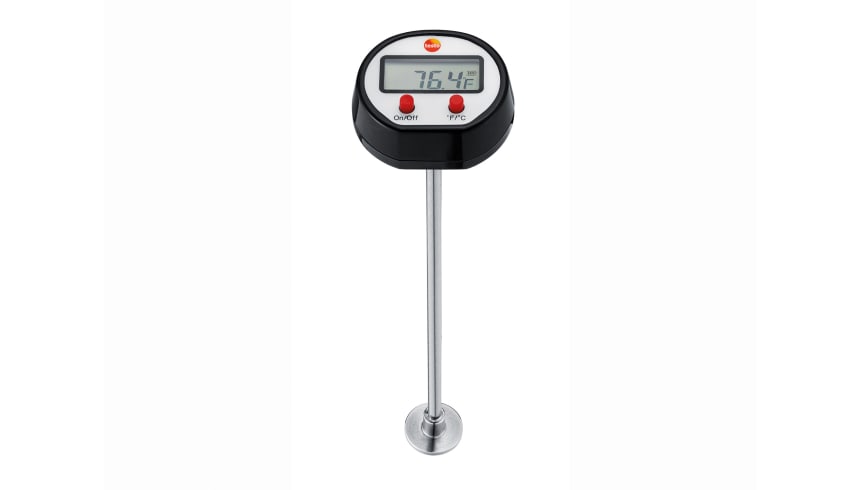

Mini surface thermometer with battery

Product Description

Affordable. The surface thermometer has a widened measuring tip making it particularly suitable for surface measurements.



Delivery Scope

Mini surface thermometer including batteries.



Temperature

Measuring range

-58° to 572 °F / -50 to +300 °C

Accuracy

±2 °F (-22° to 482.0 °F) / ±1 °C (-30 to +250.0 °C)

±4 °F (Remaining Range) / ±2 °C (Remaining Range)

Resolution

0.1 °F (-3.8 to 391.8° °F) / 0.1 °C (-19.9 to +199.9 °C)

1.0 °F (Remaining Range) / 1.0 °C (Remaining Range)

General technical data

Dimensions

6 t1 2 t2 1 (t4) / 145 t1 45 t2 25 (t4)

Operating temperature

14° to 122 °F / -10 to +50 °C

Housing

ABS

Product colour

Black

Length probe shaft

4.724 in. / 120 mm

Length probe shaft tip

0.394 in. / 10 mm

Diameter probe shaft

0.138 in. / 3.5 mm

Diameter probe shaft tip

0.591 in. / 15 mm

Battery type

Button cell LR44

Display type

LCD

Display size

one-line

Storage temperature

-4° to 158 °F / -20 to +70 °C

Accessories
