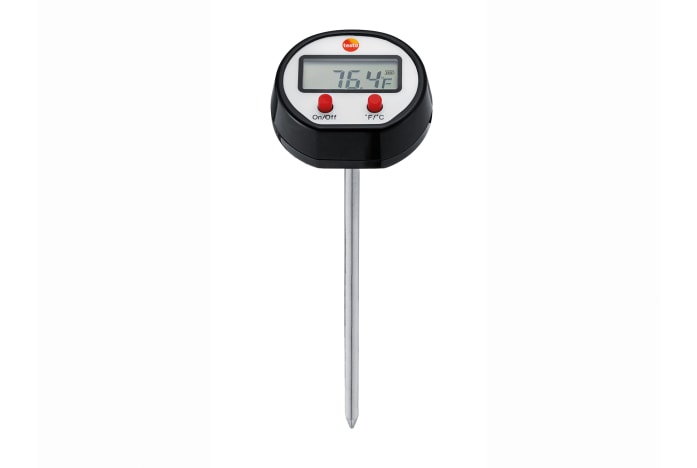

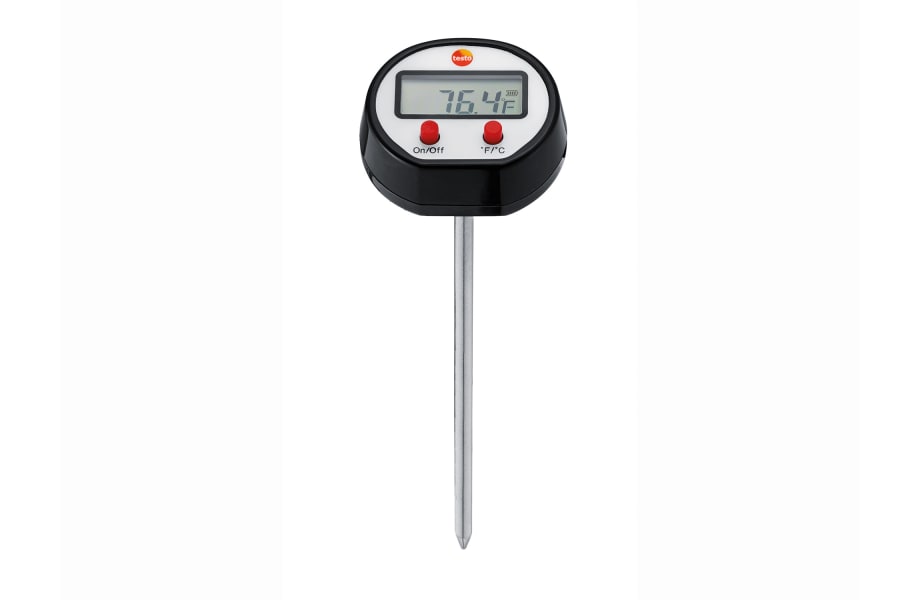

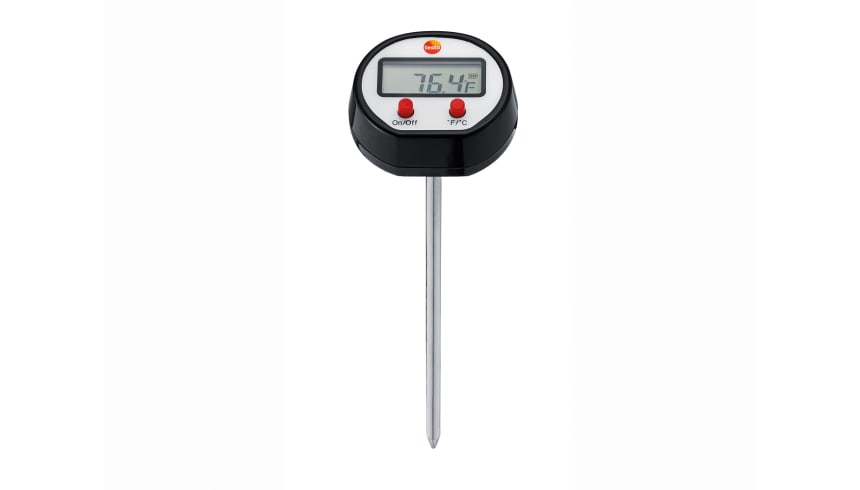

Mini thermometer

Order-Nr.  0560 1110

  • Large, easy-to-read display

  • Battery level display

  • Switchover from ºC to ºF at the touch of a button

  • Measurements from -50 to +150 ºC

Mini thermometer, 133 mm long, up to +150°C

Product Description

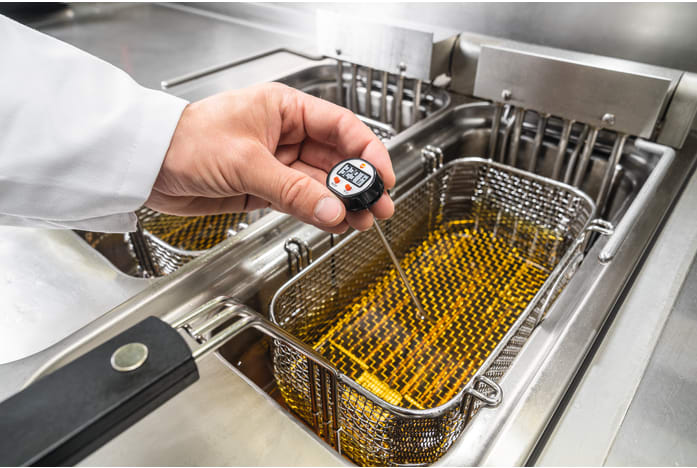

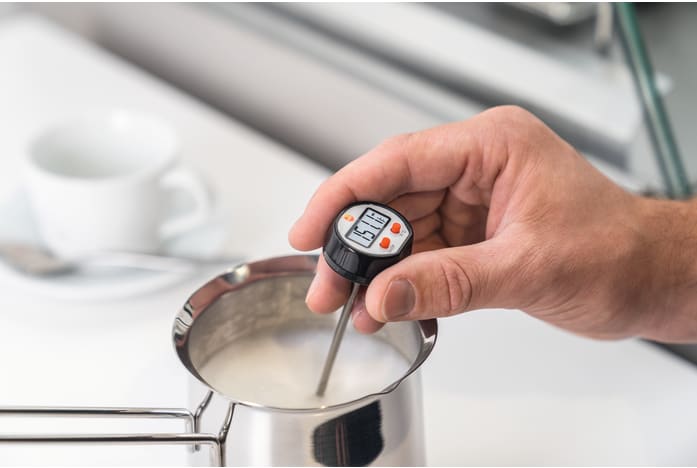

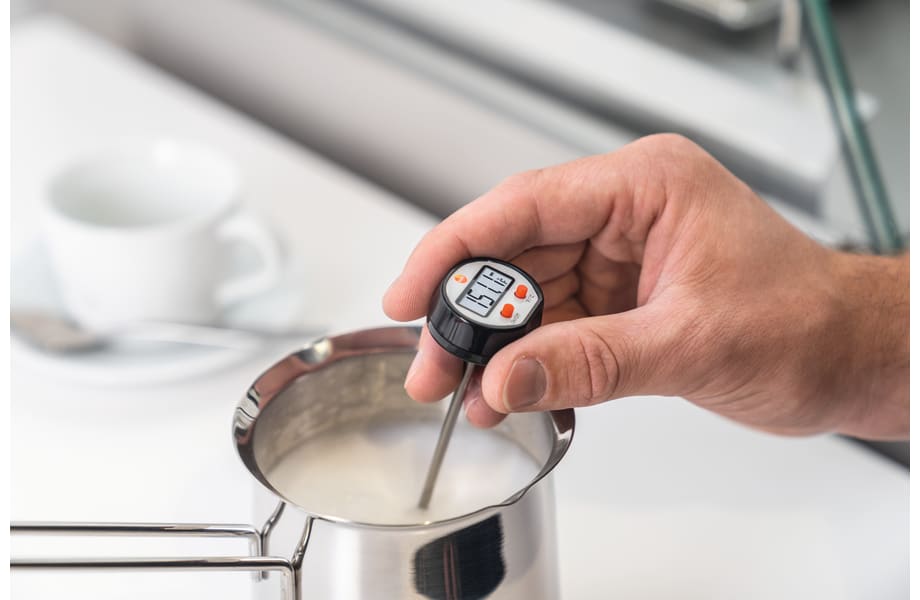

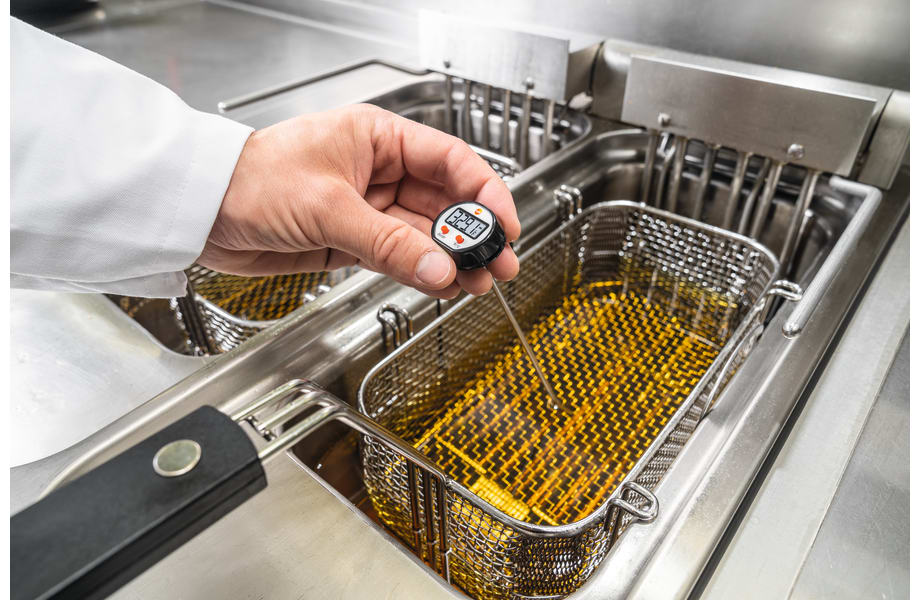

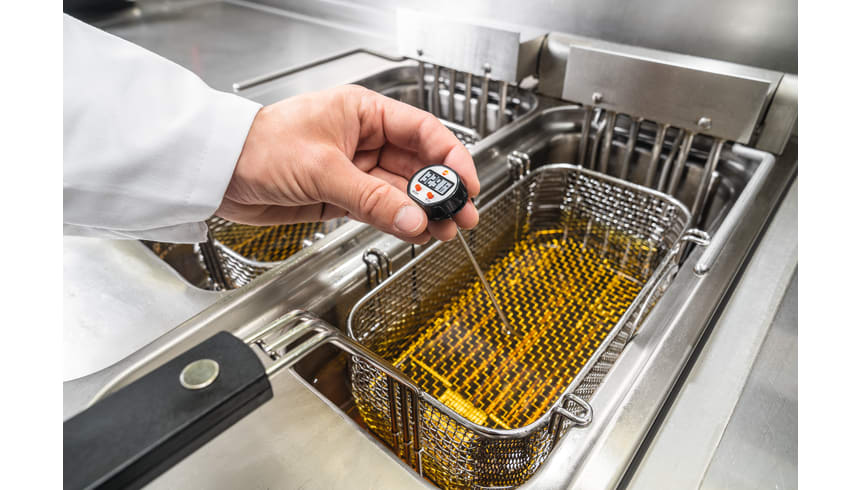

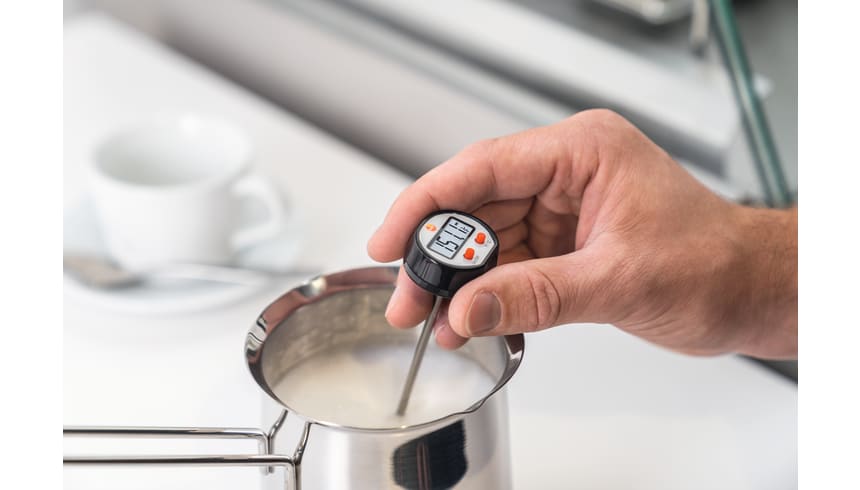

The quick-action immersion/penetration thermometer is ideal for measuring the temperature in air, soft or powdery substances and liquids.



Delivery Scope

Mini penetration thermometer, including protective tube with integrated clip, batteries and calibration protocol.
Temperature

Measuring range

-58° to 302 °F / -50 to +150 °C

Accuracy

±2 °F (14° to 211.8 °F) / ±1 °C (-10 to +99.9 °C)

±4 °F (-22° to 13.8 °F) / ±2 °C (-30 to -10.1 °C)

±2 % of mv (212° to 302 °F) / ±2 % of mv (+100 to +150 °C)

Resolution

0.1 °F (-3.8 to 302.0° °F) / 0.1 °C (-19.9 to +150 °C)

1.0 °F (Remaining Range) / 1 °C (Remaining Range)

General technical data

Dimensions

5.8 x 1.4 x 0.9 in. (LxWxH) / 147 x 35 x 23 mm (LxWxH)

Operating temperature

14° to 122 °F / -10 to +50 °C

Housing

ABS

Product colour

Black

Length probe shaft

4.882 in. / 124 mm

Length probe shaft tip

0.472 in. / 12 mm

Diameter probe shaft

0.138 in. / 3.5 mm

Diameter probe shaft tip

0.063 in. / 1.6 mm

Battery type

Button cell LR44

Display type

LCD

Display size

one-line

Storage temperature

-4° to 158 °F / -20 to +70 °C

Weight

0.70 oz. / 20 g
