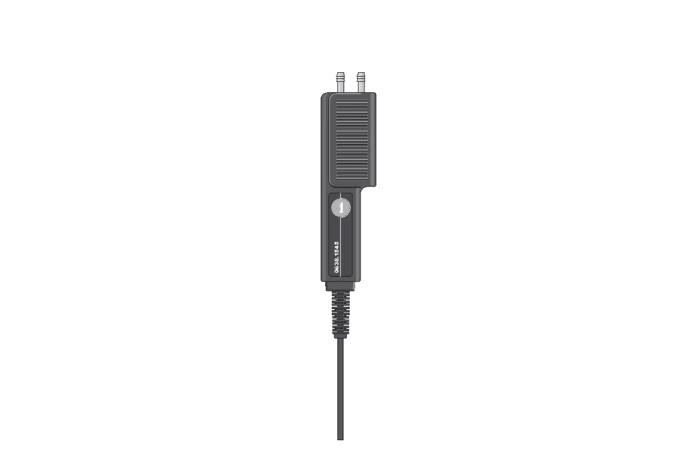

Pressure probe 100 hPa - Pressure probe, 100 hPa (differential pressure)

Order-Nr. 0638 1545

Where to buy

Differential pressure measurement
Flow velocity measurement in combination with a Pitot tube
Handy probe
Measuring range: 0 to +100 hPa

Pressure probe 100 hPa

Details

Product Description

Use the pressure probe to determine differential pressures and flow velocities (in combination with a Pitot tube). Both Prandtl Pitot tubes (Ø 7 mm) and straight Pitot tubes (Ø 8 mm) can be used for flow measurement.

Pressure plays an important role as a measurement parameter, particularly in power and air conditioning technology, as well as in industrial process technology. The difference between the static pressures is measured in the course of acceptance test measurements to check the pressure drop of built-in components (e.g. air filters).

Delivery Scope

Differential pressure probe, 100 hPa, with fixed cable.

Technical Data

Differential Pressure
Measuring range	0 to +40 InH₂O / 0 to +100 hPa
Accuracy	±0.0 InH₂O (+0 to +8 InH₂O) / ±0.1 hPa (+1 to +20 hPa) ±0.5 % of mv (+8 to +40 InH₂O) / ±0.5 % of mv (+20 to +100 hPa)
Overload	80 InH₂O / 200 hPa

Differential Pressure

Measuring range

0 to +40 InH₂O / 0 to +100 hPa

Accuracy

±0.0 InH₂O (+0 to +8 InH₂O) / ±0.1 hPa (+1 to +20 hPa)

±0.5 % of mv (+8 to +40 InH₂O) / ±0.5 % of mv (+20 to +100 hPa)

Overload

80 InH₂O / 200 hPa

General technical data
Operating temperature	32.0° to 122.0 °F / 0 to +50 °C
Cable length	4.9 ft. / 1.5 m
Storage temperature	-4.0° to 158.0 °F / -20 to +70 °C
